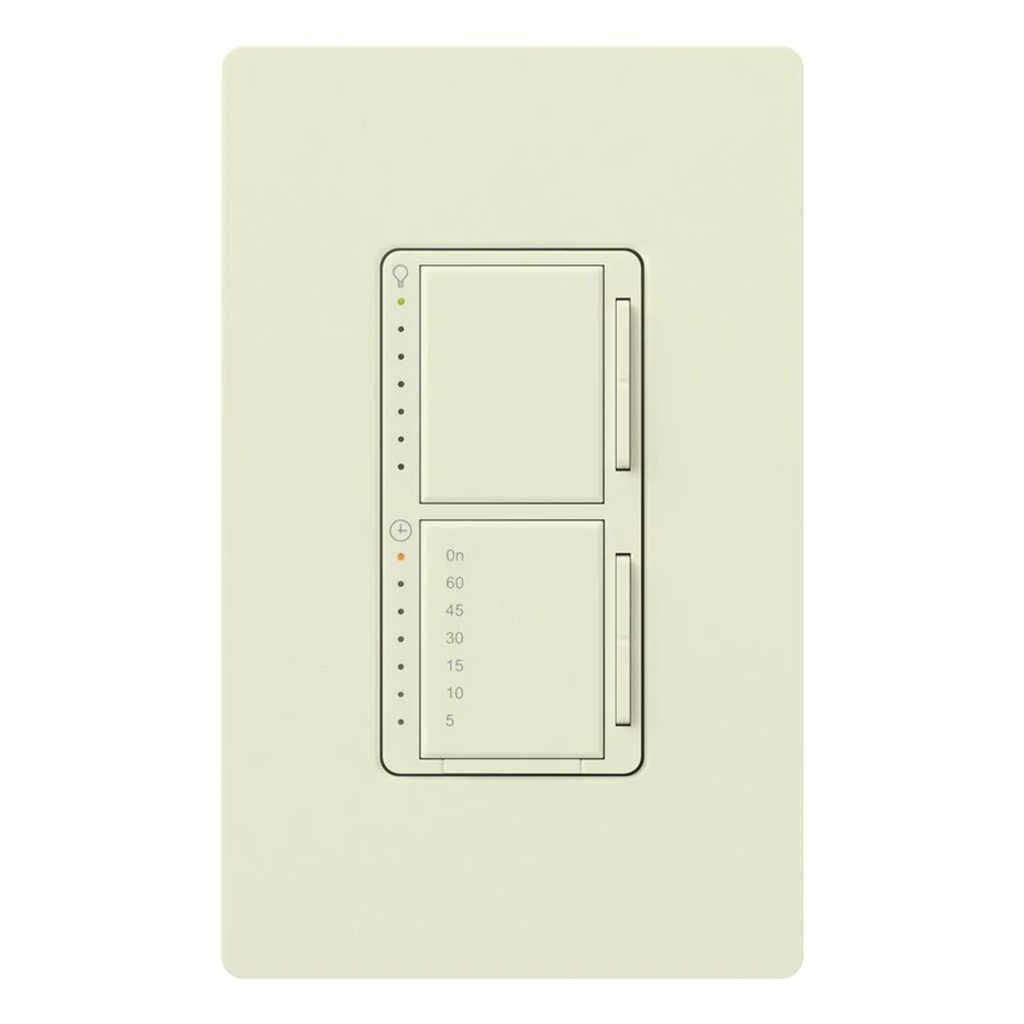

Product image for Lutron MA-L3T251-BI MA DIM/TIM 1H 300/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Lutron MA-L3T251-BI MA DIM/TIM 1H 300/

Manufacturer: Lutron | Catalog # MA-L3T251-BI | Cooper Electric Part # 683341
$89.78/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Controls 300 W incandescent or halogen loads and rated for 2.5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads or general-purpose fans. Dimmer (top) Tap on to preset light level; tap off. Tap twice for full on. Touch rocker to adjust light level. Dimmer advanced programming features available. Timer switch (bottom) Tap on to start timer; tap off; tap twice for untimed on. Touch rocker to adjust countdown time from 5-60 min. One minute warning before lights go off. Top LED is full on with no timer action. Single location only. Timer advanced programming features available.

Technical Information

Actuator
Tapswitch
Amperage
2.5 Amp
Applications
Lighting
Connection Type
Screw-Type Terminals
Contact Configuration
N-O
Contact Rating
2.5 A
Enclosure
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F

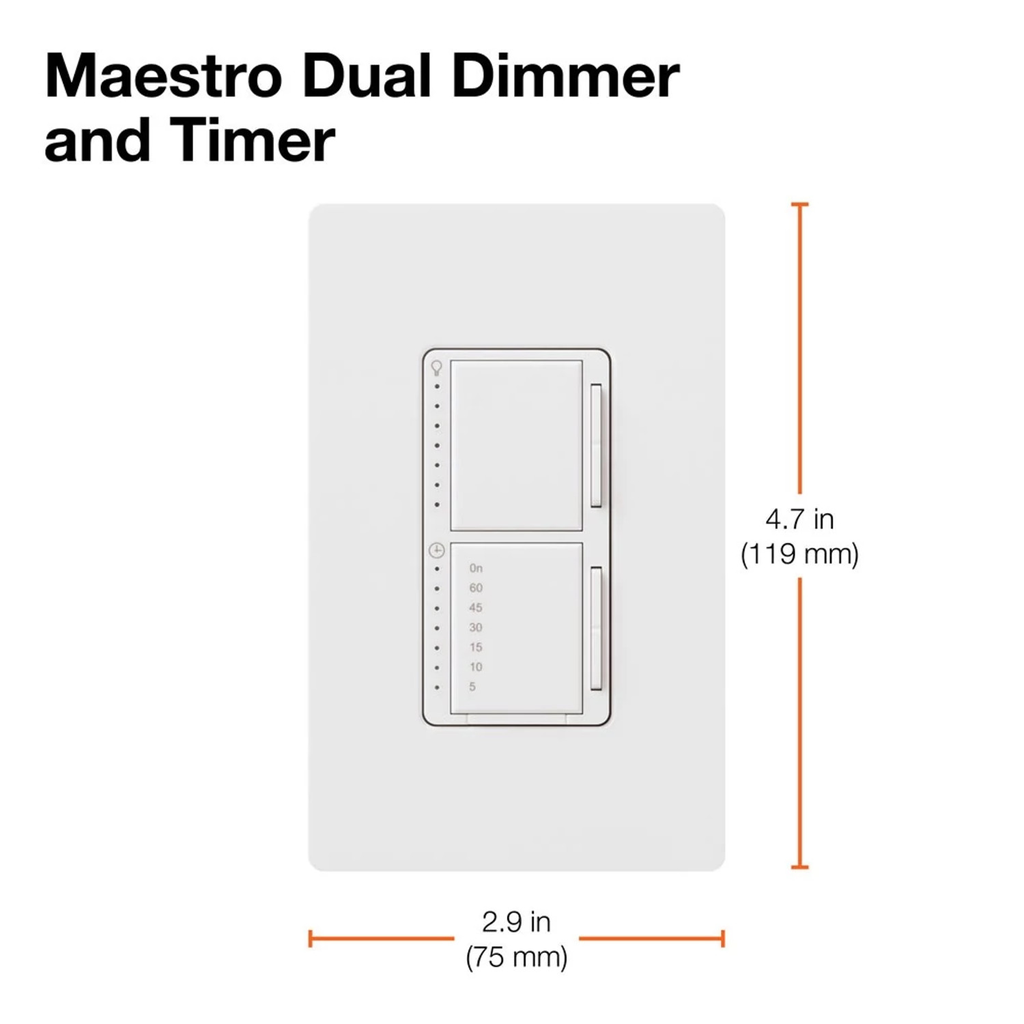

Size
2.94 in
Standard
UL CUL NOM
TC Connection
Screw terminal
Type
Dual Digital-fade Dimmer/countdown Timer Control Switch (two Loads),Single-pole
Voltage
120 Volt
Wattage
300 Watt

Manufacturer Information

Brand
Maestro
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557289764
Color
Biscuit
Environmental Conditions
0 To 90% Humidity,Non-condensing
Finish
Satin
GTiN
00027557289764
Product UPC
02755728976

Certifications and Compliance

Country of Origin
Mexico
Features
  • Includes (1) Lutron Maestro Dual Dimmer and Timer Switch; Satin Finish
  • Dimmer is rated for up to 300W Incandescent/Halogen bulbs
  • Timer switch is rated up to 2.5A general purpose fans, 300W ELV/Incandescent/Halogen bulbs, or 250W MLV loads
  • Product only works with incandescent and halogen bulbs; 40W minimum load
  • No Neutral Required; 120v
  • Single Pole Only; Screw Terminal or Push-in installation
  • Tap once to toggle light or fan ON/OFF, Double-tap to turn lights on to full intensity; Dimmer portion allows for press & hold for delayed fade-to-off
  • Raise/Lower button on dimmer brighten or dim light, Raise/Lower button on timer increase or decrease time (5, 10, 15, 30, 45, and 60-minute settings available)
  • Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Controls 300 W incandescent or halogen loads and rated for 2.5 A incandescent/halogen, magnetic low-voltage, electronic low/voltage, LED/CFL, or fluorescent loads or general purpose fans
  • Dimmer (top) Tap on to preset light level; tap off
  • Tap twice for full on
  • Touch rocker to adjust light level
  • Dimmer advanced programming features available
  • Timer switch (bottom) Tap on to start timer; tap off; tap twice for untimed on
  • Touch rocker to adjust countdown time from 5-60 min
  • One minute warning before lights go off
  • Top LED is full on with no timer action
  • Single location only
  • Timer advanced programming features available.
Standards and Certifications
  • UL
  • CSA
  • NOM
  • cUL
