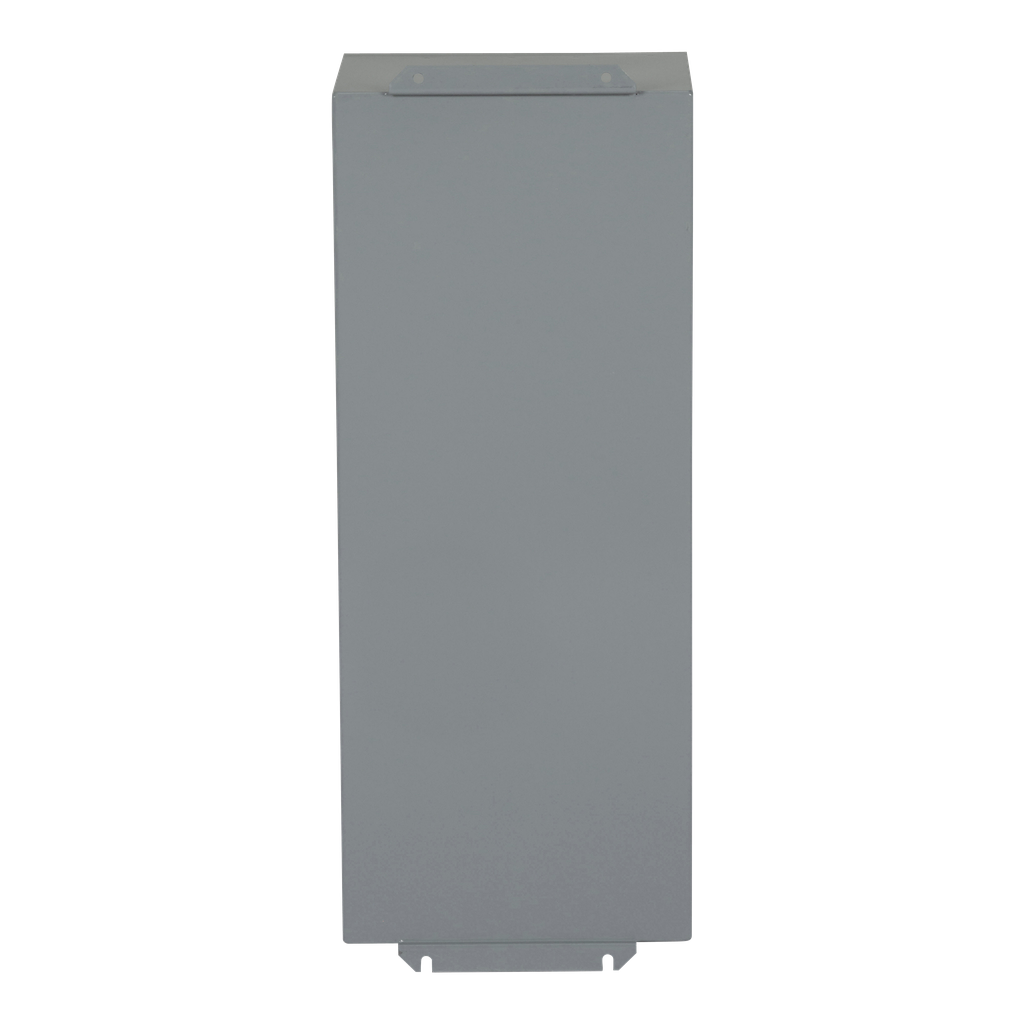

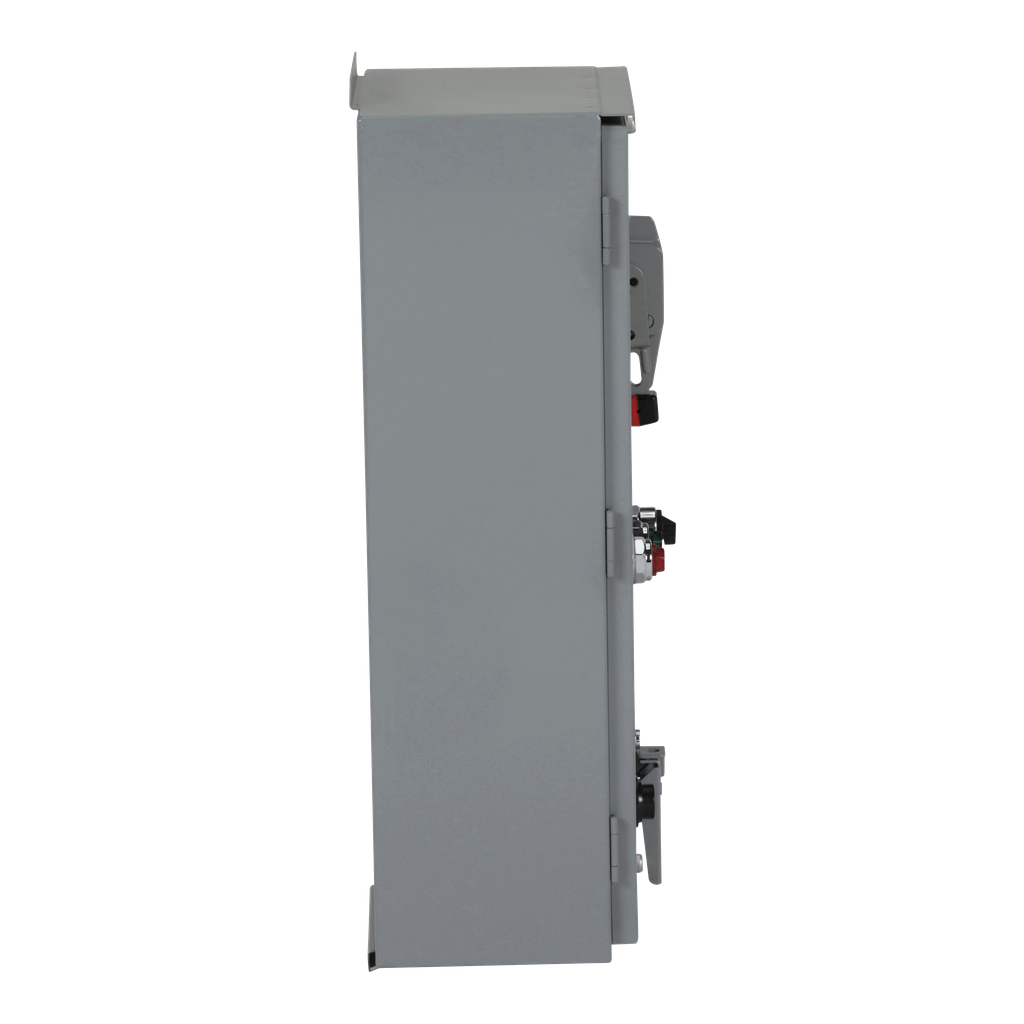

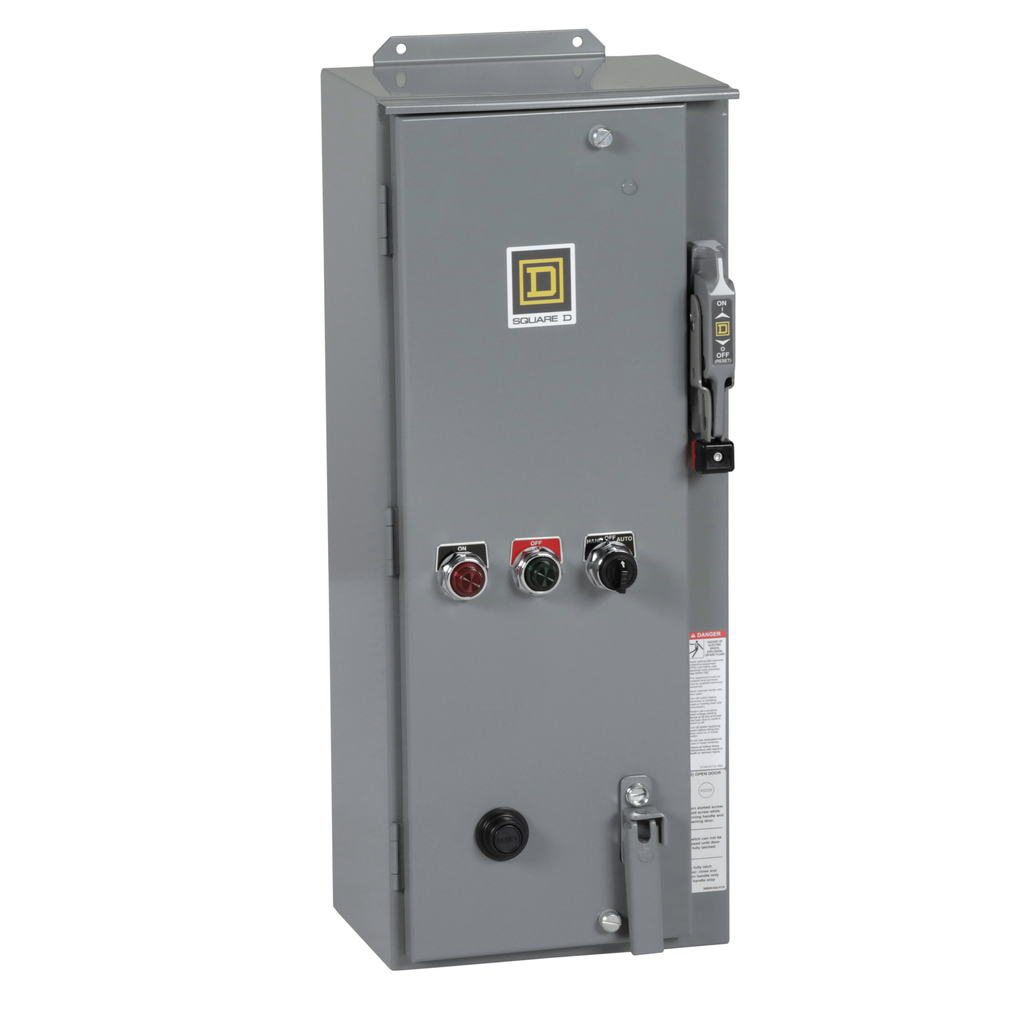

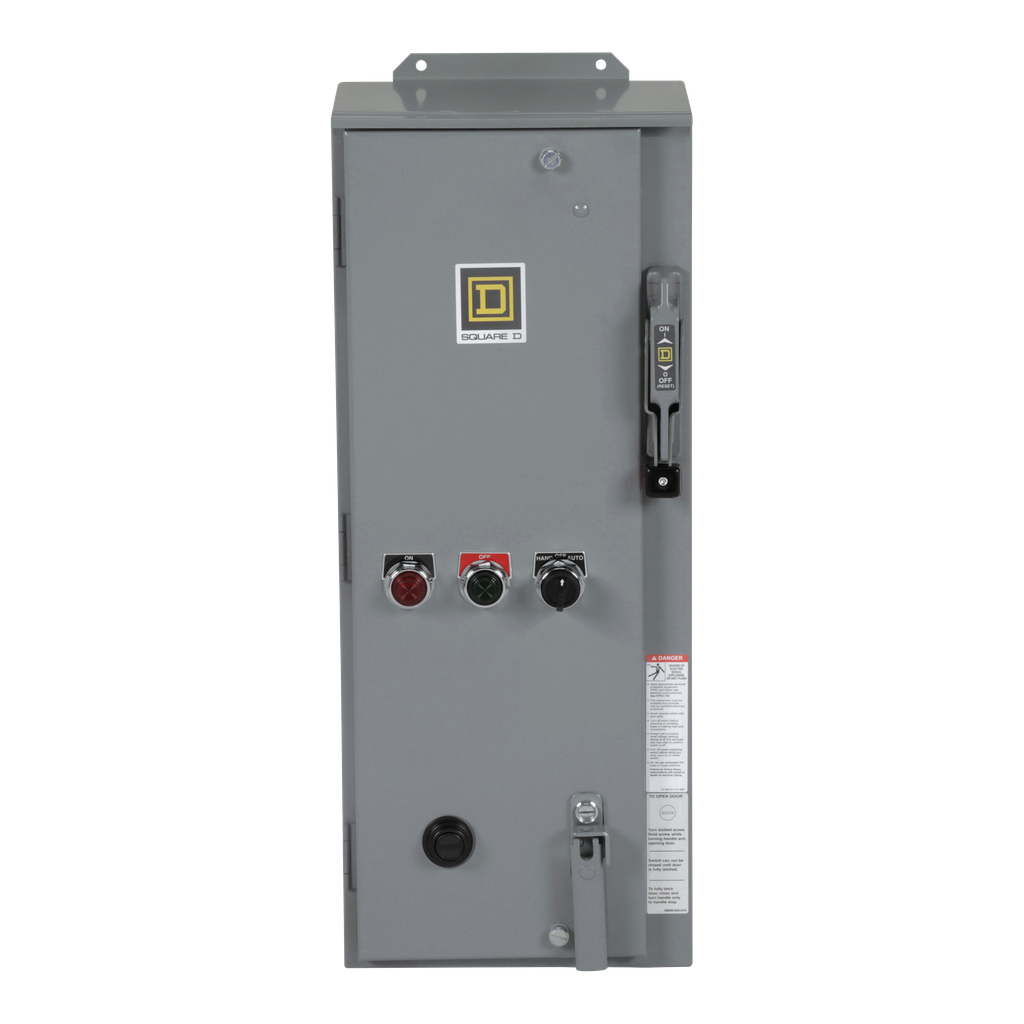

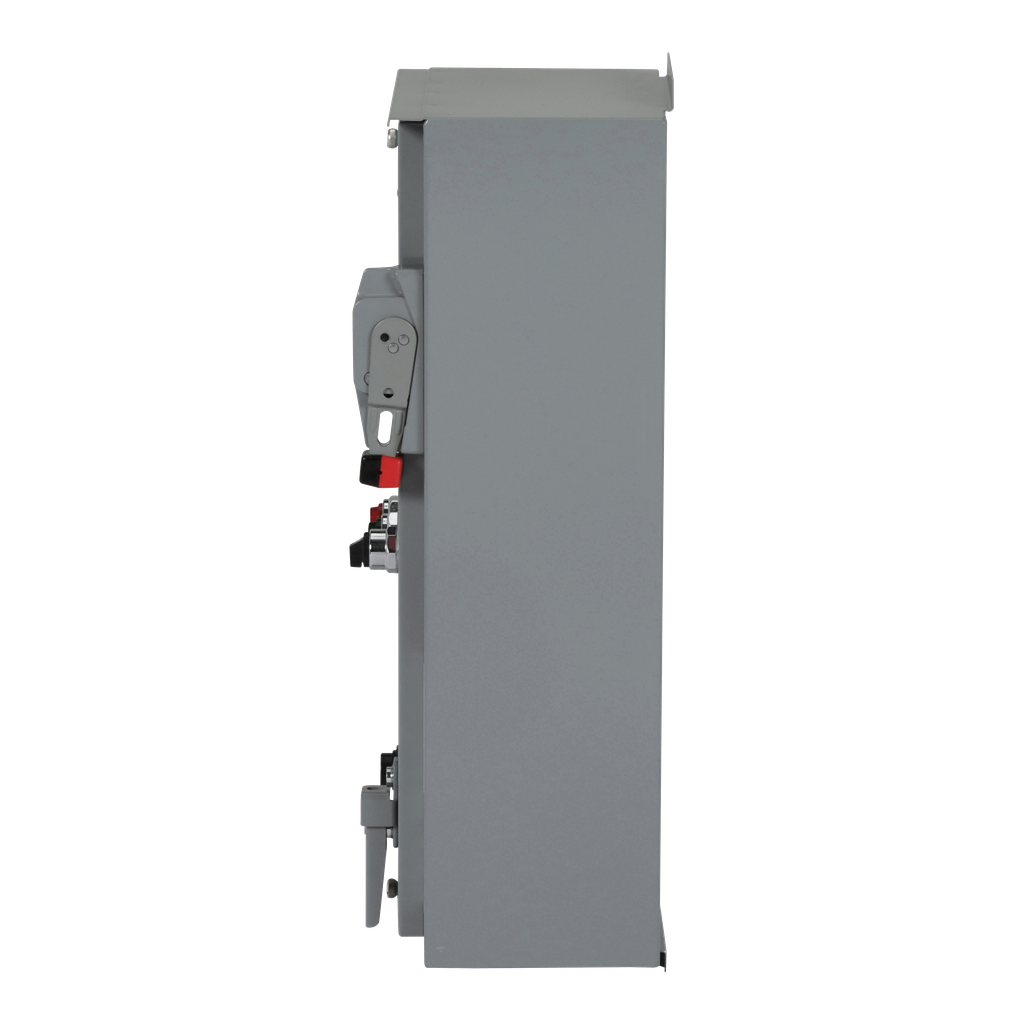

SQD 8538SDASP1 Non-Rever. Combo Sta

Manufacturer: Square-D / Schneider | Catalog # 8538SDASP1 | Cooper Electric Part # 682757
$1,902.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Non-Rever. Combo Starter Size 2, 3P, Melting Alloy Overload, NEMA 12 +Options

Technical Information

Amperage
45 Amp
Contact Configuration
2 NO + 2 NC
Disconnect Type
Fusible disconnect switch H and K, 60 A, electrical SPDT
Enclosure
NEMA 12 PAINTED SHEET STEEL AND WITH EXTERNAL RESET
Line Rated Current
45 A
NEMA Size
2
Number of Poles
3 Pole
Reset Type
MELTING ALLOY 3 THERMAL UNITS
Size
10.5 IN,27.75 IN,3.25 IN,9.59 IN
Type
S
Voltage
600 VAC

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901692188
Environmental Conditions
DUST TIGHT AND DRIP TIGHT (INDOOR)
GTiN
00785901692188
Product UPC
78590169218

Dimensions

Depth
9.59 Inch
Height
27-3/4 Inch
Length
3-1/4 Inch
Warranty Length
18 mth
Width
10.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
