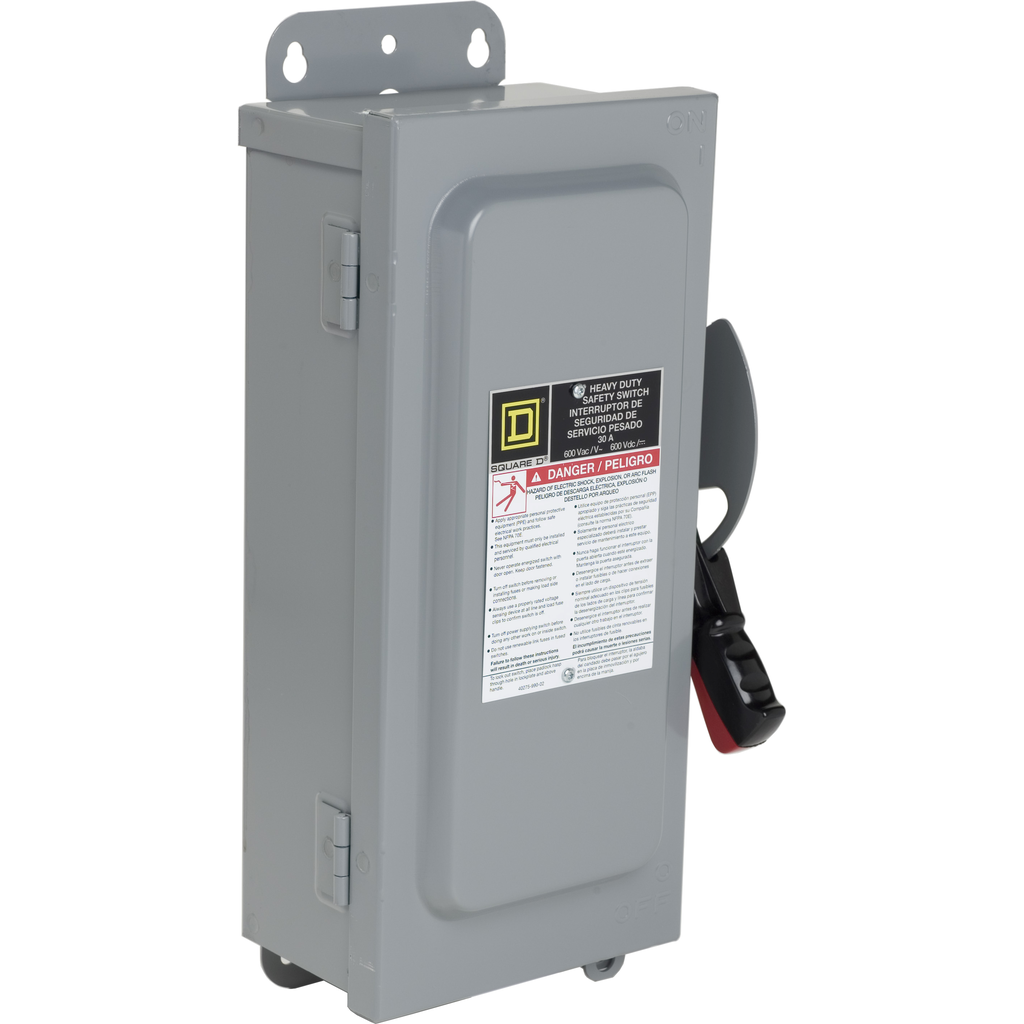

Square D CH361AWK 600 VAC/VDC 30 Amp 20 Hp 3-Pole NEMA 3R/12 Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # CH361AWK | Cooper Electric Part # 682655
$1,001.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2
Safety switch, heavy duty, fusible, 30A, 600VAC/VDC, 3 poles, 20HP, NEMA 12

Technical Information

Amperage
30 Amp
Applications
HEAVY DUTY
Conductor Size
12-6 AWG (AL)/14-6 AWG (CU)
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
12,3R
Enclosure Material
Stainless Steel
Line Rated Current
30 A
Mounting Type
Surface
NEMA Size
12,3R
Number of Poles
3 Pole
Size
14.6 IN,4.96 IN,7.55 IN
TC Connection
AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
Voltage
600 Volt
Wire Size
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901995159
GTiN
00785901995159
Product UPC
78590199515

Dimensions

Depth
4.96 Inch
Height
14.6 Inch
Width
7.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA
Country of Origin
USA
Motor Power Hp
  • 5 hp at 480 V AC 50-60 Hz for 3 phase motors
  • 15 hp at 480 V AC 50-60 Hz fo
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.4930165909075359
  • 0.5 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 11 kg CO2 eq.
  • 10.84090520674712
Ue Rated Operational Voltage
  • 600 V AC/DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 26 kg CO2 eq.
  • 25.709605235338373
Nema Degree Of Protection
  • NEMA 3R/12 galvannealed steel
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 3 kg CO2 eq.
  • 3.2480830971283483
Carbon Footprint Of The Distribution Phase A4
  • 1.4022363661235862
  • 1 kg CO2 eq.
Tightening Torque
  • 45-45 lbf.in 13.3-13.3 mm² (AWG 6)
  • 40-40 lbf.in 8.367-8.367 mm² (AWG 8)
  • 35-35 lbf.in 2.06-5.261 mm² (AWG 14...
AWG Gauge
  • AWG 12...AWG 6 aluminium
  • AWG 14...AWG 6 copper
