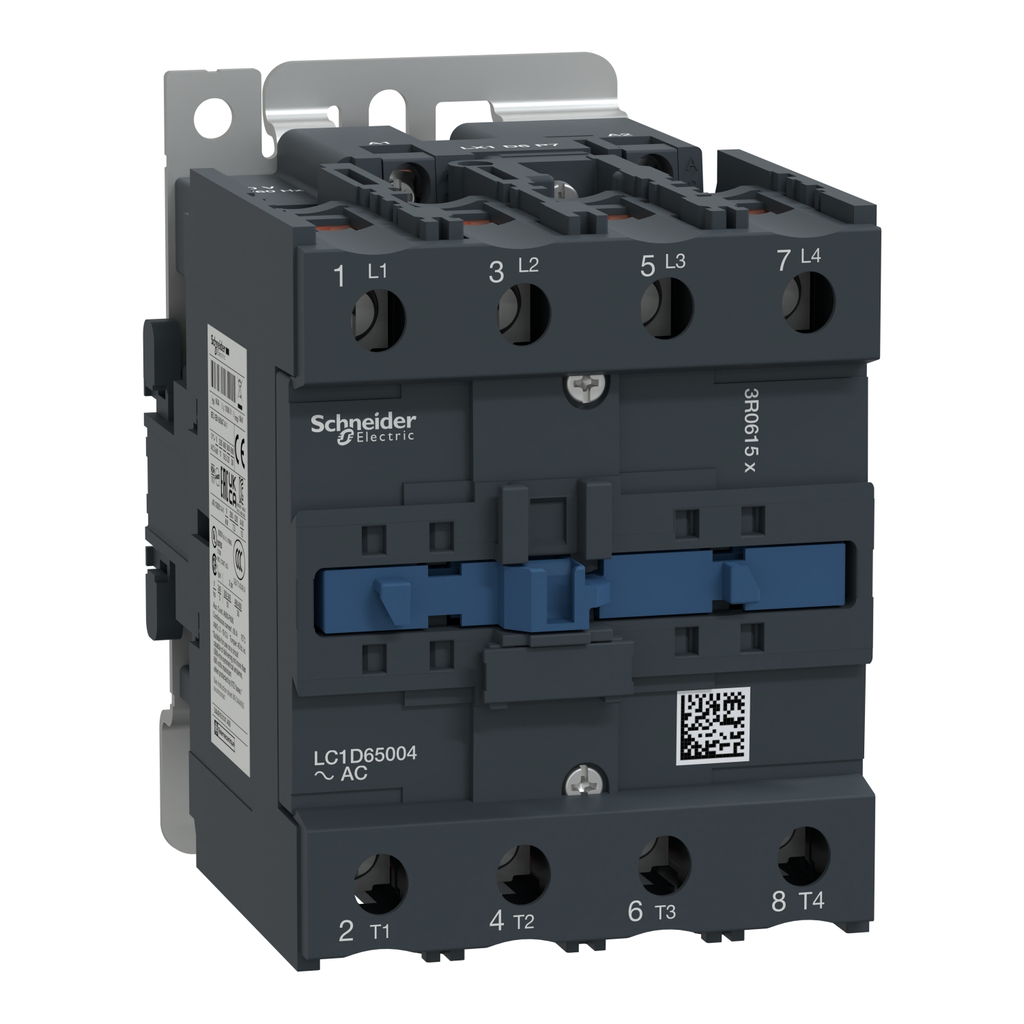

Product image for Square D LC1D65004G6 575 VAC 65 Amp 4-Pole Screw Terminal Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 2
Email

Square D LC1D65004G6 575 VAC 65 Amp 4-Pole Screw Terminal Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1D65004G6 | Cooper Electric Part # 682631
$738.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 80A resistive load rating. Contactor is supplied with a 120 VAC 60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.17 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Technical Information

Applications
Resistive load
Coil Voltage
120@/60Hz V
Contact Configuration
4 NO
Contact Rating
10 A 60 AC CONTROL CIRCUIT-80 A 60 AC POWER CIRCUIT
Impedance
1 MOhm - Ith 80 A 50 Hz For Power Circuit
Net Weight
1.44 kg
Operating Cycles
3600 CYC/H 60 AC
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Size
5.12 in
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
Control circuit screw clamp terminal 1 x 1-4 mmsolid without cable end;control circuit screw clamp terminal 2 x 1-4 mmflexible without cable end;control circuit screw clamp terminal 2 x 1-4 mmsolid without cable end;power circuit screw clamp terminal 1 x 1-35 mmsolid without cable end;power circuit screw clamp terminal 2 x 1-25 mmsolid without cable end
Type
Contactor;Standard
Wattage
6.4 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LC1D

General Product Info

12-Digit UPC
389110072429
GTiN
03389110072426
Product UPC
78590107242
Weight
1.44 kg

Dimensions

Depth
130 mm
Height
127 mm
Warranty Length
18 mth
Width
85 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LADN22
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD8N20
  • LADS2
  • LADR2
  • LADR0
  • LA4DA2U
  • LADN04
  • LADN13
  • LAD9ET1S
  • LADR4
  • LADT4
  • LAD8N02
  • LA4DA2G
