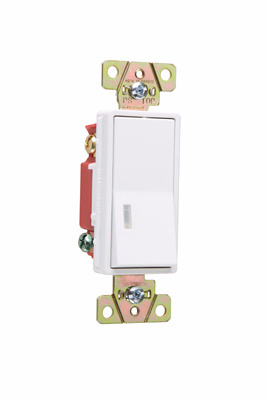

Product image for Pass & Seymour 2626-W Three-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120V - White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 2626-W Three-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120V - White

Manufacturer: Pass & Seymour / Legrand | Catalog # 2626W | Cooper Electric Part # 68077
$38.44/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
4 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Brochure
Three-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120 volts, Ivory.

Technical Information

Actuator
Paddle, Rocker/Button
Amperage
20 Amp
Applications
Industrial
Contact Rating
20 A, 120 VAC
Material
Thermoplastic
Number of Poles
1 Pole
Power Rating
3 W
Size
4.25"
Style
Decorator
Terminal Type
Screw
Type
3-Way
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007539851
Color
White
Finish
Matte
GTiN
00785007539851
Product UPC
78500753985

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Width
1.3 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
