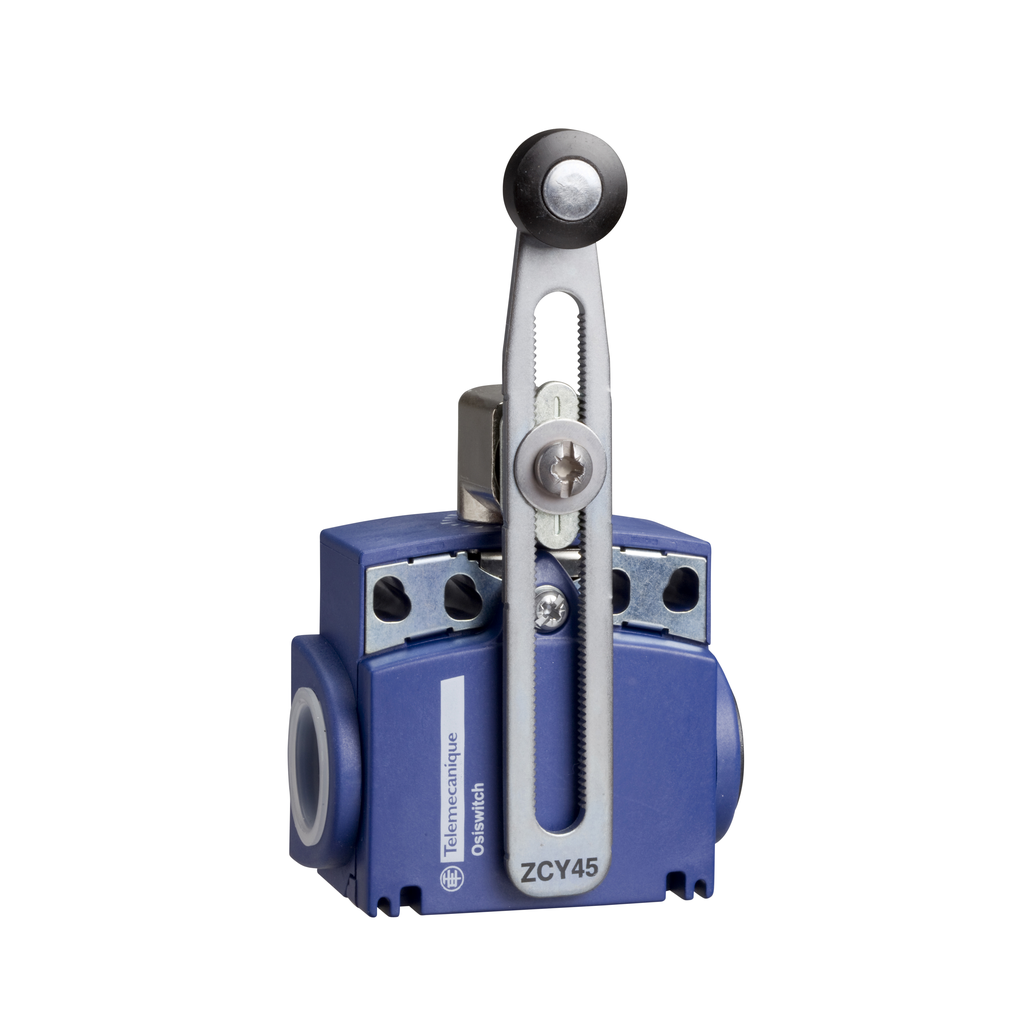

Product image for TES XCKT2145N12 Limit switch, Limit switches XC Standard, XCKT, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1/2NPT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES XCKT2145N12 Limit switch, Limit switches XC Standard, XCKT, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1/2NPT

Manufacturer: TES Electric | Catalog # XCKT2145N12 | Cooper Electric Part # 680667
$75.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Limit switch, Limit switches XC Standard, XCKT, thermoplastic plastic roller lever var.length, 1NC+1 NO, snap, 1/2NPT

Technical Information

Action
Snap action;By 30? cam
Actuator
SPRING RETURN ROLLER LEVER THERMOPLASTIC VARIABLE LENGTH
Amperage
10 Amp
Applications
COMPACT VARIABLE
Body Material
Plastic
Body Type
Fixed
Cable Entry
2 entries tapped for 1/2" NPT cable gland
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4/6/12/13 IP66/67
Head Type
Rotary head
Material
Plastic
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
2 ENTRIES TAPPED FOR 1/2 NPT CABLE GLAND,COMPACT,FIXED
Standard
CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA
Type
Limit switch
Voltage
240//250 VAC//VDC

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKT

General Product Info

12-Digit UPC
785901269434
GTiN
03389110306125
Product UPC
78590126943

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
France
