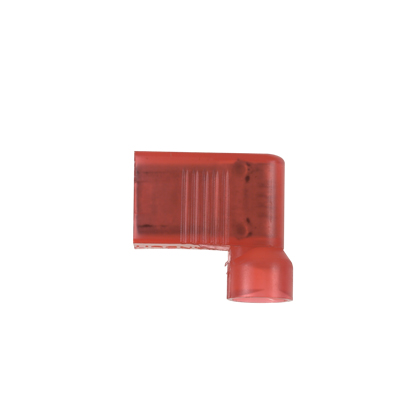

Product image for Panduit DNFR18-250FIB-L Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK50
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit DNFR18-250FIB-L Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK50

Manufacturer: Panduit Corp | Catalog # DNFR18-250FIB-L | Cooper Electric Part # 680277
$205.18/c (100 ea)
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing

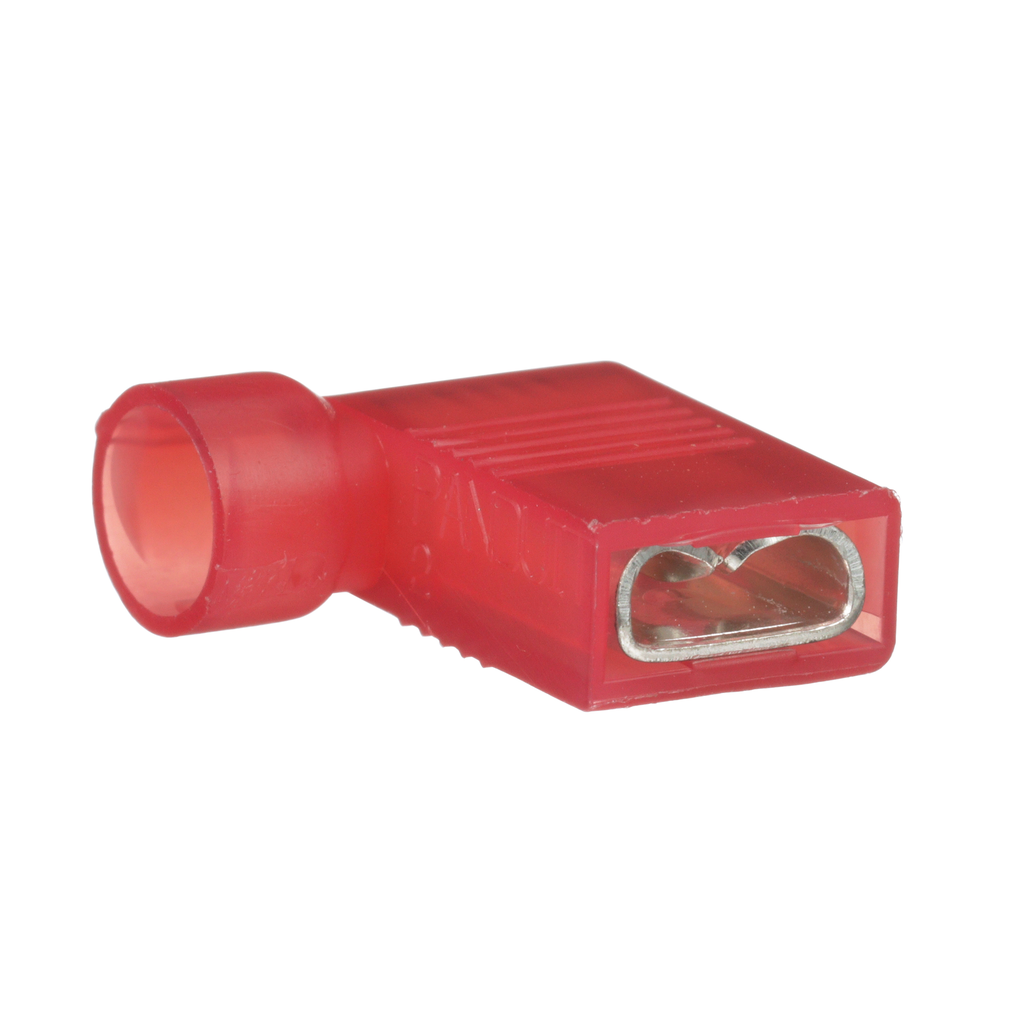

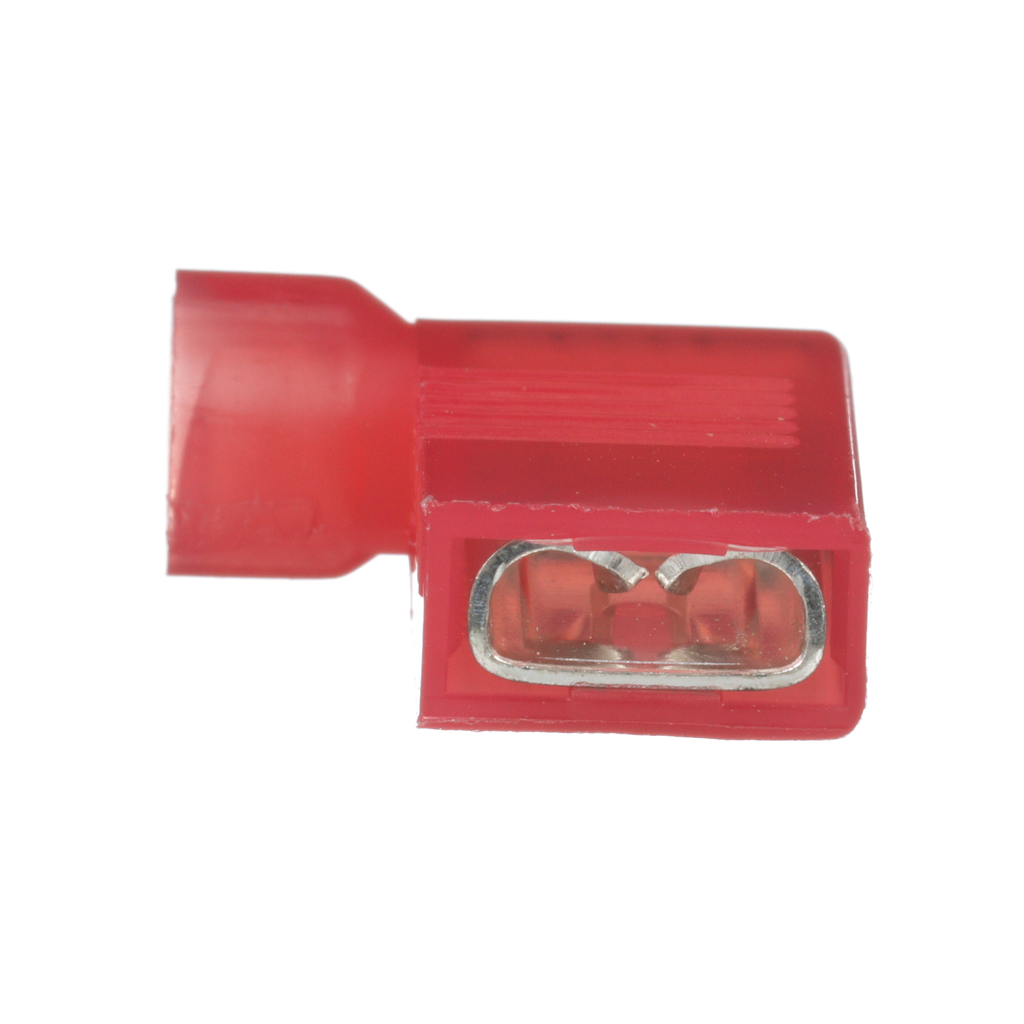

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
E1 Plus Solid State Relay
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983118038
Color
Amber,Green,Red,White
Finish
Tin Plated
GTiN
00074983118038
Product UPC
07498311803
UNSPSC
39121409

Dimensions

Depth
0.6 Inch
Height
0.6 Inch
Overall Length
0.58 in
Width
0.6 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
