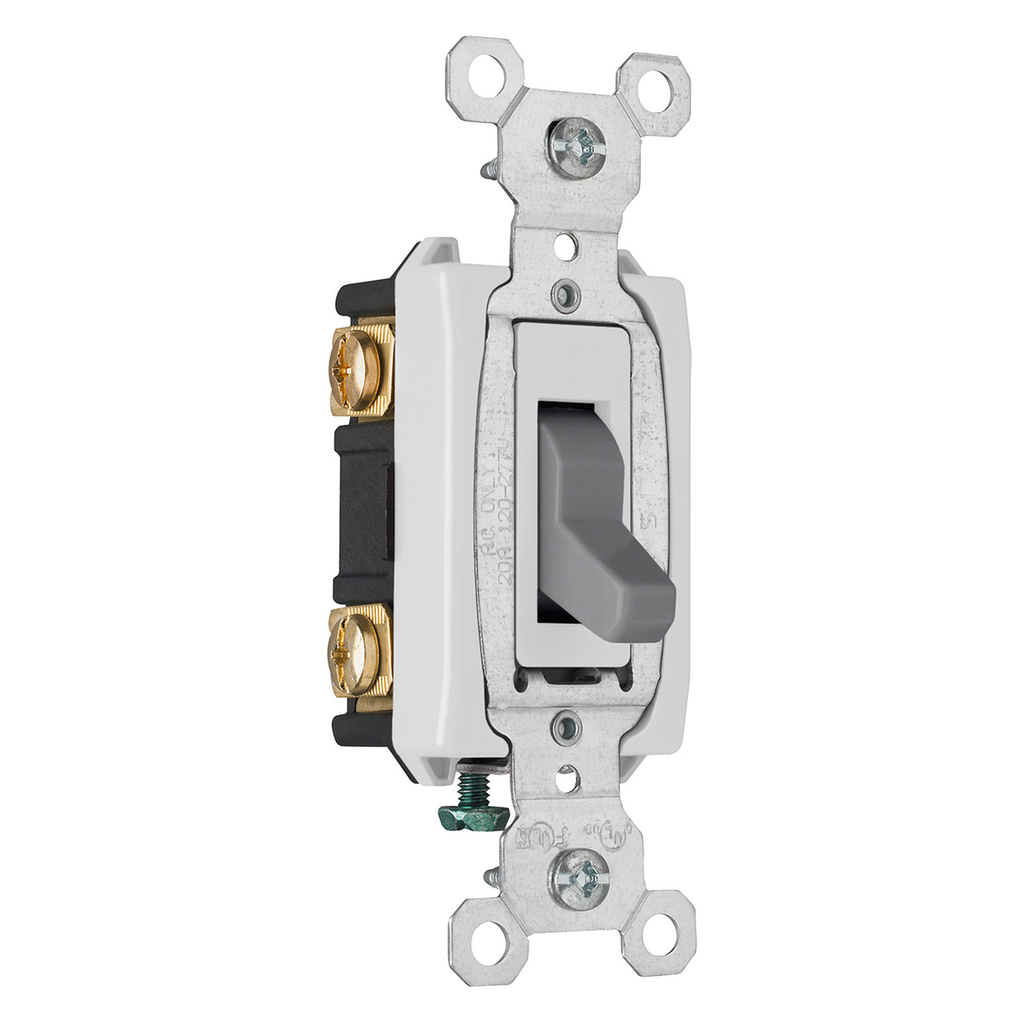

Product image for Pass & Seymour CSB20AC3-GRY Construction 3way Switch, Back & Side Wire, 20A 120/277V - Gray
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour CSB20AC3-GRY Construction 3way Switch, Back & Side Wire, 20A 120/277V - Gray

Manufacturer: Pass & Seymour / Legrand | Catalog # CSB20AC3GRY | Cooper Electric Part # 67892
$9.03/ea
ea
Log in or register to view your price, purchase history, and more!
Residential Commercial Commercial Hard-Use
Toggle Decora
15A 20A
0

Not Available for Pickup at Ocean Closes 5:00pm ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Construction 3way Switch, Back & Side Wire, 20amp 120/277volt, White.

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
For Commercial, Indoor Use
Connection Type
Side Wire Or External Screw-pressure Plate,Wired
Contact Rating
Oversized Silver Alloy Contacts
Duty Rating
Hard Use
Enclosure
WD-1,WD-6
Grade
Specification
Indoor Outdoor
Indoor
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
40 degrees F
Size
3.3"
Type
3-Way
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007126266
Color
Gray
Finish
Matte
GTiN
00785007126266
Product UPC
78500712626
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
  • Federal Spec Listed
Features
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 to #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
