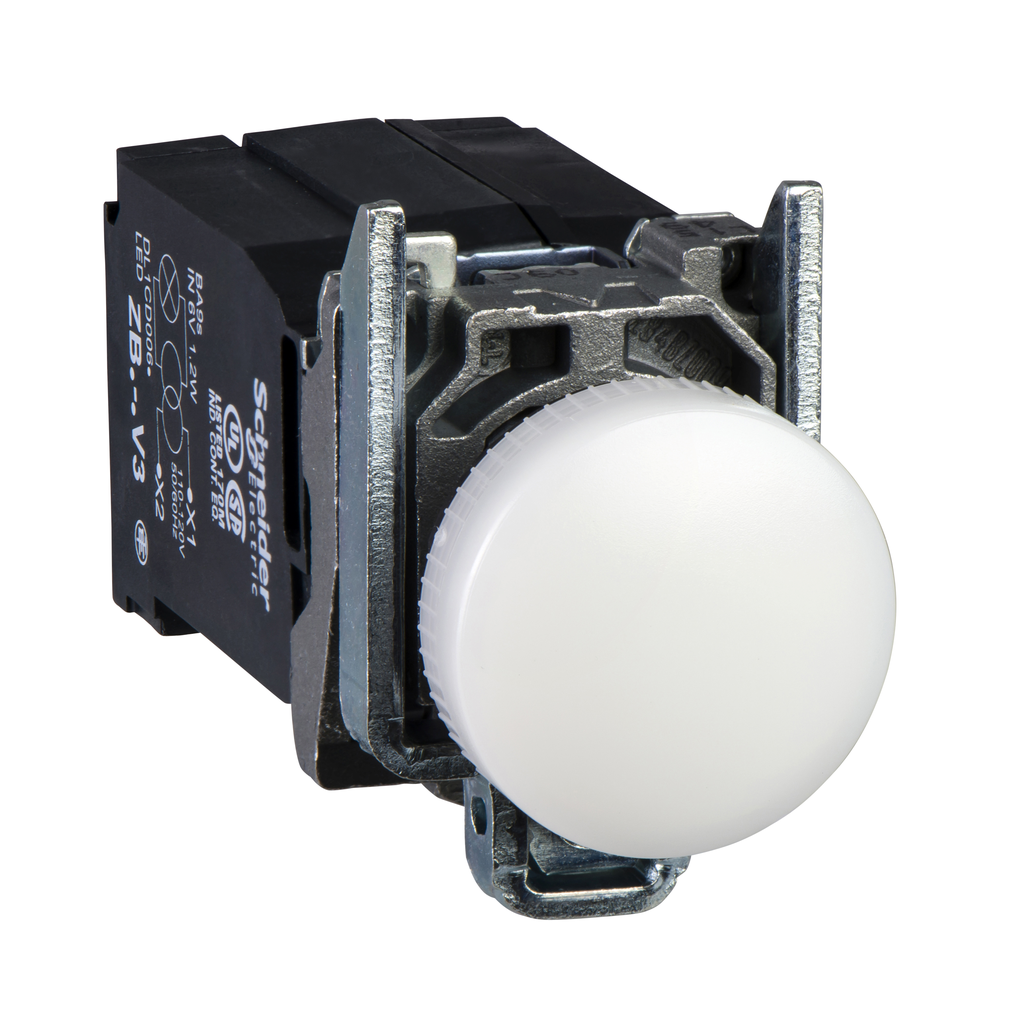

Square D XB4BV31 22 mm 120 VAC 14 mA White Round Illuminated Pilot Light with LED

Manufacturer: Square-D / Schneider | Catalog # XB4BV31 | Cooper Electric Part # 676988
$94.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony XB4 plain lens modular white pilot light is supplied with 110V to 120V AC/DC, uses BA9s base. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.

Technical Information

Bezel Material
Chromium Plated Metal
Contact Rating
AC15 - DC13
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
BA 9S,INCANDESCENT,WHITE
Light Source
Incandescent
Net Weight
0.152 kg
Operating Temperature
-40-55 degrees C
Size
22 MM,30 MM,47 MM,78 MM
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.22...2 X 2.5 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
PILOT LIGHT
Voltage
110...120 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB4

General Product Info

12-Digit UPC
785901381037
Color
White
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110887211
Product UPC
78590138103
Weight
0.34 lb

Dimensions

Depth
78 mm
Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
France
Compatible Products
  • ZBYLEG503001
  • ZBY2101
Cross Sell Products
  • XB4BW23B5
  • XBH1AA0R4
  • XB5KS2B4
  • ZBY9W2B330
Spare Part Products
  • ZB4BV01
  • ZB4BV3
  • ZB4BZ009
