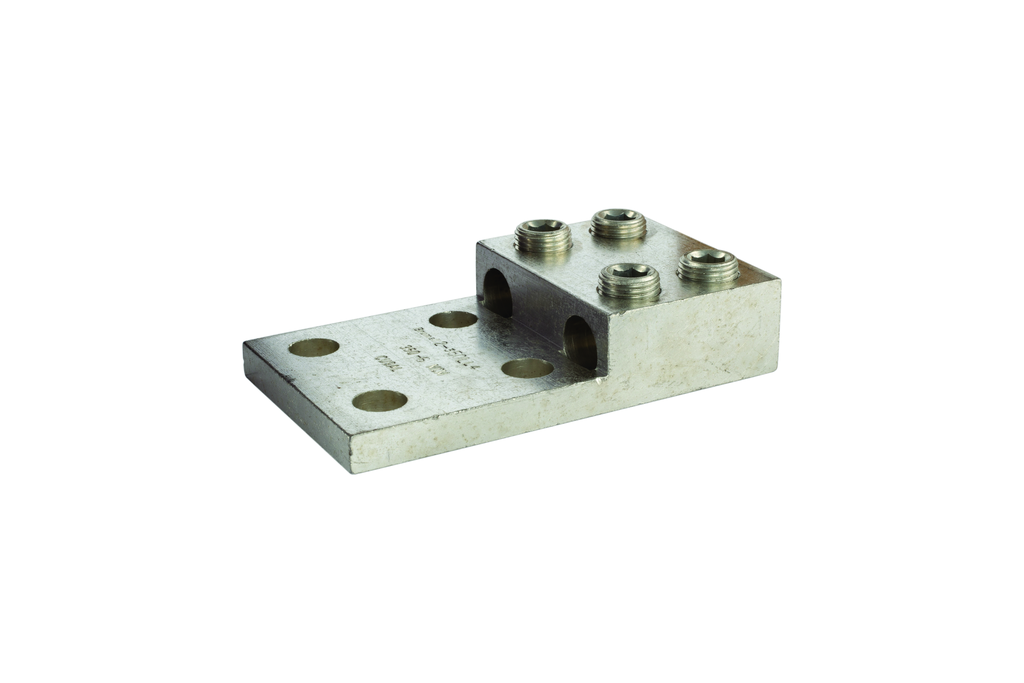

Product image for NSI 2-600LL4 Heavy Duty Transformer
Email

NSI 2-600LL4 Heavy Duty Transformer

Manufacturer: NSi | Catalog # 2-600LL4 | Cooper Electric Part # 676497
$99.85/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet
2 Port Heavy Duty Dual Rated Transformer Lug 600 MCM - 2 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Bolt Size
3/8 IN
Conductor Size
2 AWG
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
4
Number of Conductors
2
Number of Poles
1 Pole
Number of Ports
2
Temperature Rating
90 degrees C
Type
Transformer Lug-Heavy Duty
Voltage
600 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Utilities

General Product Info

12-Digit UPC
662381027122
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381027122
Product UPC
66238102712

Dimensions

Height
1.562 Inch
Length
5-7/8 Inch
Warranty Length
1 yr
Width
2.41 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance
  • Two set-screws per wire hole ensure an exceptional connection
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • Mounting hole spacing is NEMA 1 3/4\" spacing
Certifications and Standards
  • ANSI
