Square D ZB5RTA4 22 mm Red Plastic Wireless/Batteryless Push Button Transmitter

Manufacturer: Square-D / Schneider | Catalog # ZB5RTA4 | Cooper Electric Part # 673244
$136.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

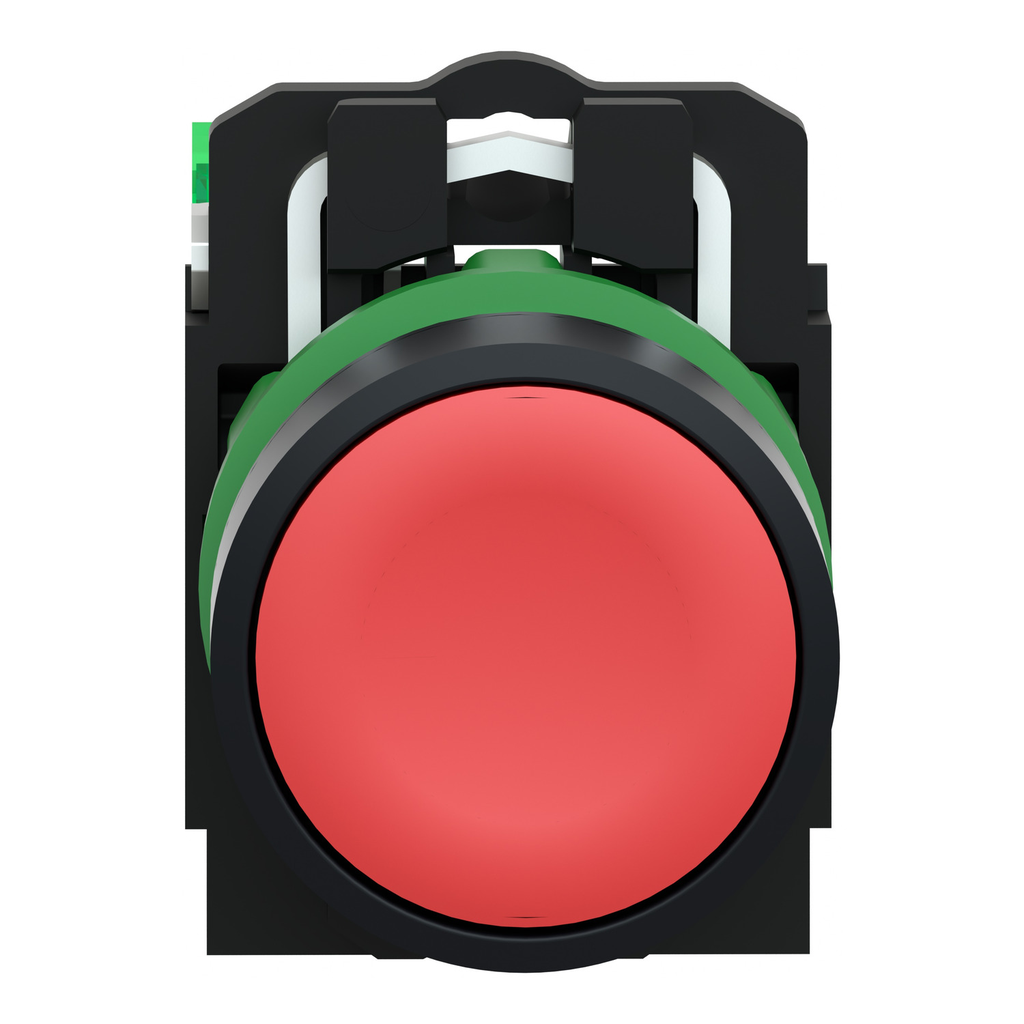

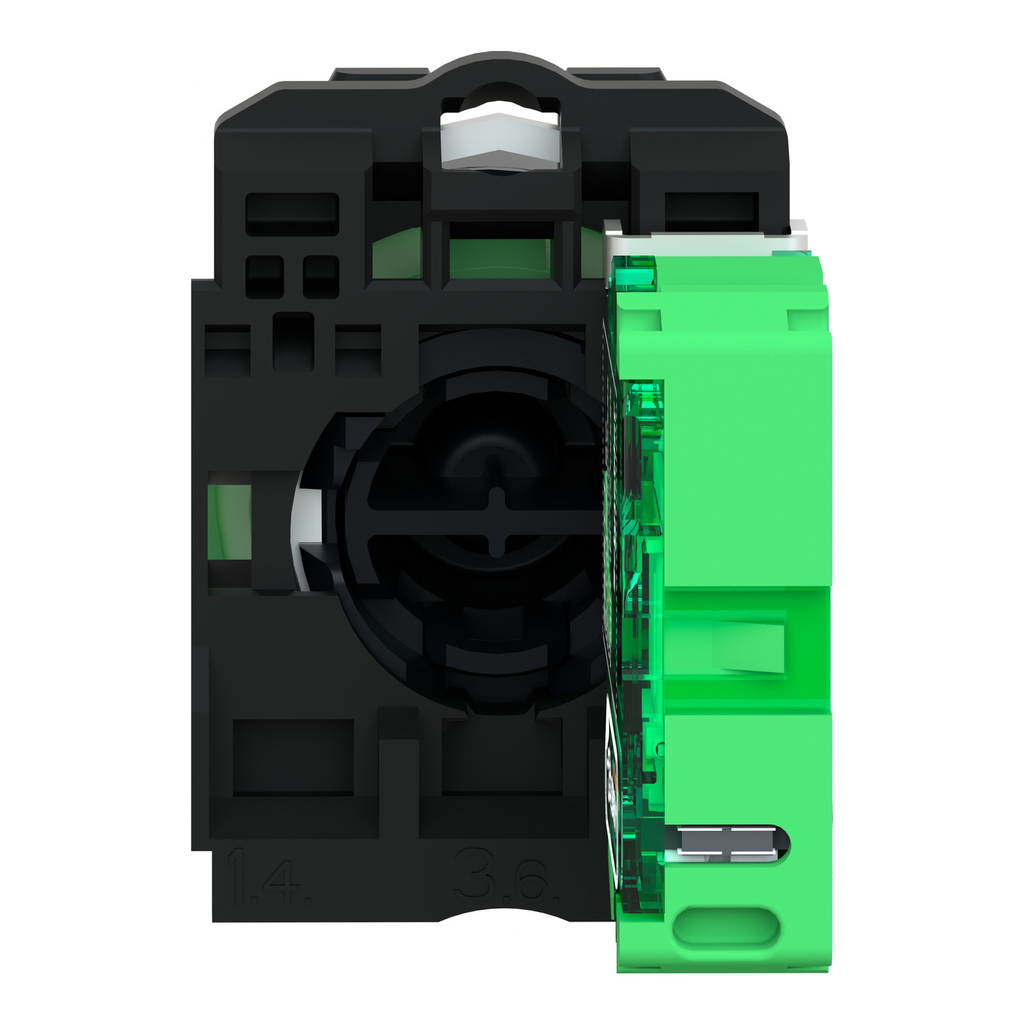

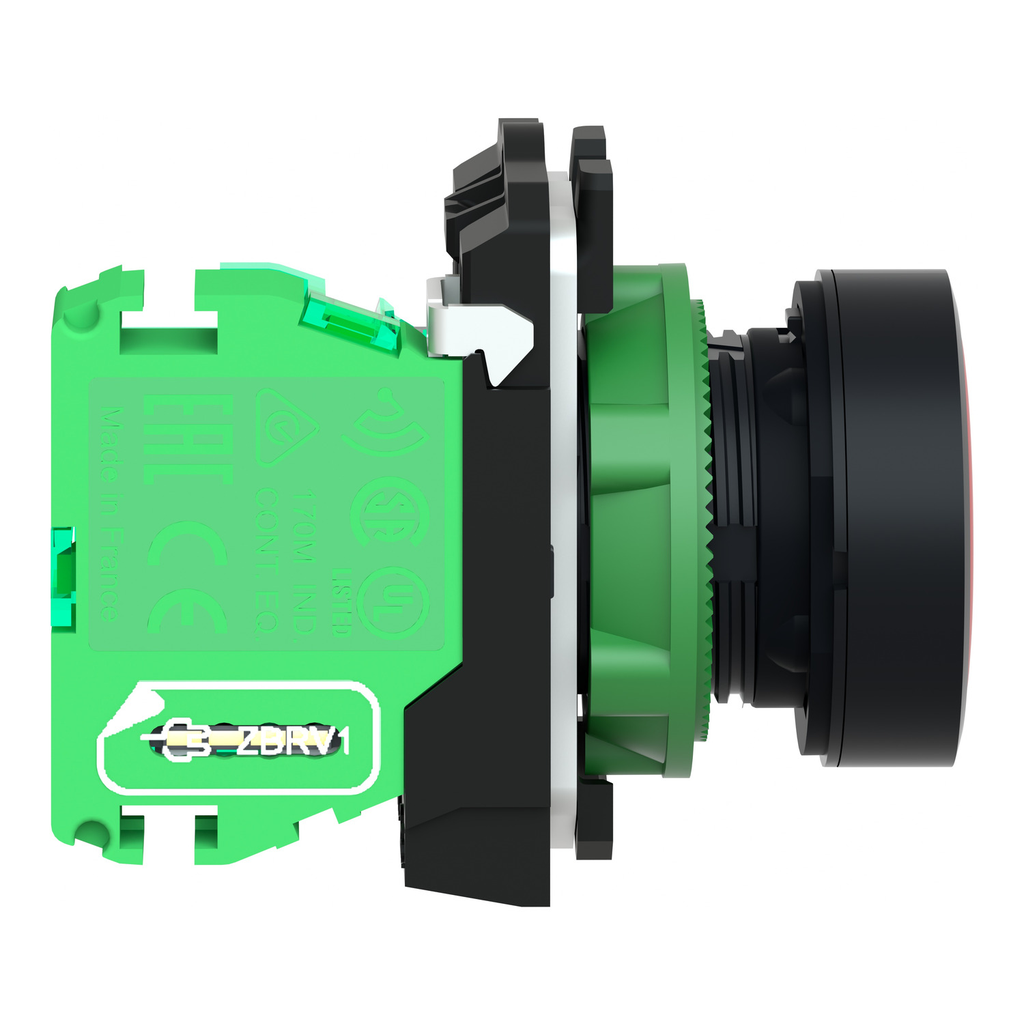

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with red clipped-in cap. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 45g.

Technical Information

Action
SPRING RETURN PUSH-BUTTON WITH TRANSMITTER
Actuator
RED FLUSH,SPRING RETURN PUSH-BUTTON WITH TRANSMITTER
Applications
WIRELESS PUSH-BUTTON
Bandwidth
5 MHz
Bezel Material
Plastic
Enclosure
IP65
Indicator
RED
Net Weight
0.045 kg
Number of Channels
16
Operating Force
10 N
Operating Temperature
-25-55 Adegrees C
Response Time
< 2 ms
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Wireless and batteryless transmitter
Wattage
3 mW

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB5R

General Product Info

12-Digit UPC
606480334613
Color
Red
GTiN
03606480334610
Product UPC
78590169223
Weight
0.045 kg

Dimensions

Height
41.5 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BT 2006/95/EC,C-tick,CSA,GOST,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBRA1
  • ZBRRA
  • ZBRA3
  • ZBRRC
  • ZBRRD
  • ZBRN1
  • ZBRN2
  • ZBRA2
  • ZBRCETH
Spare Part Products
  • ZBRT1
  • ZB5AZ009
  • ZBA74
