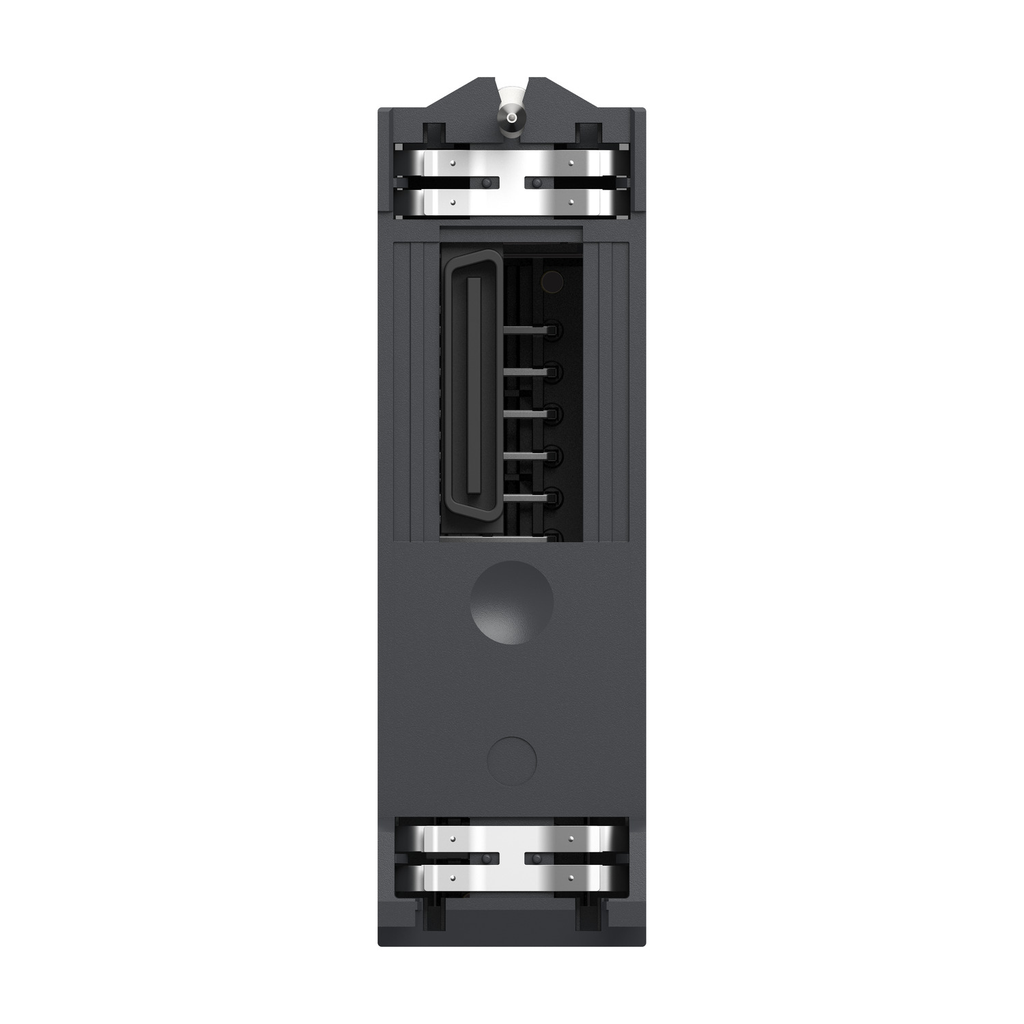

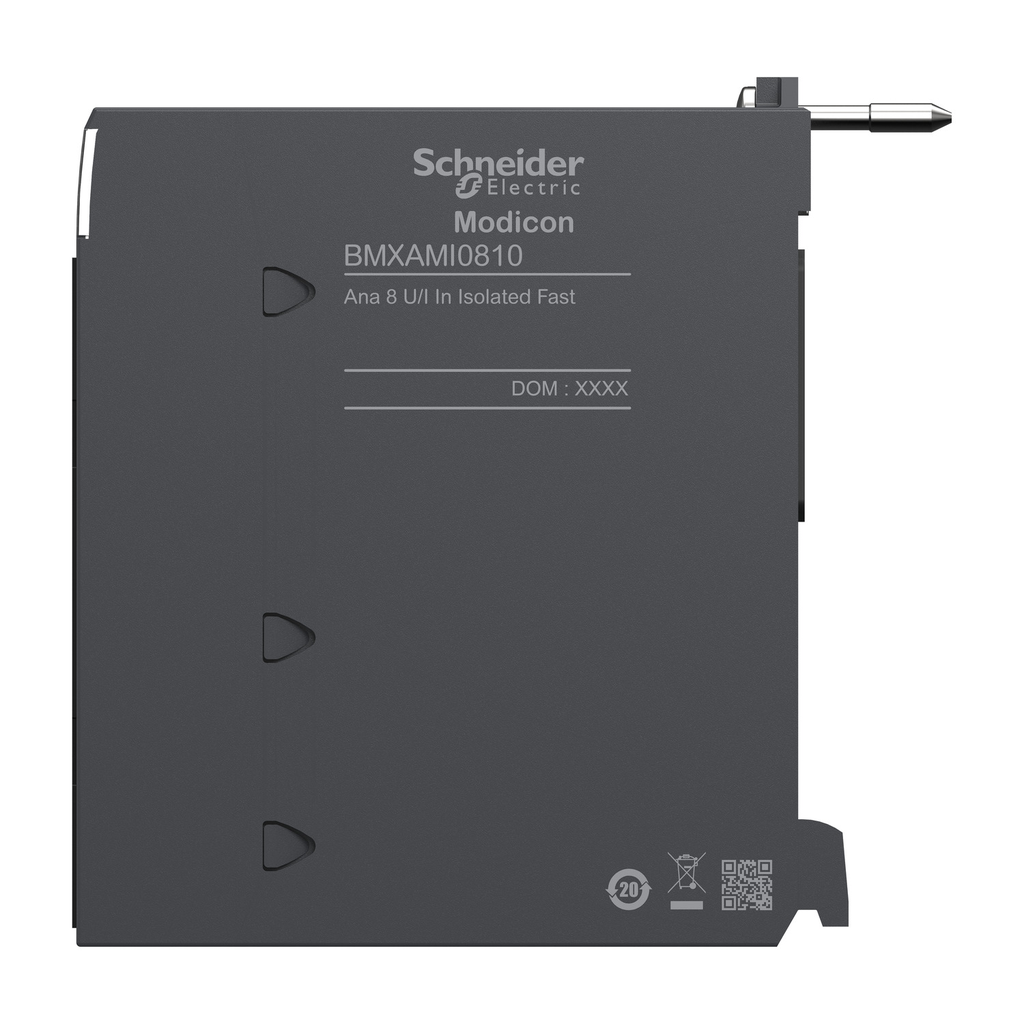

Square D BMXAMI0810 20 mA 5 Volt IP20 PLC Analog Input Module

Manufacturer: Square-D / Schneider | Catalog # BMXAMI0810 | Cooper Electric Part # 672661
$938.52/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
2 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

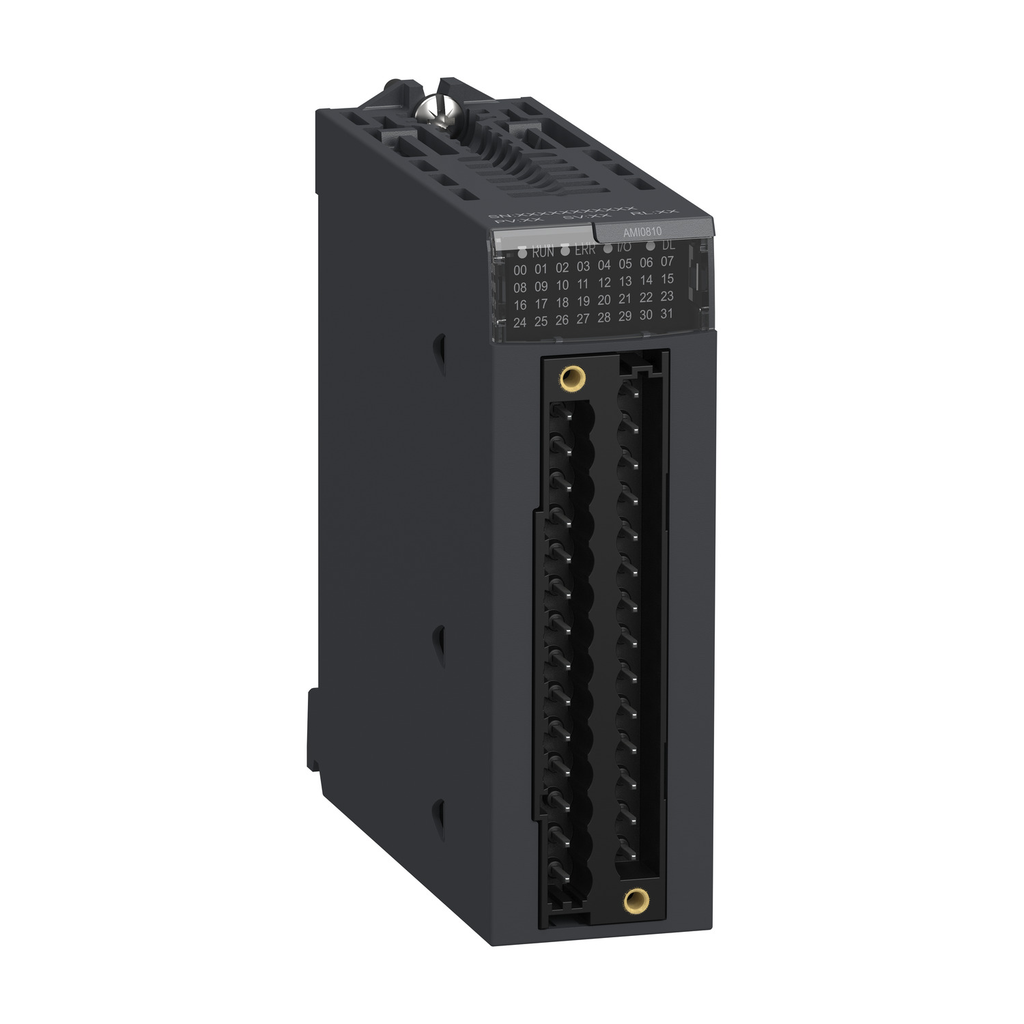

This high level analog input module is part of the Modicon X80 modules. It has 8 isolated analog inputs (15 bits + sign). This module is connected via 28-way removable terminal block. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Technical Information

Applications
MODICON M340 AUTOMATION PLATFORM
Current
150 mA
Enclosure
IP20
Impedance
50 ohm
Net Weight
0.165 kg
Number of Channels
8
Operating Temperature
0.0 C60.0 C
Power Supply
150 MA 3.3 V DC-45 MA 24 V DC
Standard
CSA C22.2 No 61010-2-201,EN/IEC 61010-2-201,EN/IEC 61131-2,UL 61010-2-201
Storage Temperature
-40-85 degrees C
Type
ANALOG INPUT MODULE

Manufacturer Information

Brand
Schneider Electric
Sub Brand
MODICON

General Product Info

12-Digit UPC
595864081567
GTiN
03595864081564
Product UPC
78590167600
Weight
0.165 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,EAC,Merchant Navy,RCM,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • BMXFTB2800
  • BMXFTB2820
  • BMXFTW308S
  • BMXFTW508S
  • ABE7CPA02
  • ABE7CPA31
  • ABE7CPA31E
  • BMXFTA150
  • BMXFTA300
