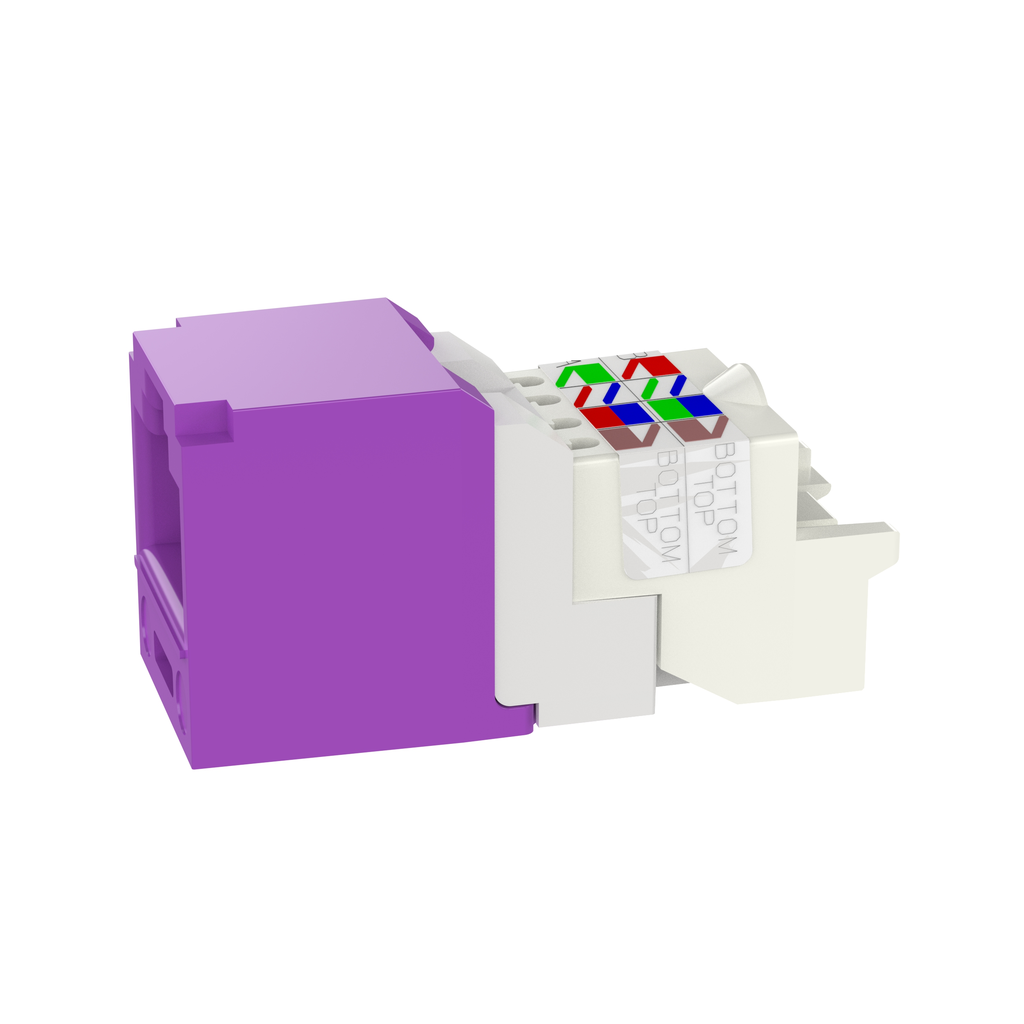

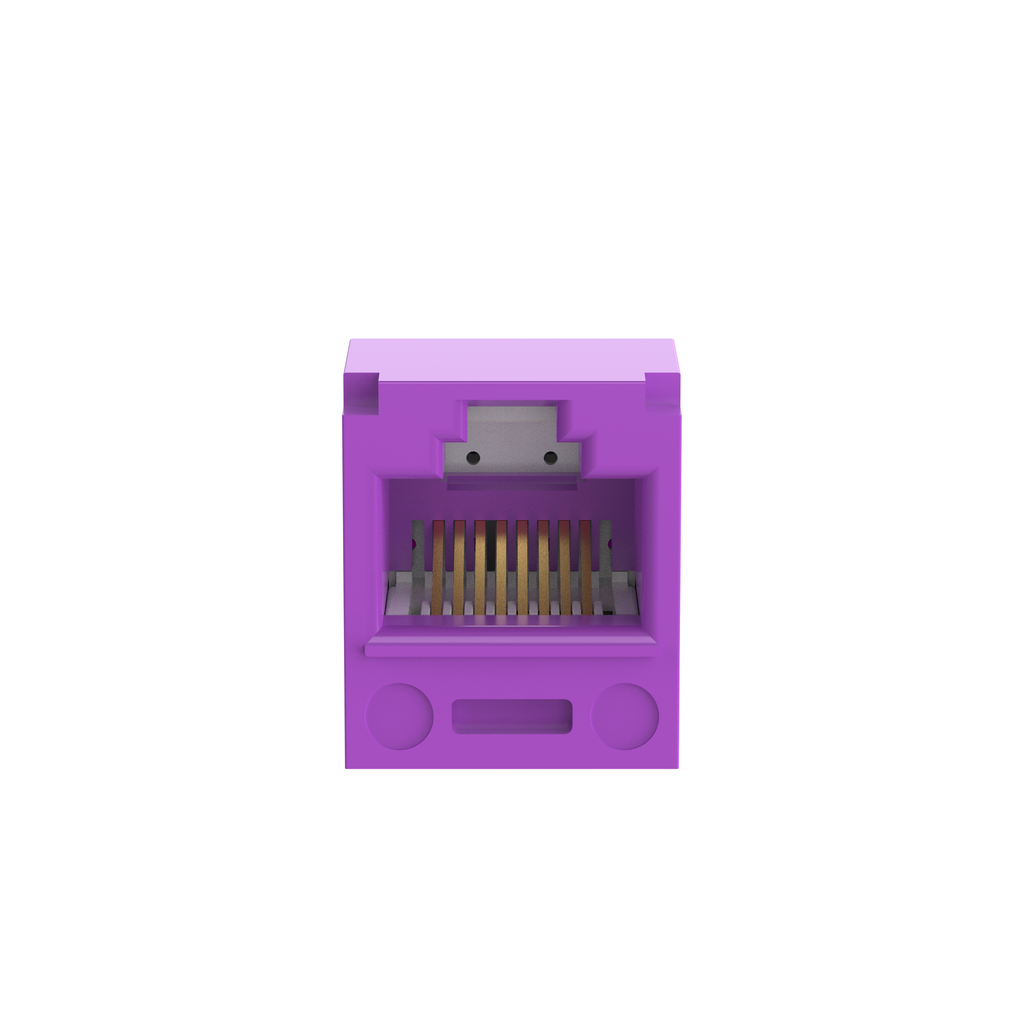

Panduit CJ688TPVL UTP RJ45 Cat 6 TP-Style Jack Module, Violet

Manufacturer: Panduit Corp | Catalog # CJ688TPVL | Cooper Electric Part # 672402
$25.42 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Engineering Drawing Product Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 6 UTP RJ45 TP Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Performance Level
Category 6
Type
Keystone, 8-Wire, 1-Slot

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983992799
Color
Violet
GTiN
00074983992799
Product UPC
07498399279
UNSPSC
43223301

Dimensions

Depth
1.43 Inch
Height
0.63 Inch
Overall Length
1.43 in
Width
16 mm

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
