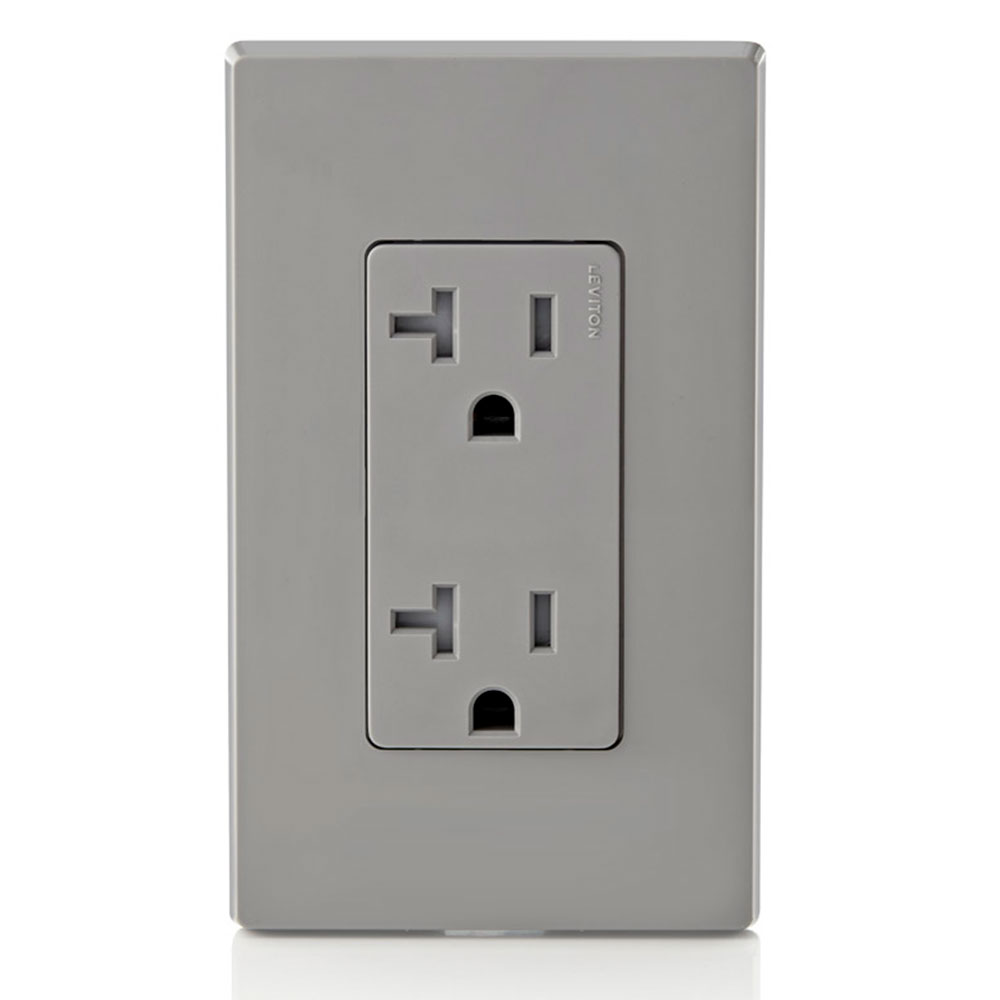

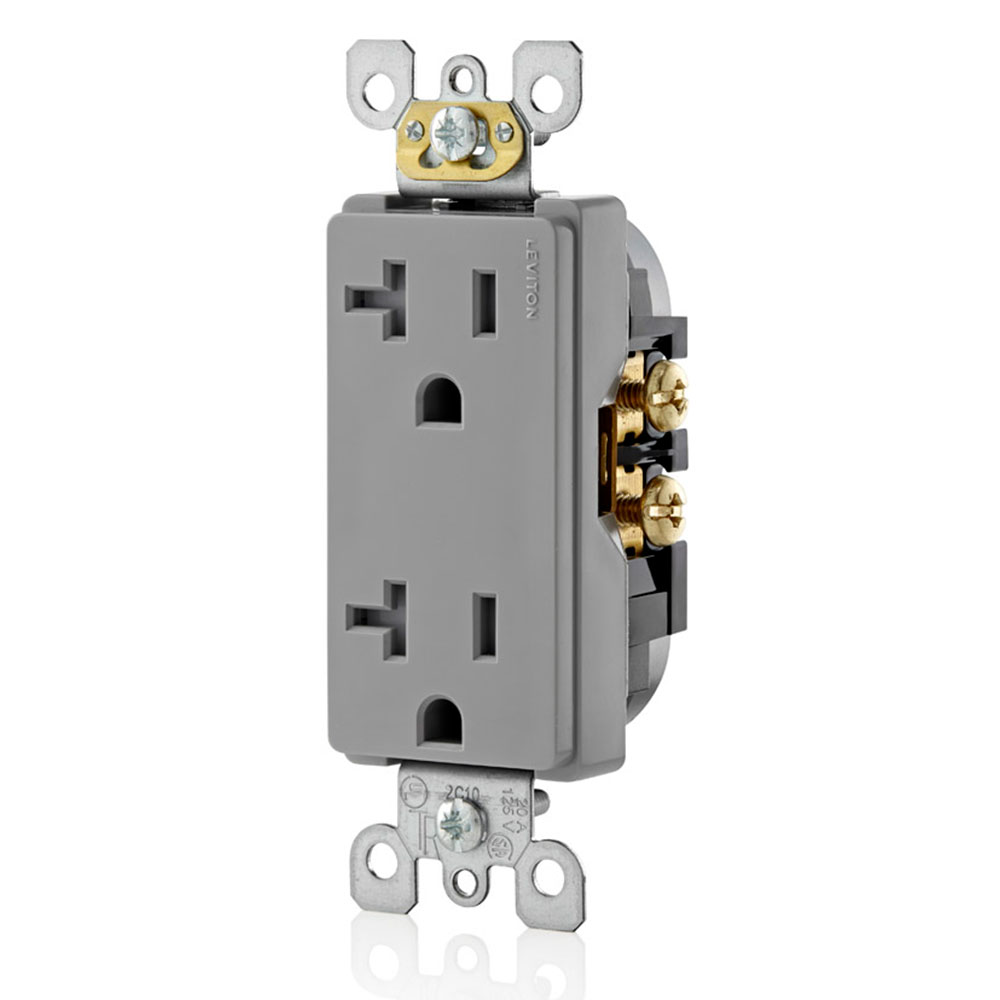

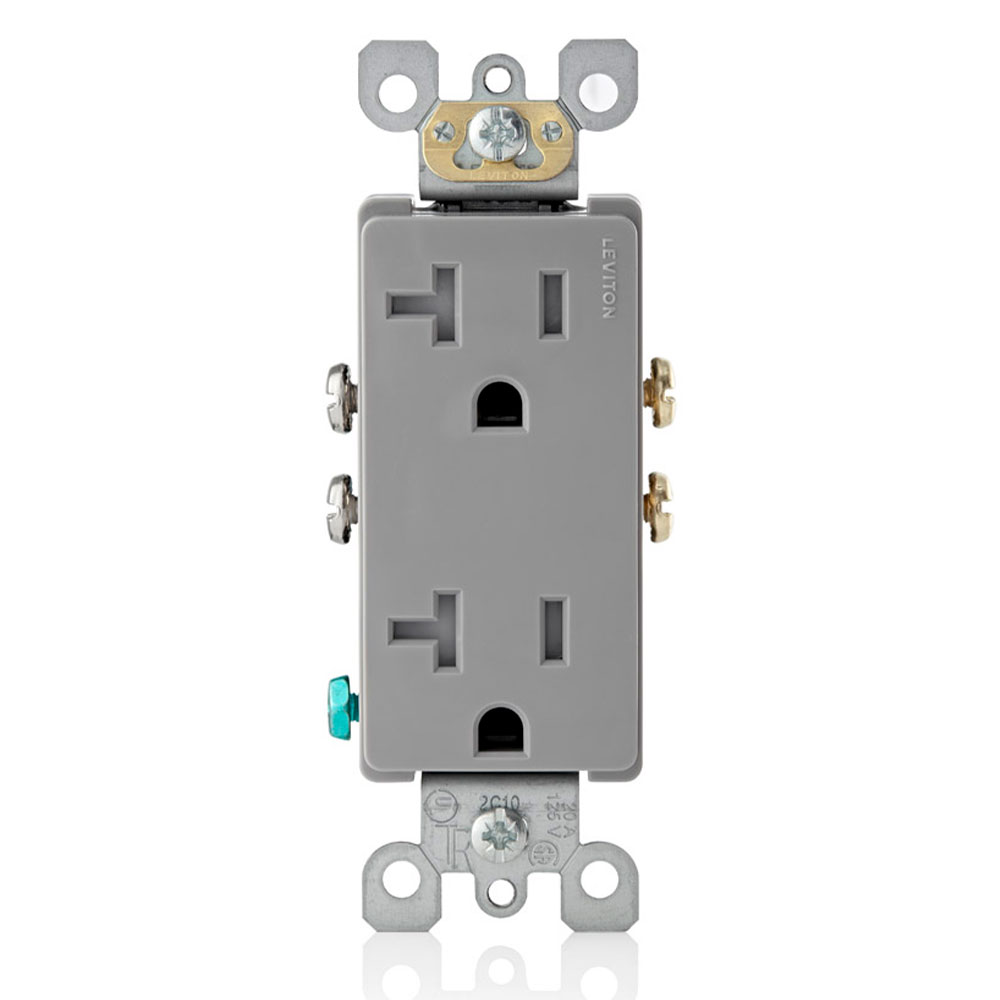

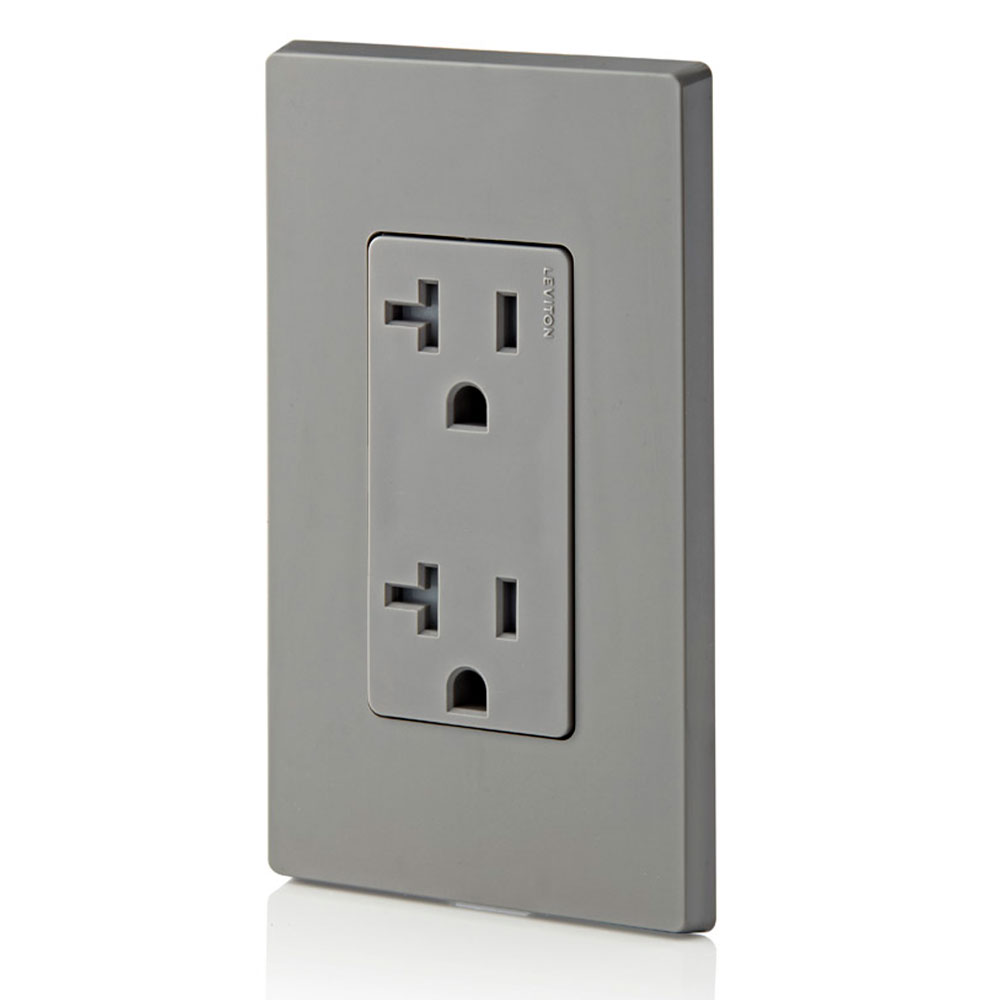

LEV T5825-GY GY REC TR DEC DUP 20A1

Manufacturer: Leviton Mfg Co | Catalog # T5825-GY | Cooper Electric Part # 671045
$13.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Gray

Technical Information

Amperage
20 Amp
Applications
Commercial use
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Material
Thermoplastic
Mounting Type
Wallplate, Flush, Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.2 H x 1.351 W x 1.184 D IN
Standard
CSA Certified (File 152105),NOM,UL (Listed)
TC Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477450529
Color
Gray
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477450529
Product Type
Decora
Product UPC
07847745052

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
  • SAFE Tamper-Resistant offers protection from electrical shocks
  • DURABLE Impact-resistant thermoplastic nylon construction
  • EASY Side wiring for easy installation
  • CONVENIENT TR symbol on strap assures they meet the latest NEC requirements
Patents
  • US8242362
