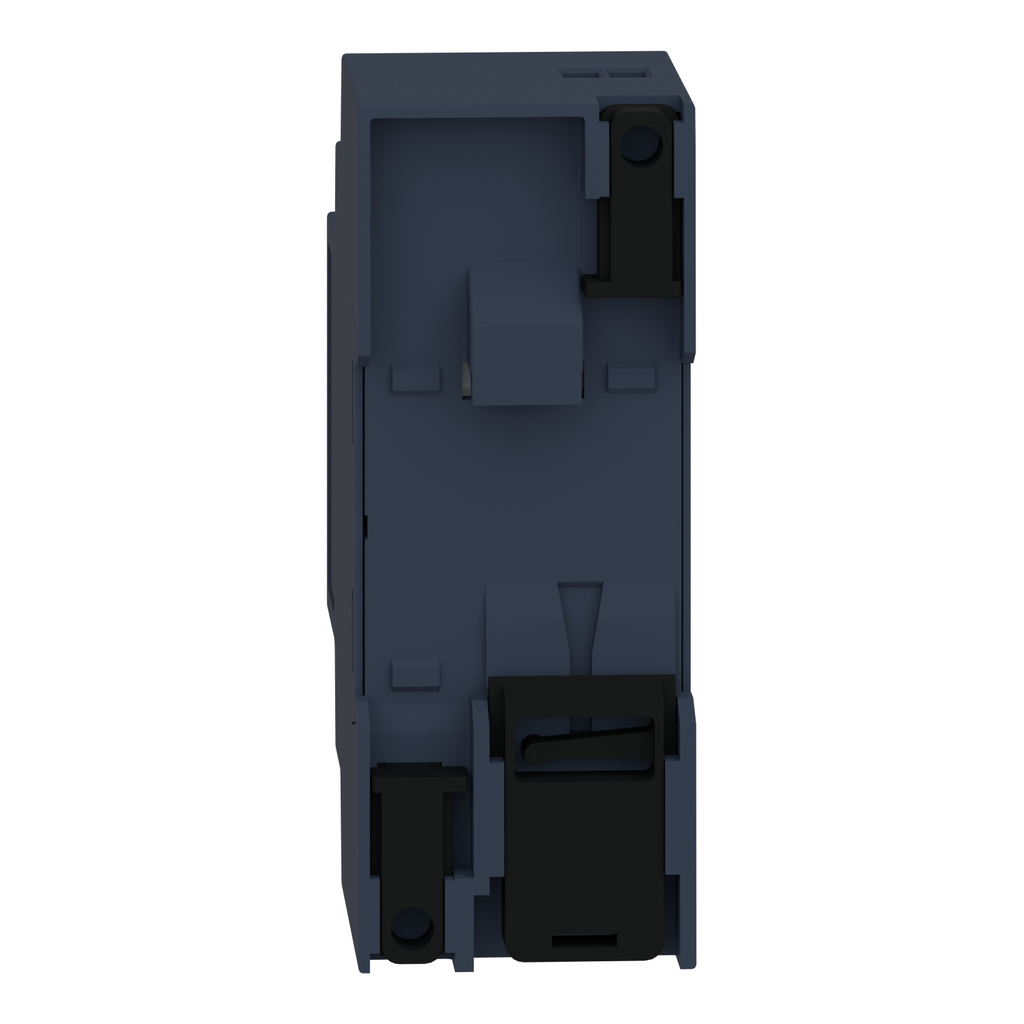

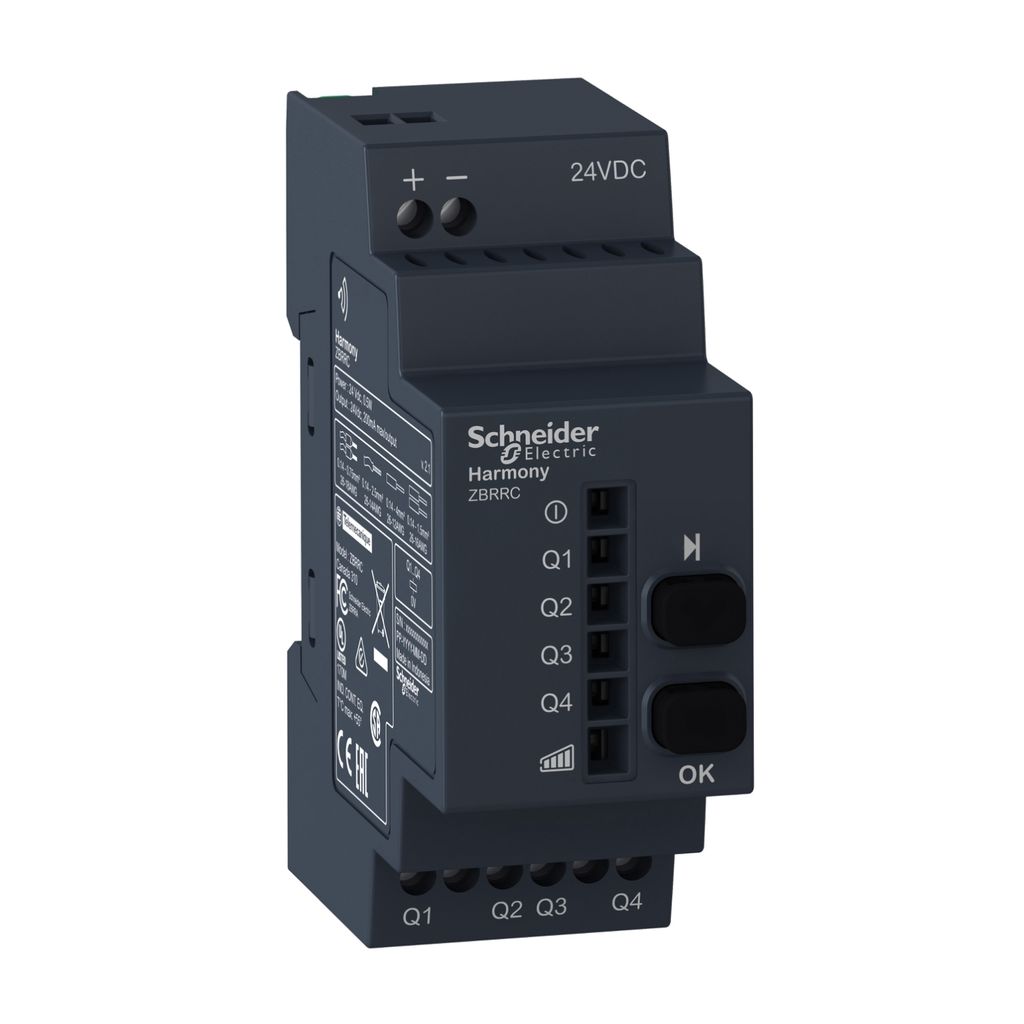

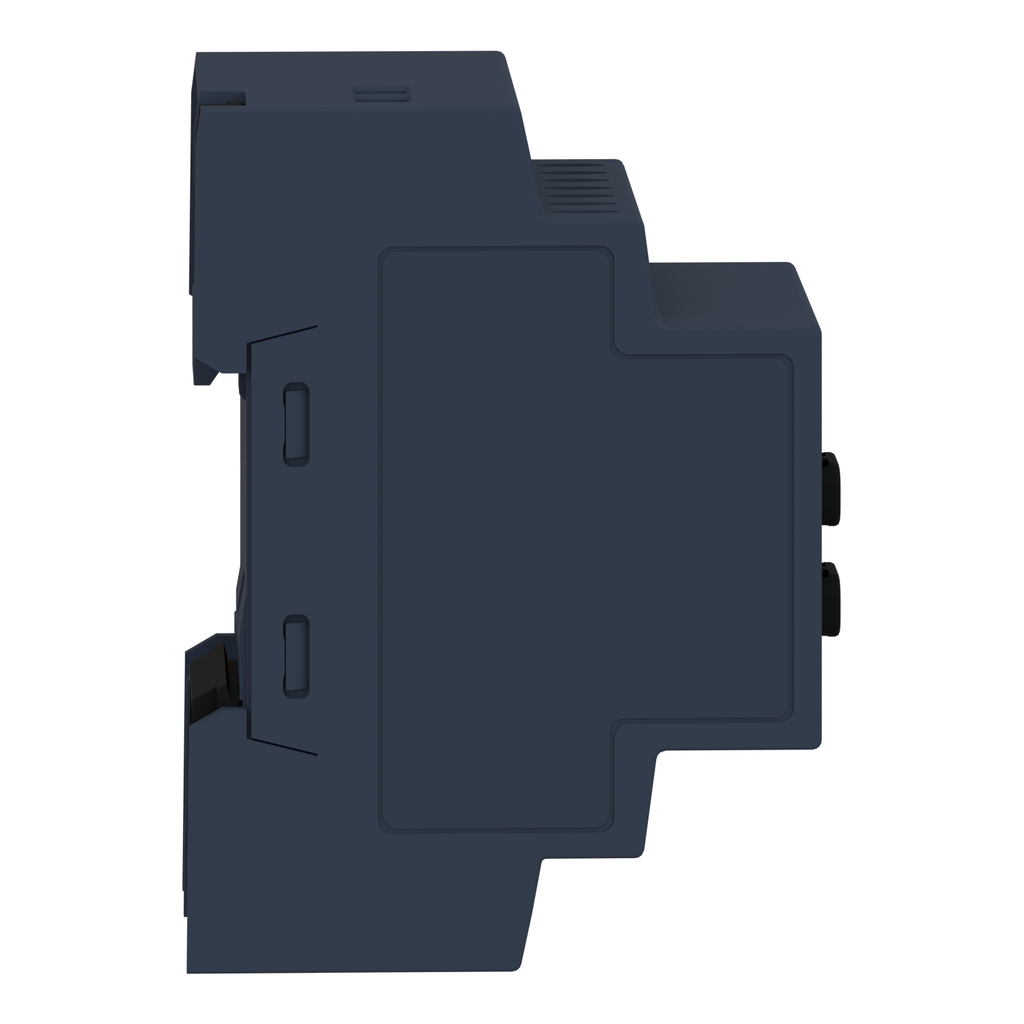

SQD ZBRRC Programmable receiver, Ha

Manufacturer: Square-D / Schneider | Catalog # ZBRRC | Cooper Electric Part # 668803
$430.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This configurable receiver is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It is equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It features 4 PNP outputs, 200 mA /24 V and it can be supplied with 24V DC. It is easily combined with wireless and batteryless pushbuttons XB4R/XB5R and limit switches XCKW/XCMW. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. Its protection index is IP20. It weighs 130g and its dimensions are, 36mm wide, 108mm high, 75mm deep.

Technical Information

Applications
Interface to PLC
Contact Configuration
4 PNP
Indicator
1 LED, COLOR: GREEN FOR POWER ON-1 LED, COLOR: GREEN AND YELLOW FOR RECEPTION SIGNAL-4 LEDS, COLOR: GREEN FOR RELAY ON
Material
Plastic
Net Weight
0.13 kg
Number of Channels
1
Response Time
< 30 ms after transmitter clicks
Size
2.95 in
Standard
IEC 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
1 CONDUCTOR CABLE 0.14-2.5 MMA - AWG 26...AWG 14 - SOLID - WITHOUT CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.14-1.5 MMA - AWG 26...AWG 16 - SOLID - WITHOUT CABLE END IEC 60947-1-1 CONDUCTOR CABLE 0.14-4 MMA - AWG 26...AWG 12 - FLEXIBLE - WITH CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.14-1.5 MMA - AWG 26...AWG 16 - FLEXIBLE - WITH CABLE END IEC 60947-1
Type
Monostable;Programmable receiver
Voltage
24 Volt DC-15...20
Wattage
20 Watt DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZBRRC

General Product Info

12-Digit UPC
606480334712
GTiN
03606480334719
Housing Material
Plastic
Product UPC
78590187938
Weight
0.13 kg

Dimensions

Depth
75 mm
Height
108 mm
Warranty Length
18 mth
Width
36 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CCC,CSA,GOST,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB4RTA1
  • ZB4RTA2
  • ZB4RTA3
  • ZB4RTA4
  • ZB4RTA5
  • ZB5RTA1
  • ZB5RTA2
  • ZB5RTA3
  • ZB5RTA331
  • ZB5RTA4
  • ZB5RTA432
  • ZB5RTA5
  • ZB5RTA6
  • ZB5RTC2
