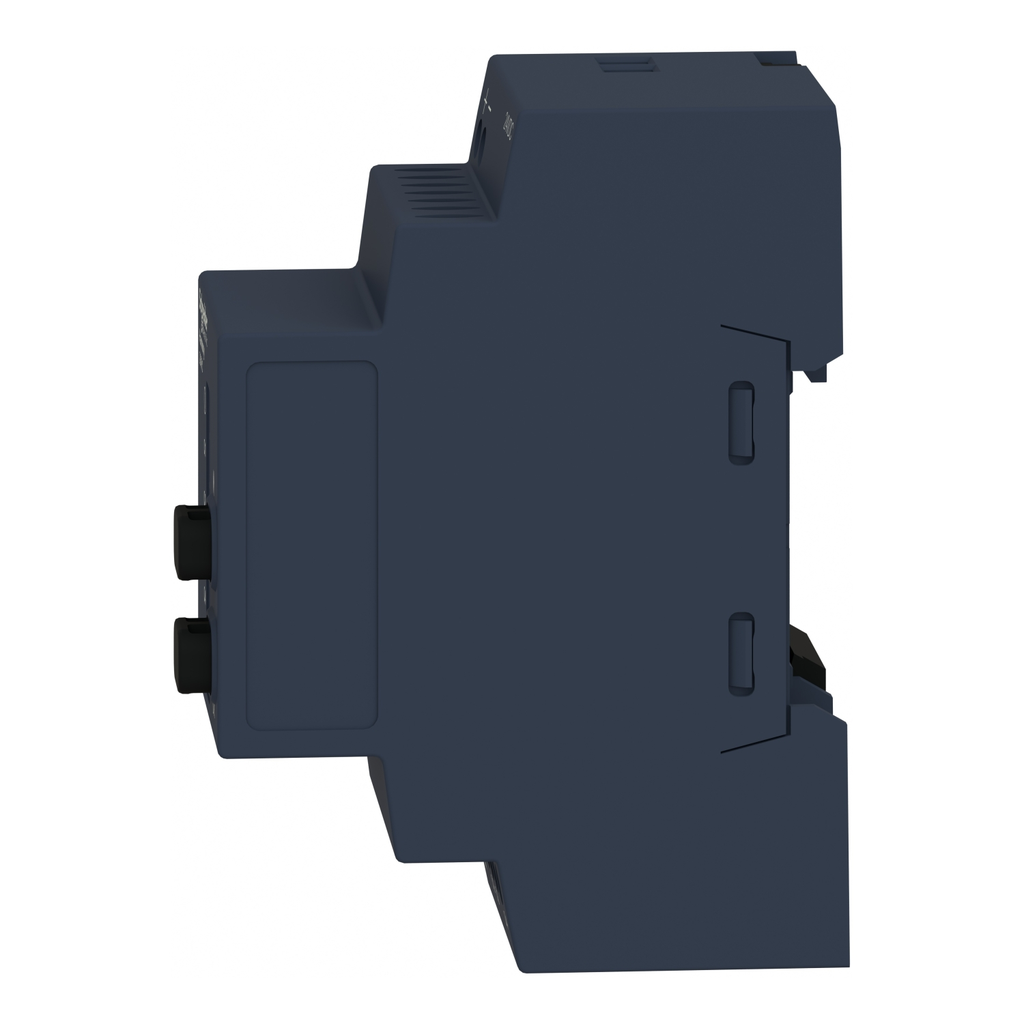

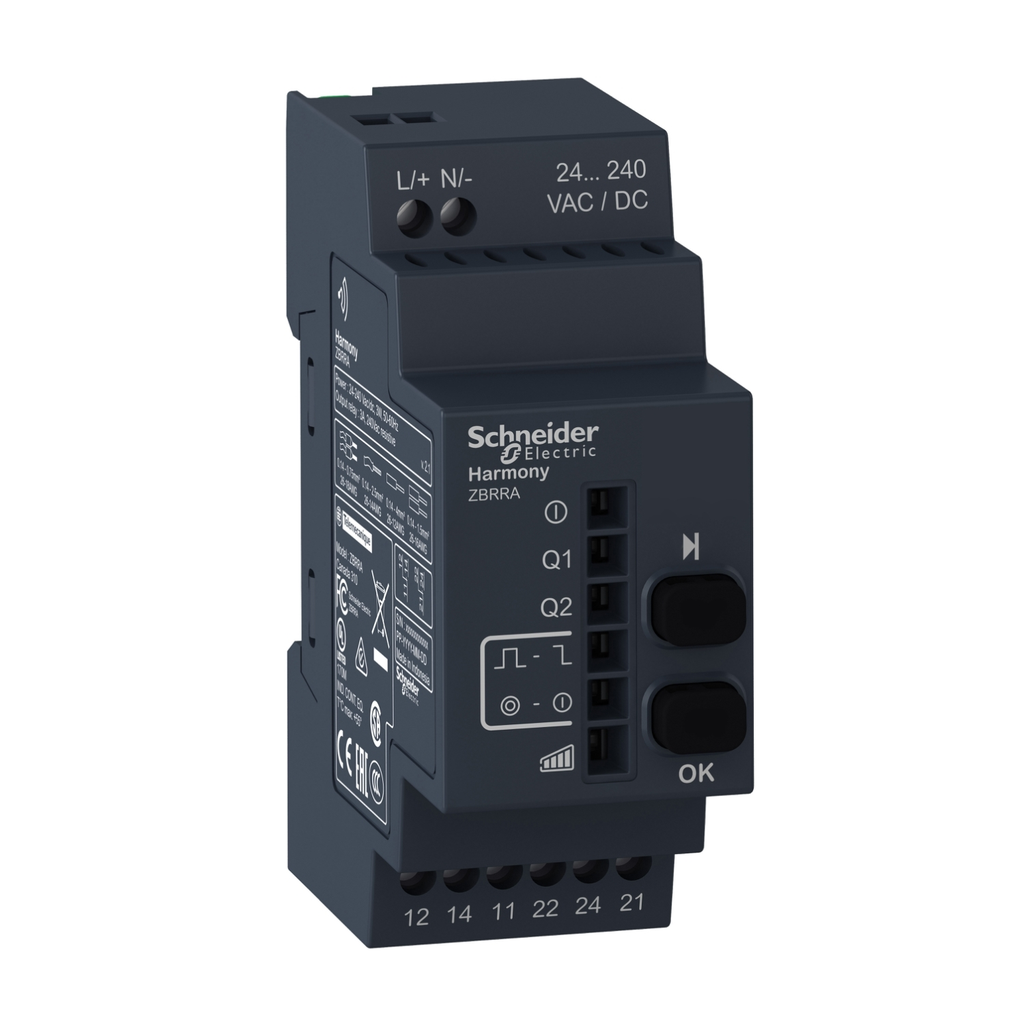

Square D ZBRRA 24 to 240 VAC/VDC 3 Amp 2-Relay Batteryless Push Button Programmable Receiver

Manufacturer: Square-D / Schneider | Catalog # ZBRRA | Cooper Electric Part # 668802
$430.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. It features 2 relay outputs type RT 3A. Its supply voltage is 24V to 240V AC/DC. It weighs 130g.

Technical Information

Amperage
5m Amp
Applications
Interface to actuators
Contact Configuration
2 NO + 2 NC
Indicator
1 LED, COLOR: GREEN FOR POWER ON-2 LEDS, COLOR: GREEN FOR RELAY ON-2 LEDS, COLOR: GREEN FOR FUNCTION MODE-1 LED, COLOR: GREEN AND YELLOW FOR RECEPTION SIGNAL
Material
Plastic
Net Weight
0.13 kg
Number of Channels
1
Response Time
< 30 ms after transmitter clicks
Size
2.95 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
1 CONDUCTOR CABLE 0.14-2.5 MMA - AWG 26...AWG 14 - SOLID - WITHOUT CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.14-1.5 MMA - AWG 26...AWG 16 - SOLID - WITHOUT CABLE END IEC 60947-1-1 CONDUCTOR CABLE 0.14-4 MMA - AWG 26...AWG 12 - FLEXIBLE - WITH CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.14-1.5 MMA - AWG 26...AWG 16 - FLEXIBLE - WITH CABLE END IEC 60947-1
Type
Bi-stable;Monostable;Stop/start;Programmable receiver
Voltage
250 VAC//VDC
Wattage
4 Watt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZBRRA

General Product Info

12-Digit UPC
606480334705
GTiN
03606480334702
Housing Material
Plastic
Product UPC
78590192141
Weight
0.13 kg

Dimensions

Depth
75 mm
Height
108 mm
Warranty Length
18 mth
Width
36 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CCC,CSA,GOST,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB4RTA1
  • ZB4RTA2
  • ZB4RTA3
  • ZB4RTA4
  • ZB4RTA5
  • ZB5RTA1
  • ZB5RTA2
  • ZB5RTA3
  • ZB5RTA331
  • ZB5RTA4
  • ZB5RTA432
  • ZB5RTA5
  • ZB5RTA6
  • ZB5RTC2
