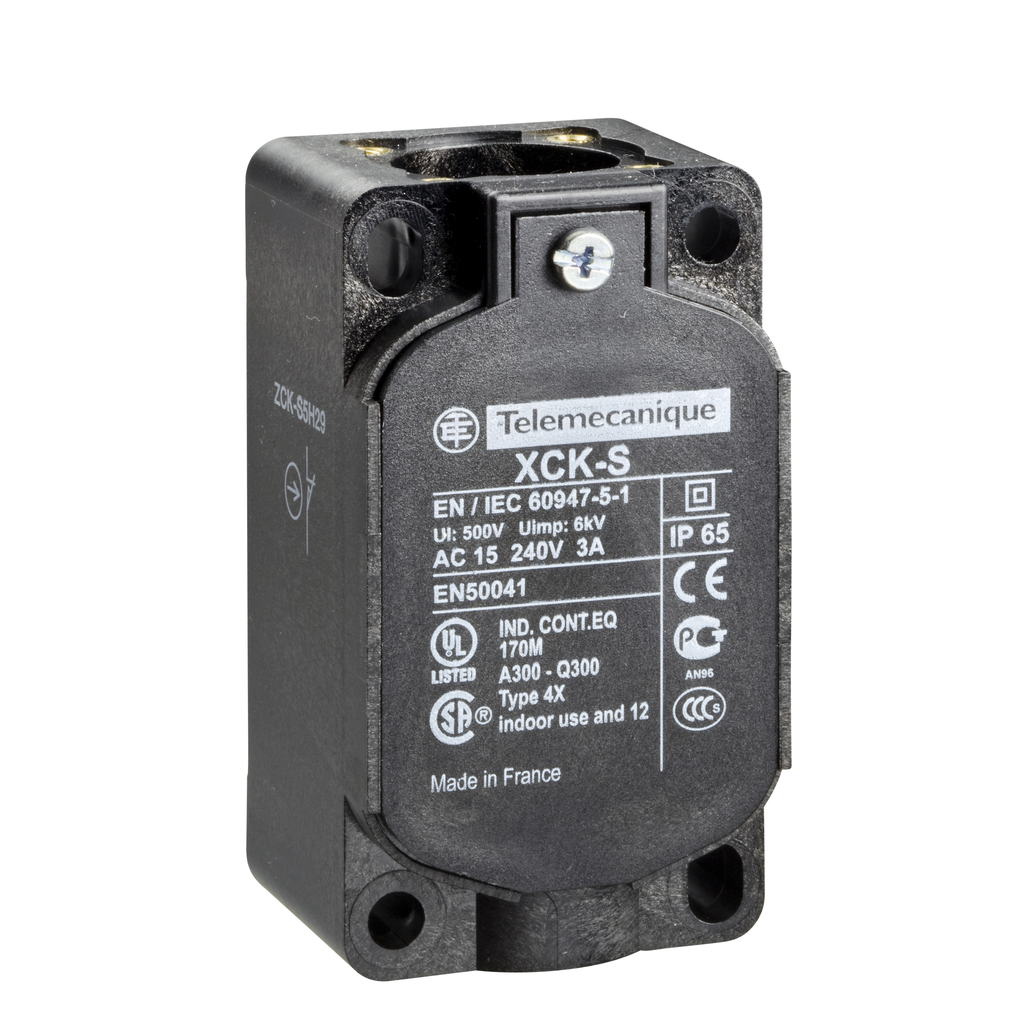

Product image for TES ZCKS2 Limit switch body, Limit switches XC Standard, ZCKS, 2C/O, snap action, Pg13.5
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES ZCKS2 Limit switch body, Limit switches XC Standard, ZCKS, 2C/O, snap action, Pg13.5

Manufacturer: TES Electric | Catalog # ZCKS2 | Cooper Electric Part # 663677
$86.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This body, with a 2-pole contact bloc,k is a separate part for the XCKS limit switches. Contacts: 2 CO simultaneous, snap action. It is a plastic, double insulated body, in EN 50041 format, with 1 Pg 13.5 cable entry.

Technical Information

Action
SNAP ACTION
Amperage
10 Amp
Applications
XCKS
Body Material
Plastic
Body Type
Fixed
Cable Entry
1 entry tapped for Pg 13.5 cable gland
Contact Configuration
2 C/O
Contact Material
Silver Plated Contacts
Enclosure
IP65
Net Weight
0.08 kg
Number of Poles
2 Pole
Number of Steps
1 1
Operating Cycles
5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C STANDARD ENVIRONMENT
Size
36 MM,40 MM,73-73 MM
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.75...2 X 1.5 MMA
Type
LIMIT SWITCH BODY
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
ZCKS

General Product Info

12-Digit UPC
389110645845
Environmental Conditions
STANDARD ENVIRONMENT
GTiN
03389110645842
Product UPC
78590185583
Weight
0.18 lb

Dimensions

Depth
36 mm
Height
73-73 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
