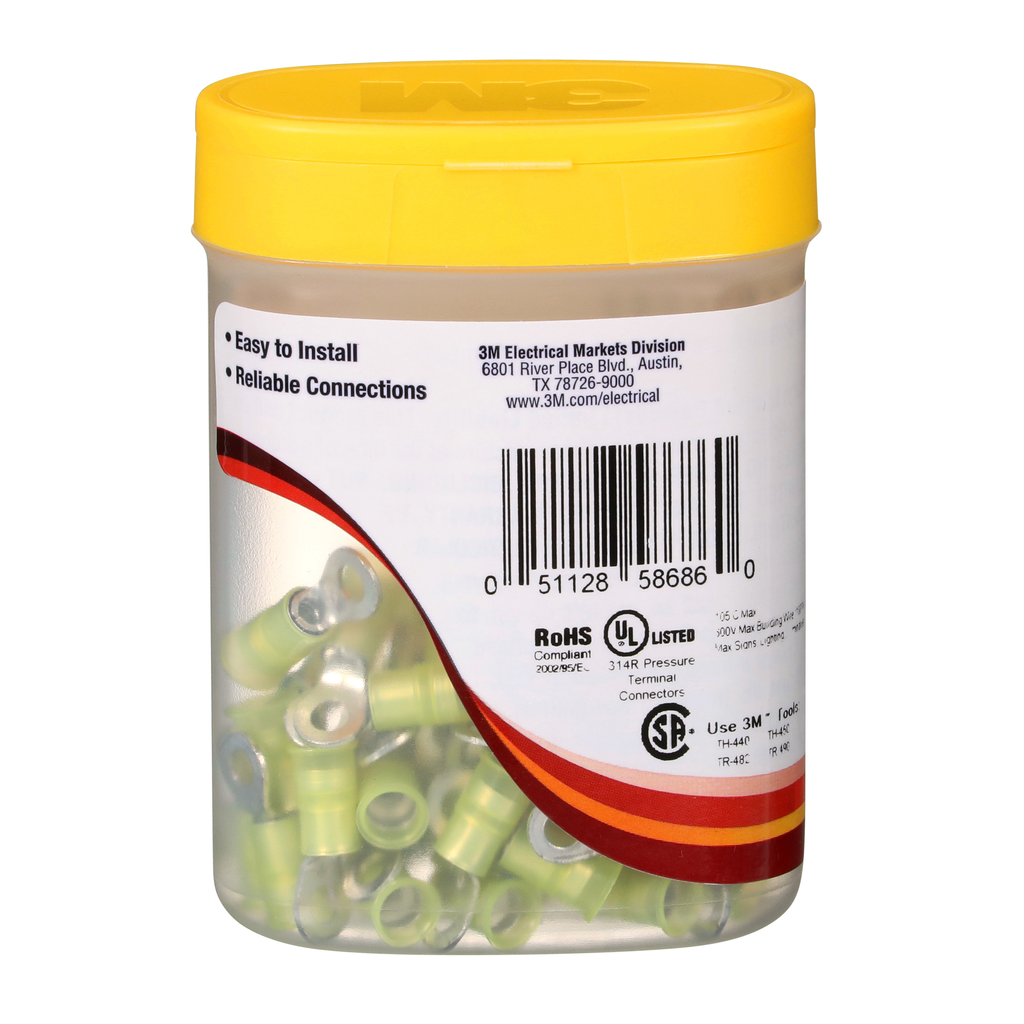

3M MNG10-10RX 50/Bottle Nylon Insulated Ring

Manufacturer: 3M | Catalog # 7000133297 | Cooper Electric Part # 663370
$2.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

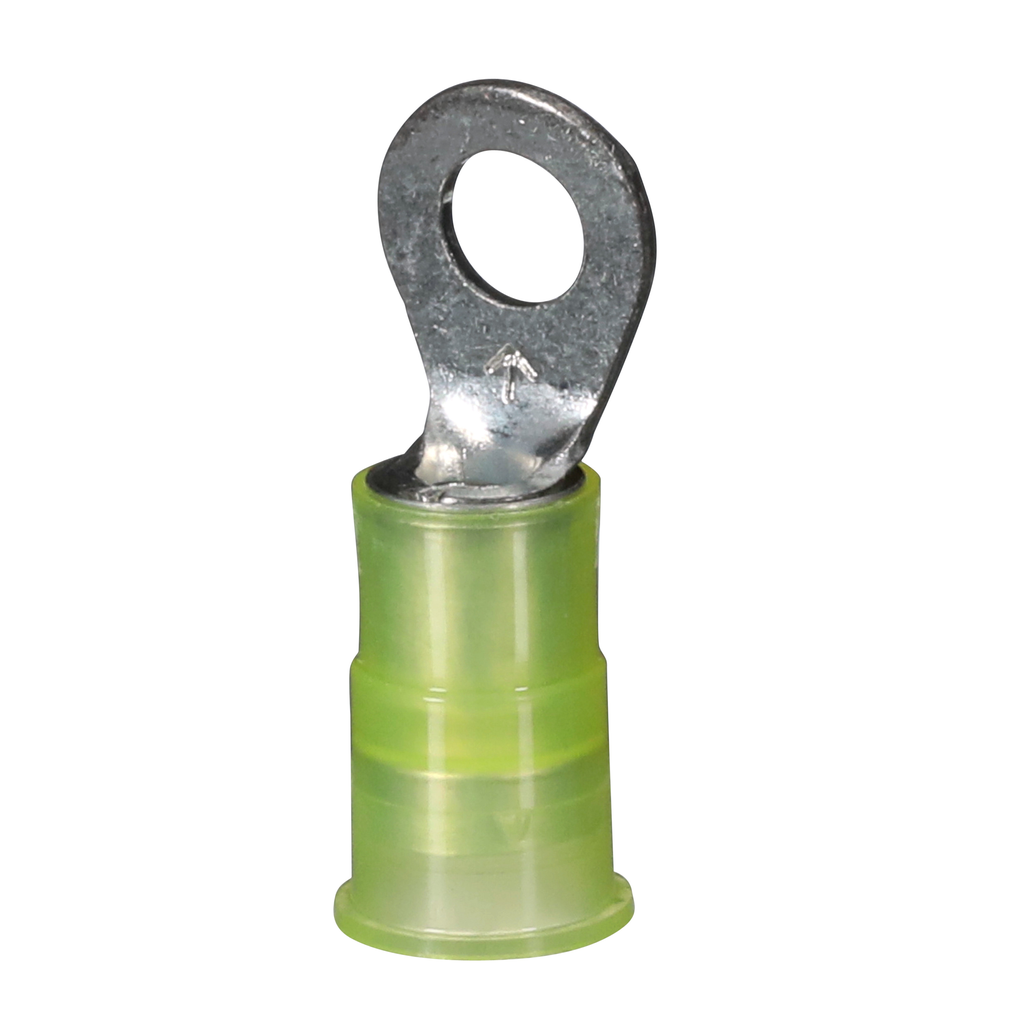

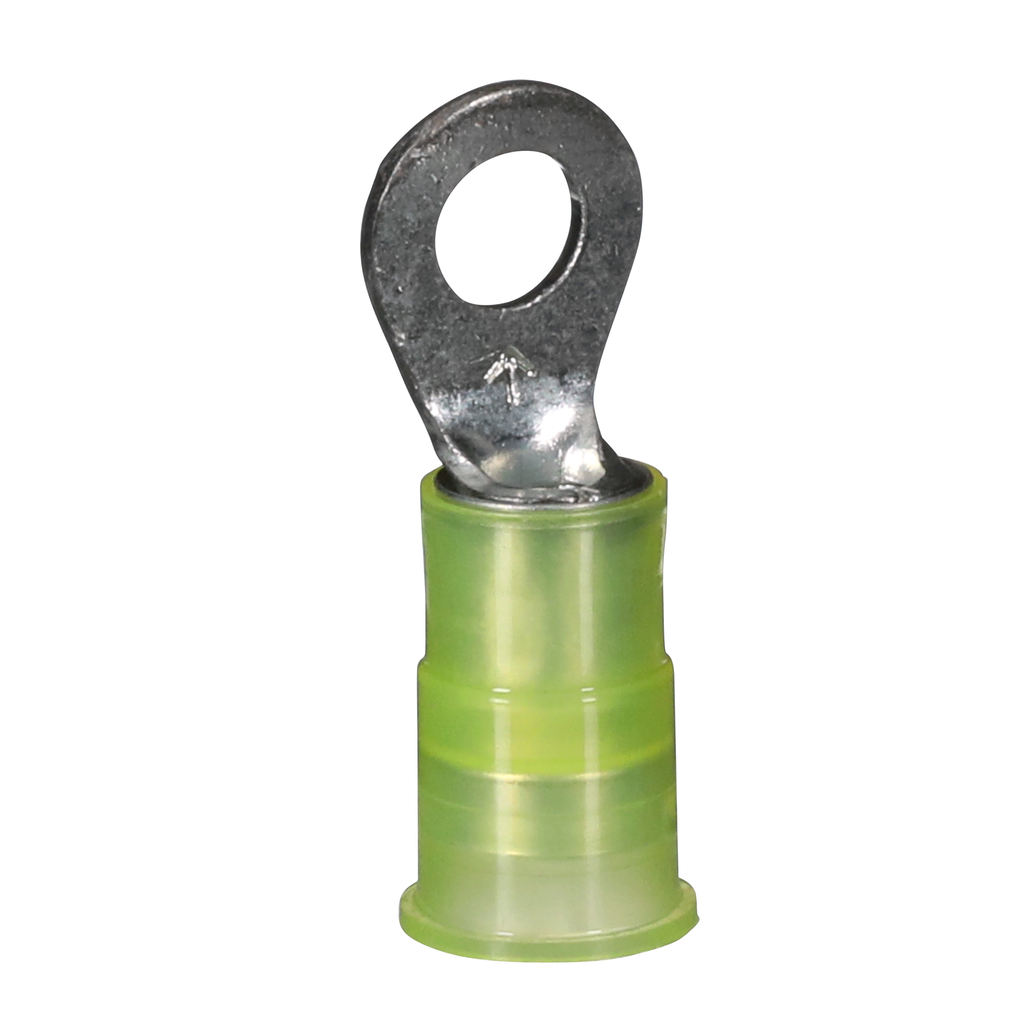

3M™ Scotchlok™ Ring Tongue with nylon insulation ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Available in both bottle and bulk packaging. 3M™ Scotchlok™ Ring Tongues are UL Recognized and CSA certified.

Technical Information

Barrel Type
Butted
Conductor Size
10 AWG
Insulation Material
Insulation Grip,Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Terminal Size
12 - 10 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Bell End

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128586860
Color
Yellow
GTiN
00051128586860
Product UPC
05112858686

Dimensions

Length
1.03 Inch
Overall Length
1.03 in
Thickness
0.04 in
Width
0.38 in

Certifications and Compliance

Country of Origin
USA
Features

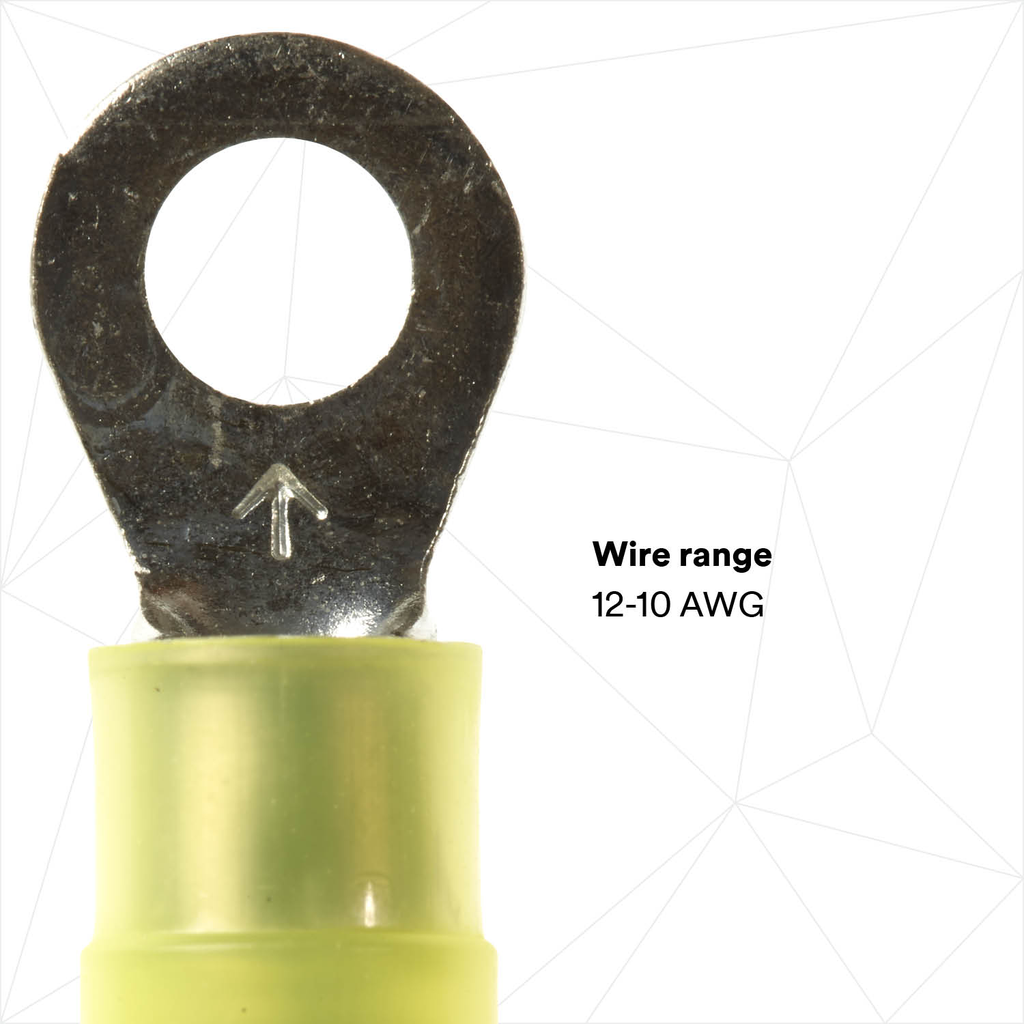

  • WIRE RANGE: 12-10 AWG
  • MAX. TEMPERATURE RATING: 221 °F (105 °C)
  • INSULATOR MATERIAL: Nylon-insulated
  • TERMINAL MATERIAL: ETP copper
  • TERMINAL PLATING: Features tin plating
  • UL LISTED AND CSA CERTIFIED: For use on stranded copper (AWG) wire only
