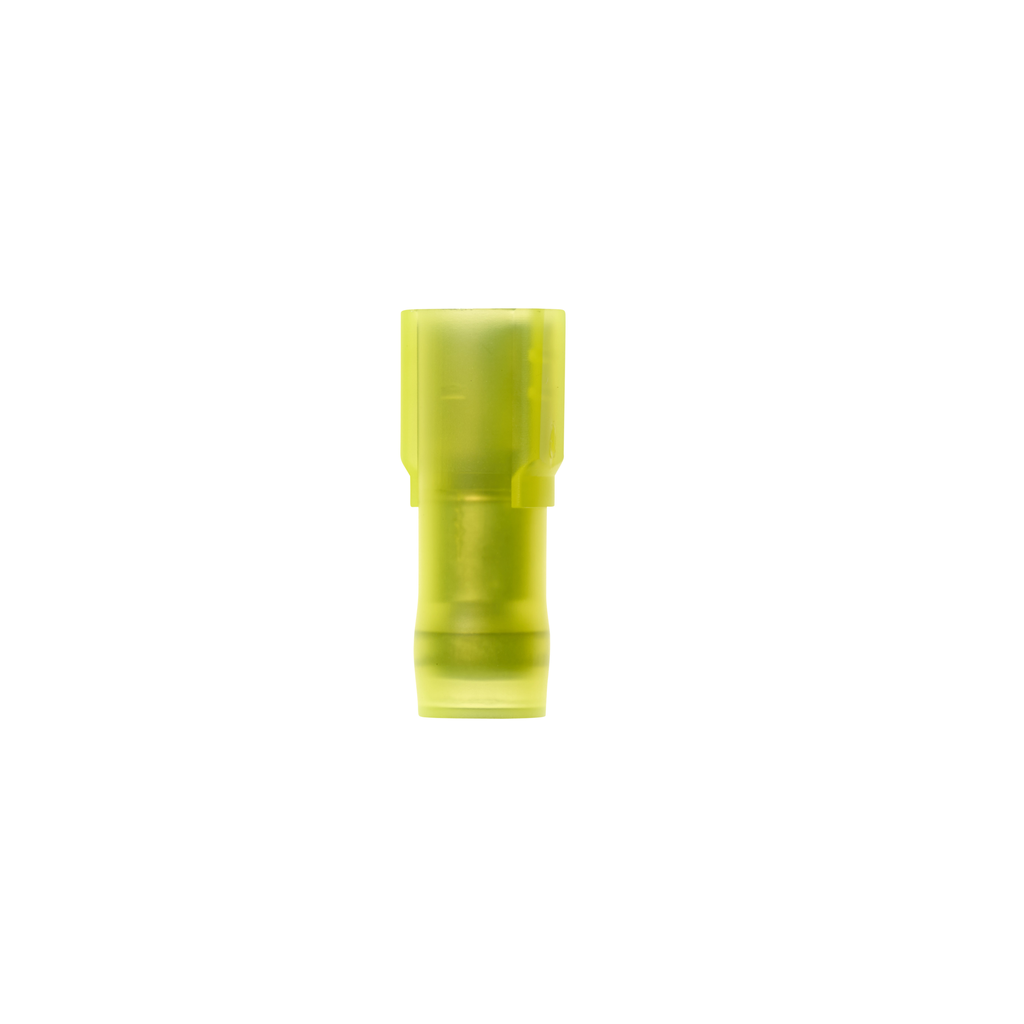

Product image for 3M MNGI10-250DFIX 50/Bottle Nylon Insulated Female Disconnect
Email

3M MNGI10-250DFIX 50/Bottle Nylon Insulated Female Disconnect

Manufacturer: 3M | Catalog # 7000133398 | Cooper Electric Part # 662785
$2.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Applications
For Quick and Easy Disconnect of Wires
Barrel Length
0.25 in
Barrel Type
Butted Seam with Interlocking
Conductor Size
12-10 AWG
Connection Type
Wire
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Tab Size
1/4 in W x 0.032 in T
Temperature Rating
-40 to 105 degrees C
Terminal Size
12 - 10 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
Disconnect
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589205
Color
Yellow
Finish
Tin Plated
GTiN
00051128589205
Product UPC
05112858920

Dimensions

Diameter
0.23 Inch
Length
0.94 Inch
Overall Length
0.94 in
Thickness
0.032 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
