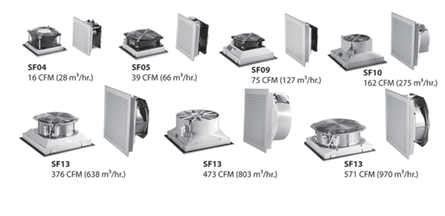

Product image for Hoffman SF1016413 IP54 10" Filter Fan 115V 9011
Email

Hoffman SF1016413 IP54 10" Filter Fan 115V 9011

Manufacturer: Hoffman | Catalog # SF1016413 | Cooper Electric Part # 660304
$347.11/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Click-fit design quickly installs into enclosure wall; no tools or screws required. Simple snap open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam in place gasket. Similar cut out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
0.5 Amp
Applications
Industrial
Current
.53/.50 Amp
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Number of Phases
1 Phase
Size
9.84x9.84x4.72 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type
SF10 162 CFM (275 m3/hr.) Side-Mount Filter Fan
Voltage
115 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510200367
Finish
Black
GTiN
00783510200367
Product UPC
78351020036
Weight
4.19 lb

Dimensions

Depth
4.72 Inch
Height
9.84 Inch
Width
9.84 in
Features
  • Enclosure side wall mounting
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Standard foam-in-place gasket
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Optional thermostat available to save energy and extend service life
  • Terminal wire connections
  • Simple snap-open grille for easy filter replacement
  • Similar cut-out sizes as other filter fan manufacturers
Applications
  • Industrial automation
  • Food and beverage process controls
  • Wind energy systems
  • Automotive assembly
  • Package handling equipment
Accessories
  • Rain shroud
  • Replacement filters
  • Thermostat
Finish
  • RAL 9011 black, UV-resistant plastic optional
  • RAL 7035 light-gray, UV-resistant plastic standard
Specifications
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Service life hours from 40000 to 70000 hours
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
