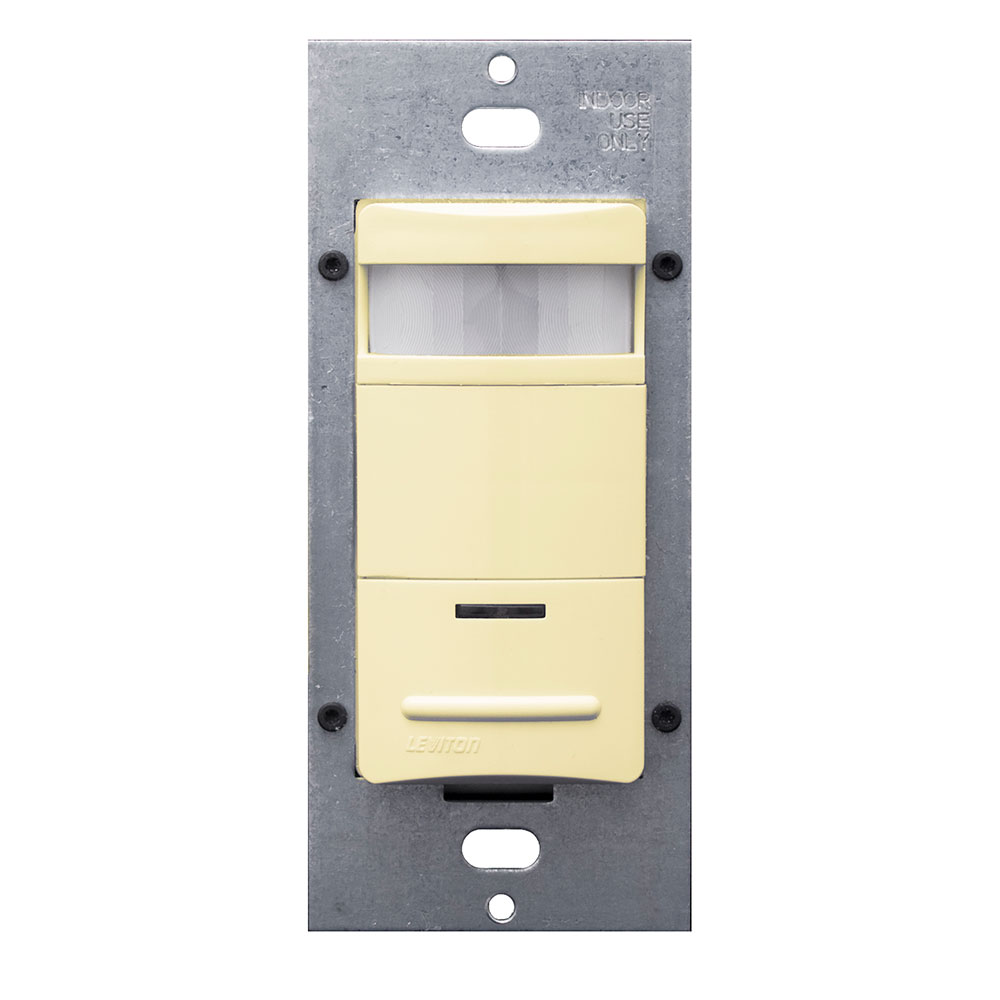

Product image for LEV ODS15-IAI PIR OCC SNSR USA 15A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV ODS15-IAI PIR OCC SNSR USA 15A

Manufacturer: Leviton Mfg Co | Catalog # ODS15-IAI | Cooper Electric Part # 659271
$116.09/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Occupancy Sensor, PIR wall switch. 4000VA 15A Single Relay, Time Delay 30s-30m. 120/208/220/230/240/277VAC; 50/60Hz. 180 Degree Field of View and Blinders, Audible warning, ManualON/OFF Override, Auto Adapting, CEC Title 20/24 compliant. Made in USA with globally sourced components. Color: Ivory

Technical Information

Applications
Commercial
Coverage
2100 sq-ft
Frequency
50 Hz
Grade
Commercial
Mounting Type
Wall Switch
Operating Temperature
0 degrees
Power Consumption
100 m 280m W
Sensor Type
Wall Switch
Size
47 mm
Standard
CSA Certified (24),FCC Regulations,NOM Certified,UL Listed
Switch Type
Single-Pole,Single-Pole
Type
0-10 V,Multi-location/3-way/single-pole,Occupancy/Vacancy Sensor Dimmer
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477508862
Color
Ivory
Environmental Conditions
0 to 50 50 Deg C Operating
GTiN
00078477508862
Product UPC
07847750886

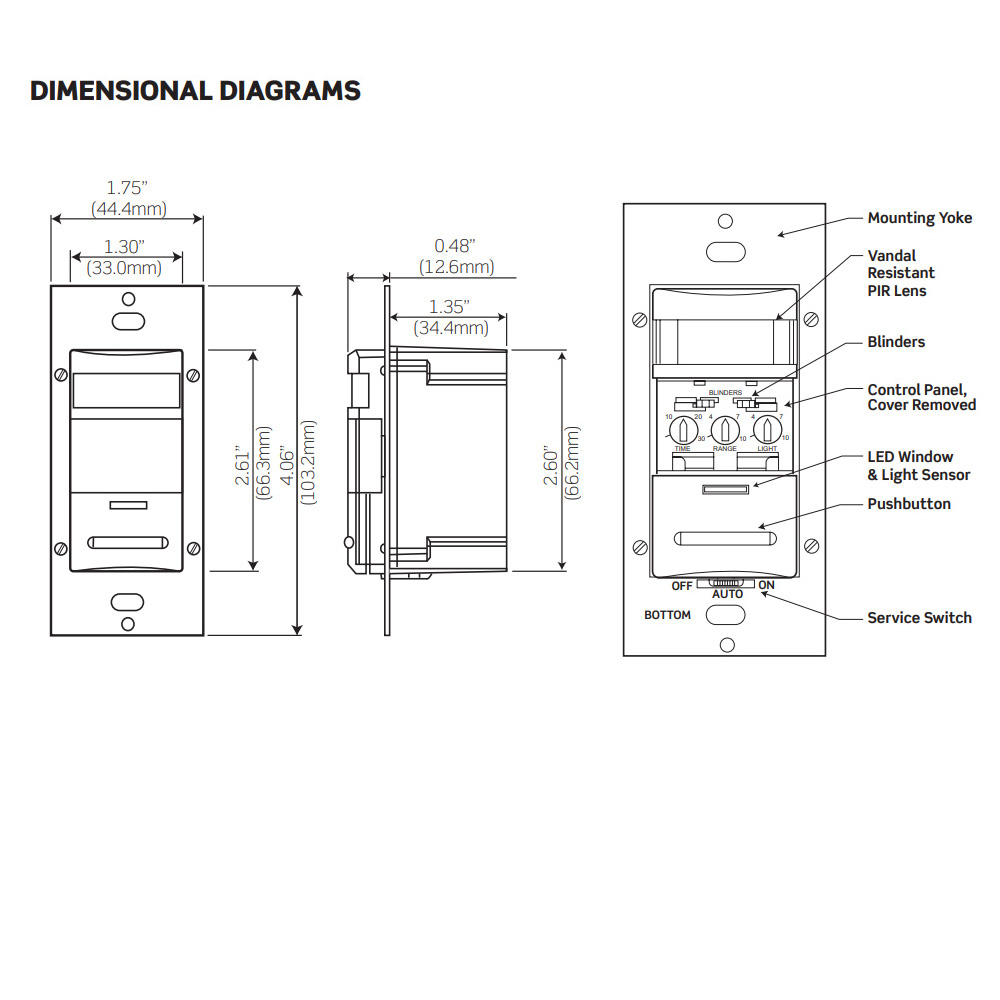

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
USA
Made In USA
Yes
Features

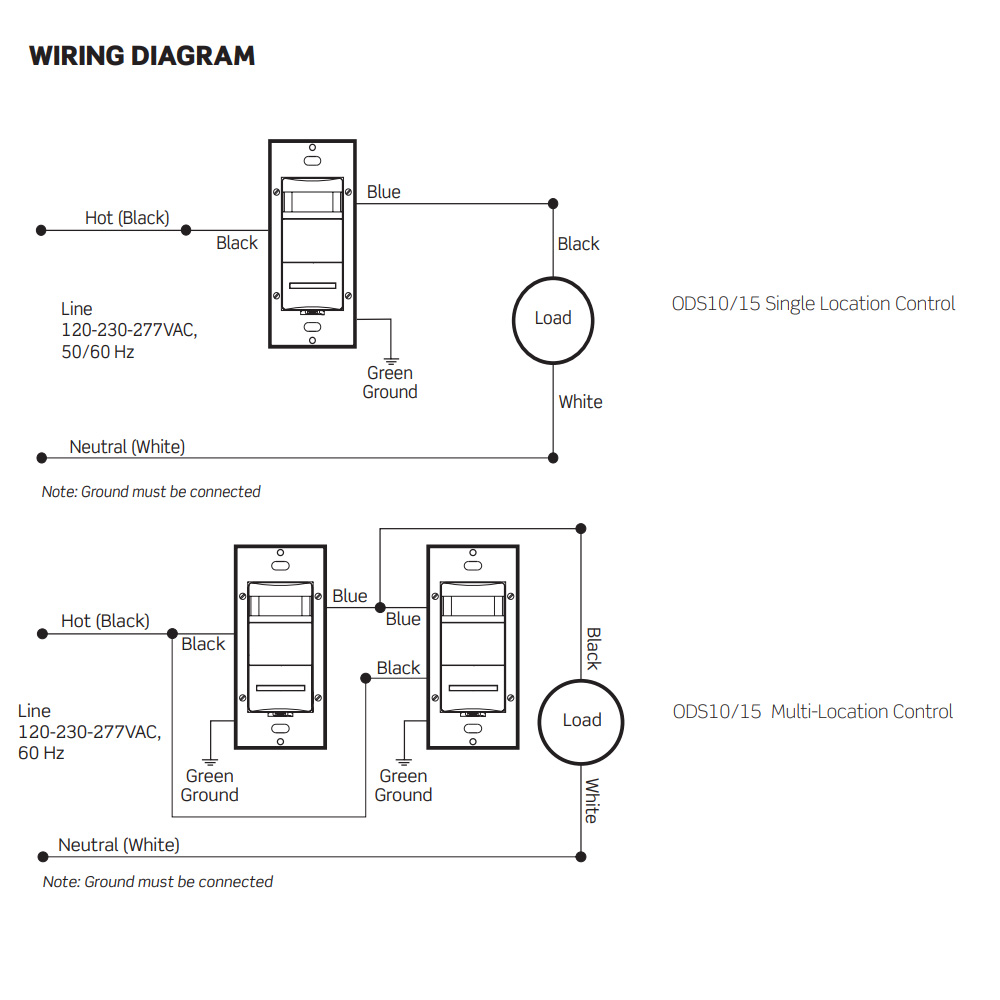

  • Fits in standard wallbox and replaces single-pole wall switch; ground connection required. Gangable with other units.
  • Low-profile design eliminates obtrusive scanning-device look. Elegant Decora wallplates comple-ment any interior for sleek aesthetics; uses Decora wallplates and coordinates with Levitons popular line of Decora wiring devices.
  • 180° field-of-view provides approximately 2100 square feet of coverage suitable for small offices, conference rooms, class rooms, stock rooms, loung-es, private restrooms and a variety of commercial areas.
  • Convenient pushbutton provides manual-ON/OFF light switching at any time.
  • Two dual element PIR sensors used to widen detec-tion range.
  • Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive minor motion area where even slight body movements will be detected.
  • Vandal resistant PIR lens.
  • Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
  • Manual-ON/auto-OFF mode for installations where manual ON switching is required but auto-OFF switch-ing is still desired for CEC Title 24 energy savings.
  • To comply with Title 24, red LED indicator light flashes when PIR sensor detects motion to verify detection is active.
  • Time Delay - In adapting mode, the time delay can be configured from 30s (test mode), 5, 10, and 20 minutes. In non-adapting mode, the delay can be configured from 5, 10, 20, and 30 minutes.
  • Light Sensor adjustable Ambient Light Override ranges from approxi-mately 2Fc (20LUX) to 500+FC (5000+LUX) to prevent lights from turning ON auto-matically during periods of ample natural light, increasing energy savings.
  • Light sensor enables the load hold-OFF feature once level has been set.
  • Self-adjusting delayed-OFF time interval compen-sates for real-time occupancy patterns, preventing unnecessary ON/OFF switching.
  • Exclusive Walk-Through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy.
  • Vacancy Confirmation, when the time out expires and the relays turn OFF a 30 second vacancy con-firmation exists to turn the relays back ON.
  • False detection circuitry.
  • Presentation Mode feature for slide or film presen-tations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied.
  • Additional manual service switch provided for installer to force lights to hold-OFF or hold-ON during installation.
  • Beep Warn - unit beeps 3 times after delayed-OFF time expires, then waits 10 seconds before turning lights OFF.
  • Exclusive Levition H.I.S. Circuitry. Specifically designed to handle todays high inrush electronic ballast loads and offer unmatched durability and service.
  • One unit can be used for 120V through 277V light-ing. Compatible with both electronic and magnetic ballasts.
  • Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts.
  • No neutral design in optional for retrofit applications.
  • The ODS15-ID occupancy sensor uses passive infrared (PIR) detection technology to monitor a room for occupancy through a segmented Fresnel lens. Do you have a question about an occupancy sensor or vacancy sensor?
