Square D SC12L200S Meter Main Ring Type Surface OH/UG 200A

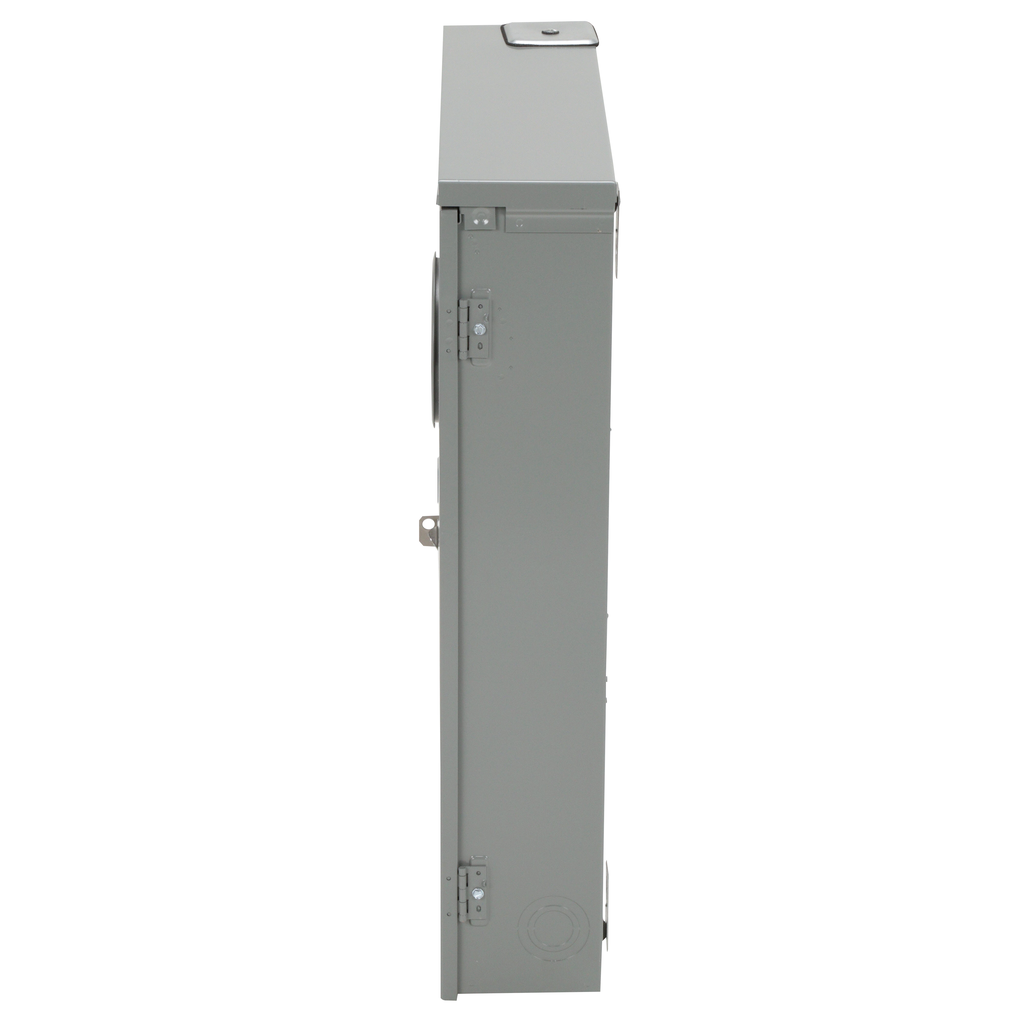

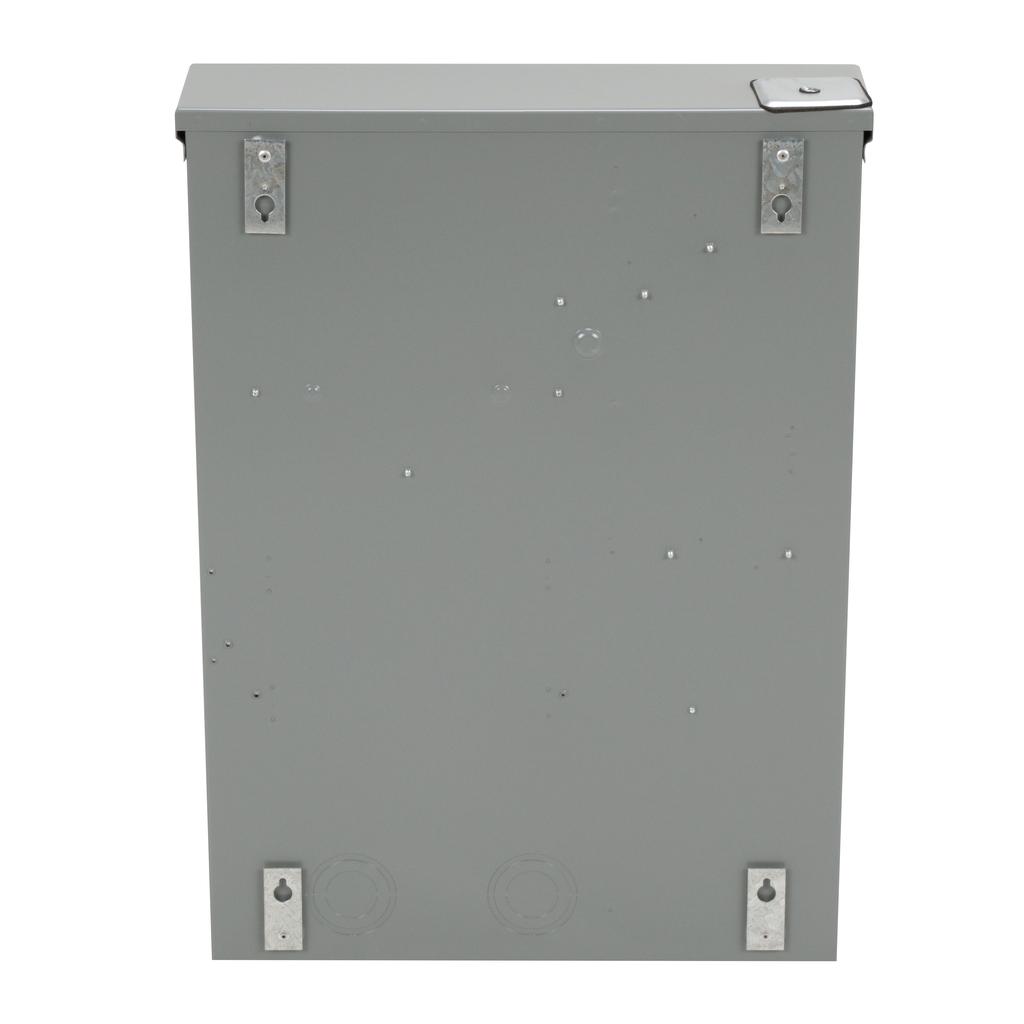

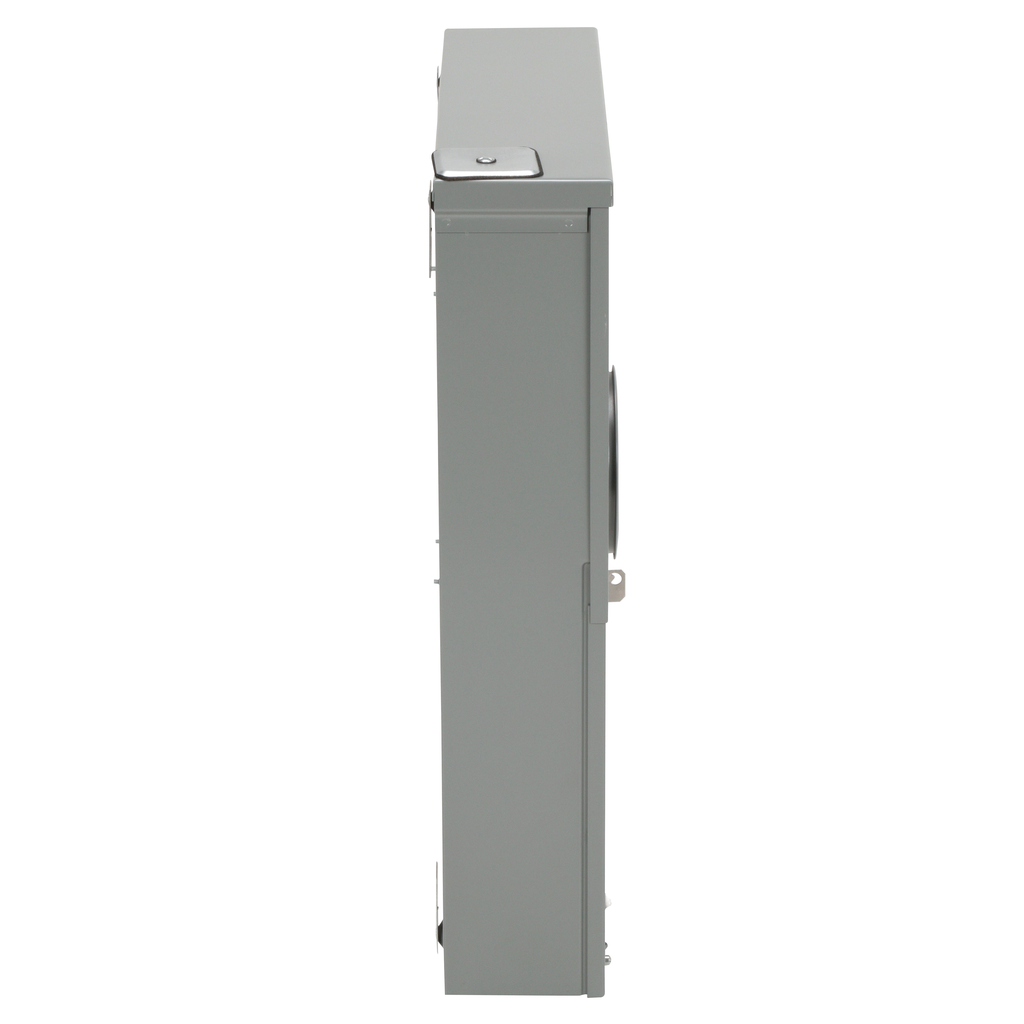

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline combination service entrance meter main unit has a ringed meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect is six HOM circuit breakers with a maximum rating of 200 A. Circuit breakers are ordered separately. Device has a 10 kA short circuit current rating. Load center has no spaces. This unit has a NEMA 3R surface mounting enclosure that is 29.50 inches tall, 21.50 inches wide and 5.80 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.
