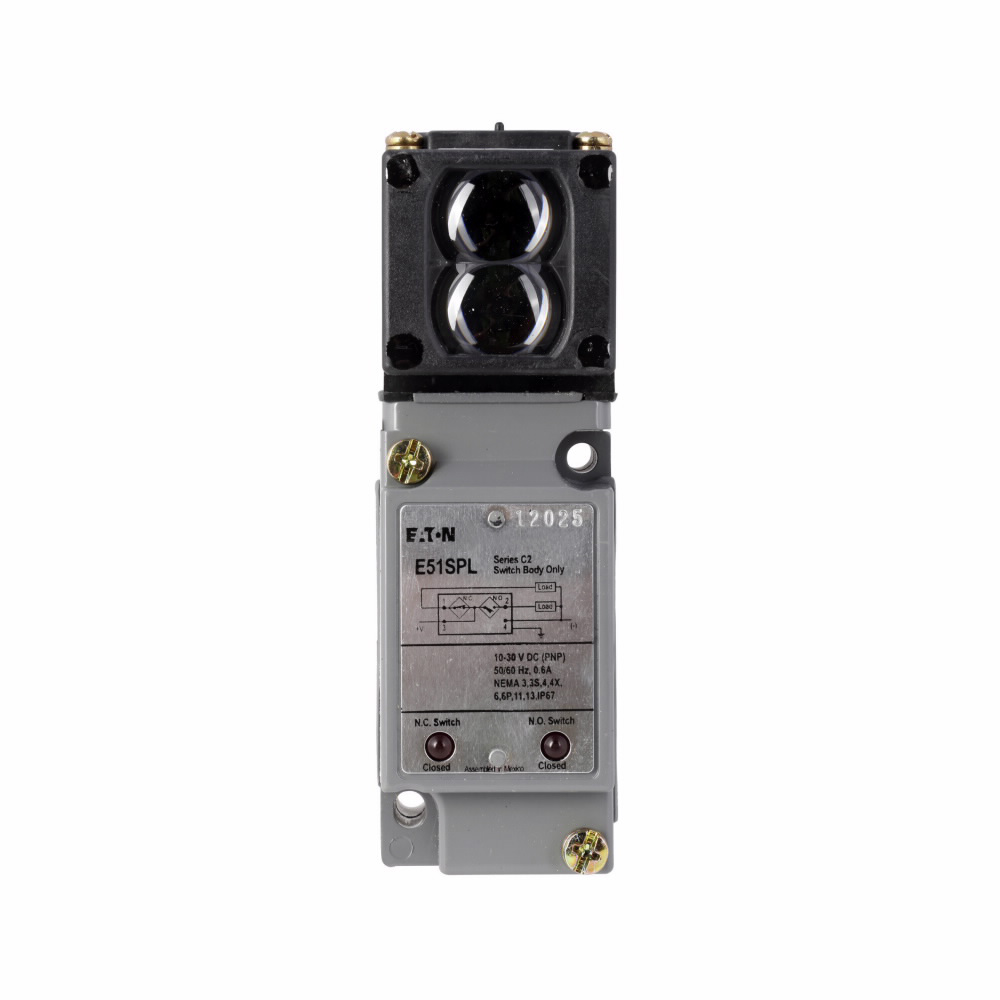

Product image for ETN E51SPL IND PROX SWITCH BODY ONL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

ETN E51SPL IND PROX SWITCH BODY ONL

Manufacturer: Cutler-Hammer / Eaton | Catalog # E51SPL | Cooper Electric Part # 659128
$331.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton E51 NEMA limit switch inductive proximity sensor, Inductive Proximity Sensor, E51, Output ON (1 LED per output), 600 mA, Complementary PNP open collector, 10-30 Vdc

Technical Information

Applications
Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory
Connection Type
Plug-in
Contact Configuration
Complementary PNP Open Collector
Enclosure Material
Zinc Die Cast
Input Voltage
10 V
Material
Zinc Die Cast
Maximum Load Current
600 mA DC
Operating Temperature
-13 To 158 degrees F
Output
1 NO, 1 NC (NPN), Auto Reset
Temperature Rating
-13 to 158 degrees F
Type
E51
Voltage
10-30 VDC

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113363141
GTiN
00782113363141
Product Series
E51
Product UPC
78211336314
Used With
Limit Switch Style Modular Sensors
Weight
.3 lb

Dimensions

Height
1.73 Inch
Length
3.14 Inch
Width
1.54 in
