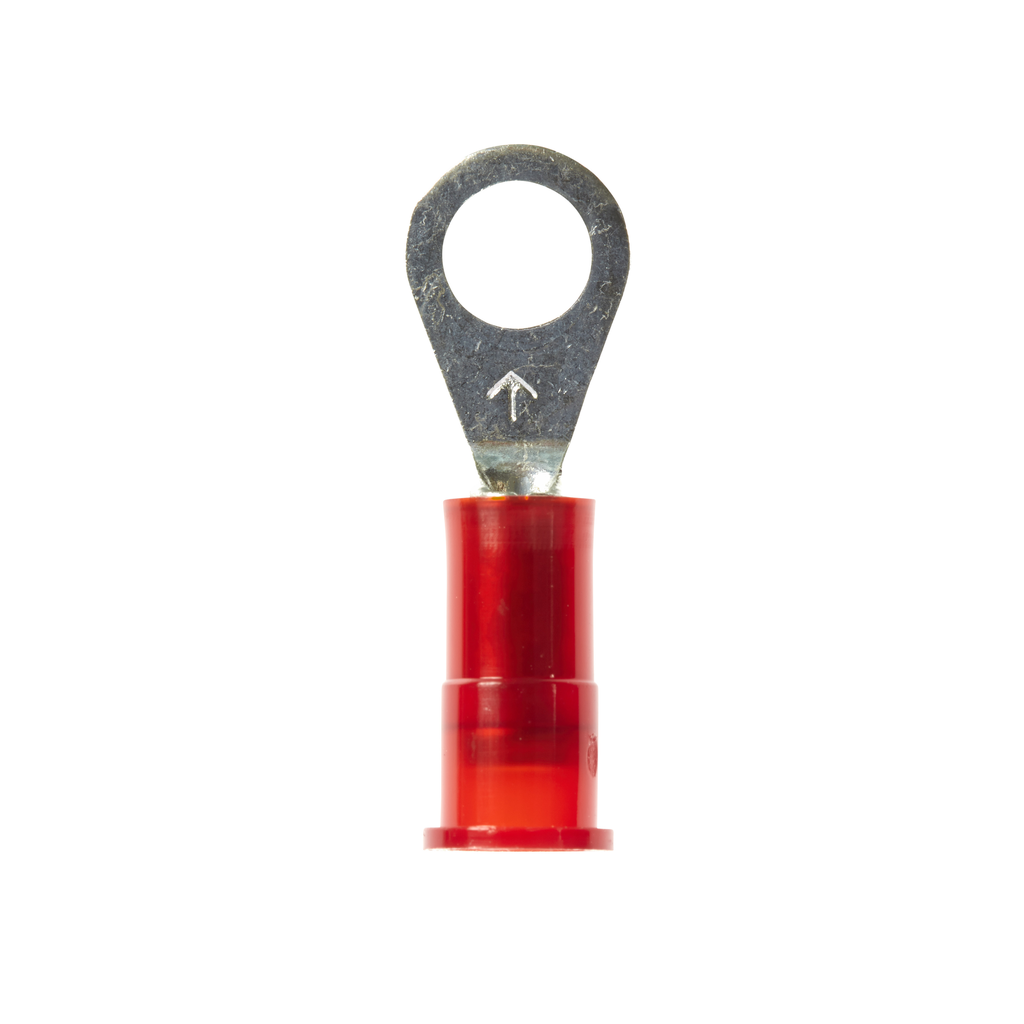

Product image for 3M MNG18-10R/LX 100/Bottle Nylon Insulated Ring
Email

3M MNG18-10R/LX 100/Bottle Nylon Insulated Ring

Manufacturer: 3M | Catalog # 7000133272 | Cooper Electric Part # 657788
$1.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Ring Tongue with nylon insulation ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Available in both bottle and bulk packaging. 3M™ Scotchlok™ Ring Tongues are UL Recognized and CSA certified.

Technical Information

Barrel Type
Butted
Conductor Size
22-18 AWG
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
10
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Bell End

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128586433
Color
Red
GTiN
00051128586433
Product UPC
05400721817

Dimensions

Length
0.92 Inch
Overall Length
0.92 in
Thickness
0.03 in
Width
0.31 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
