TES ZCT21G11 Limit switch body, Limit switches XC Standard, ZCT, compact, 1NC+1 NO, snap action, Pg11

Manufacturer: TES Electric | Catalog # ZCT21G11 | Cooper Electric Part # 656031
$36.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

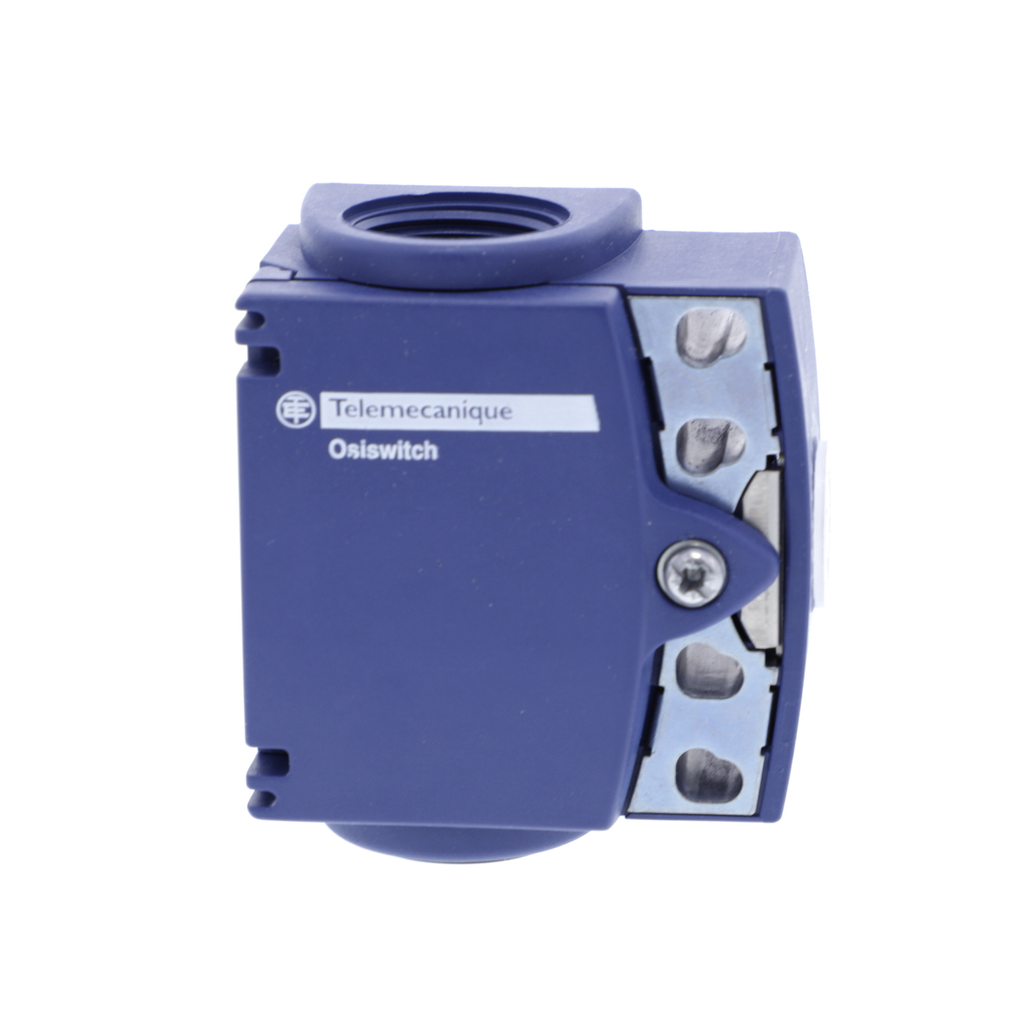

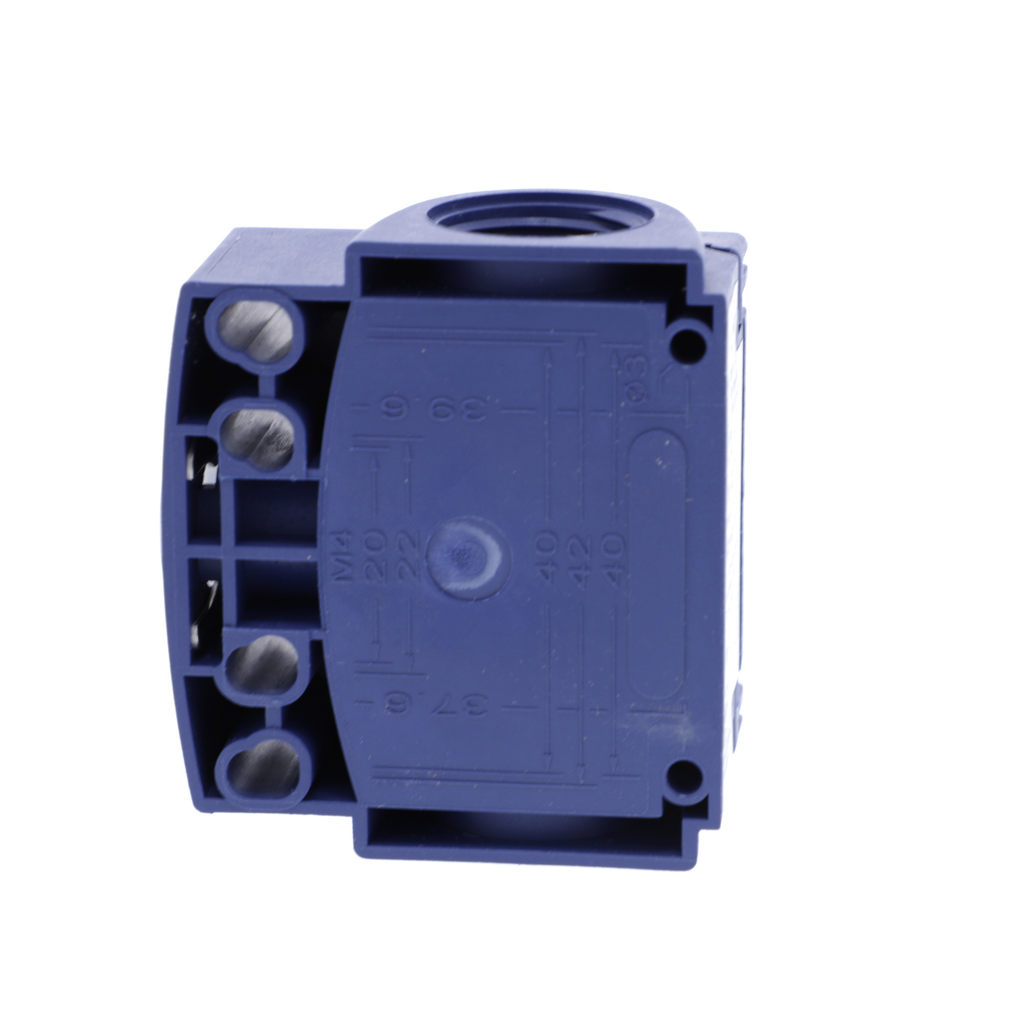

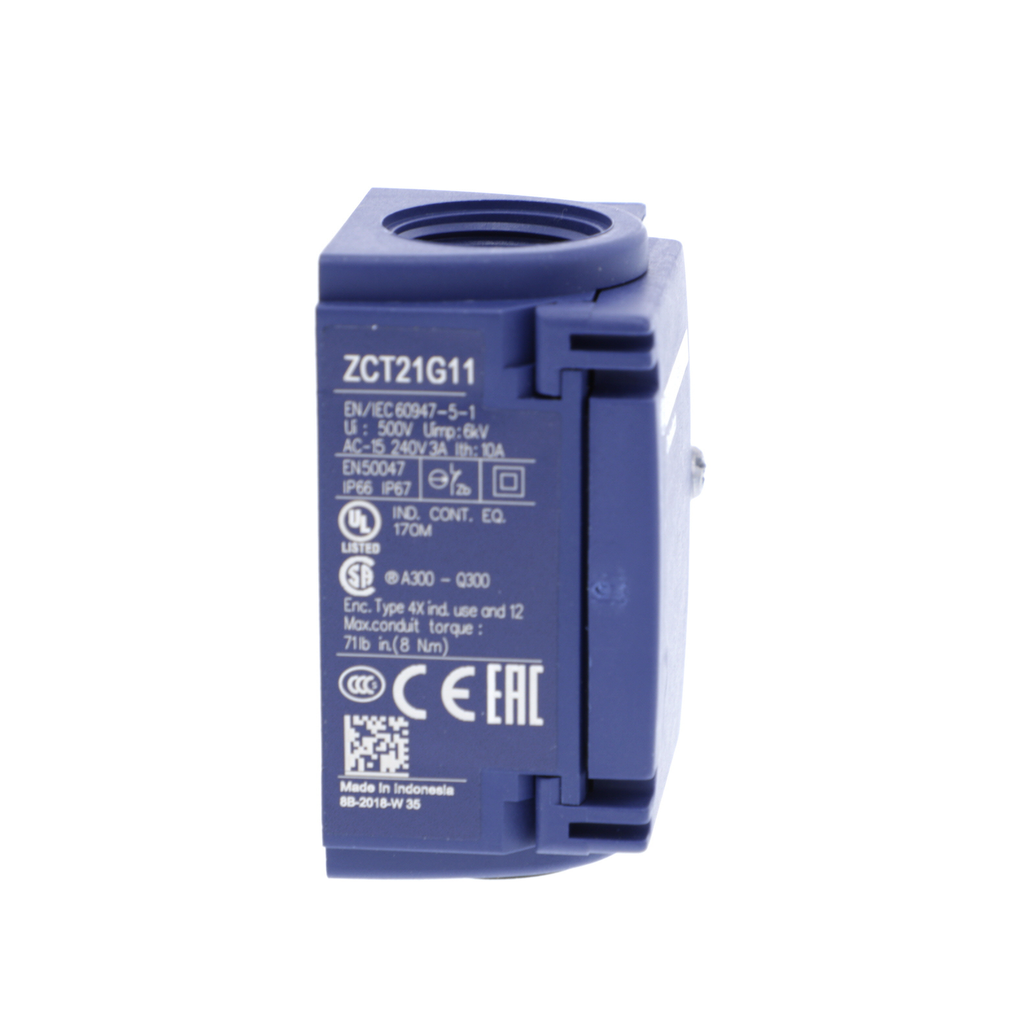

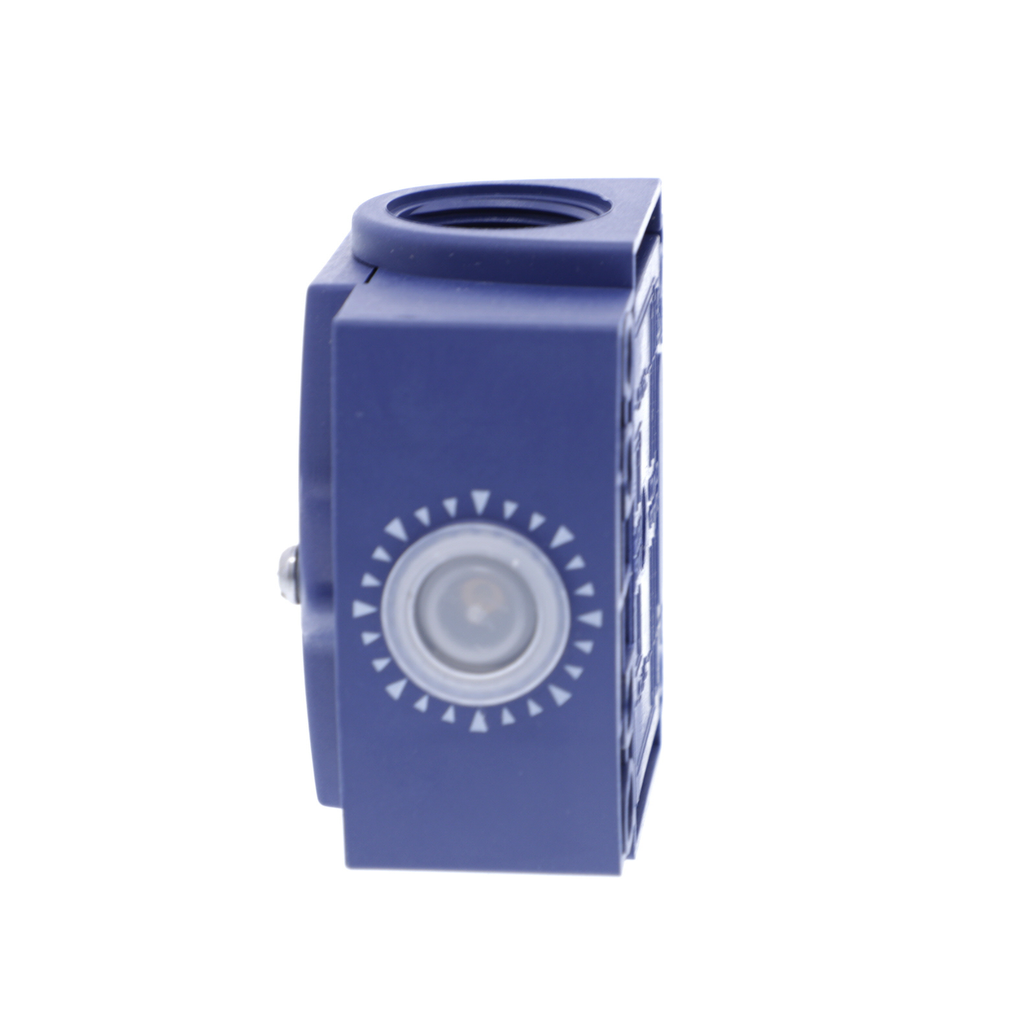

This ZCT body/contact assembly with connector has standard contacts and a plastic body. It has 1 x NO + 1 x NC snap action contacts and a Pg 11 cable gland. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Technical Information

Action
Snap action
Applications
XCKT
Body Material
Plastic
Body Type
Fixed
Cable Entry
2 entries tapped for Pg 11 cable gland 0.160.31 in (48 mm)
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Plated Contacts
Net Weight
0.13 kg
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA
Type
Limit switch body

Manufacturer Information

Brand
Telemecanique
Sub Brand
ZCT

General Product Info

12-Digit UPC
389110184122
GTiN
03389110184129
Product UPC
78590144028
Weight
0.29 lb

Dimensions

Depth
30 mm
Height
51-51 mm
Warranty Length
18 mth
Width
58 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
