SQUARED ZB5AA7341 Head for double h

Manufacturer: Square-D / Schneider | Catalog # ZB5AA7341 | Cooper Electric Part # 655740
$29.03/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

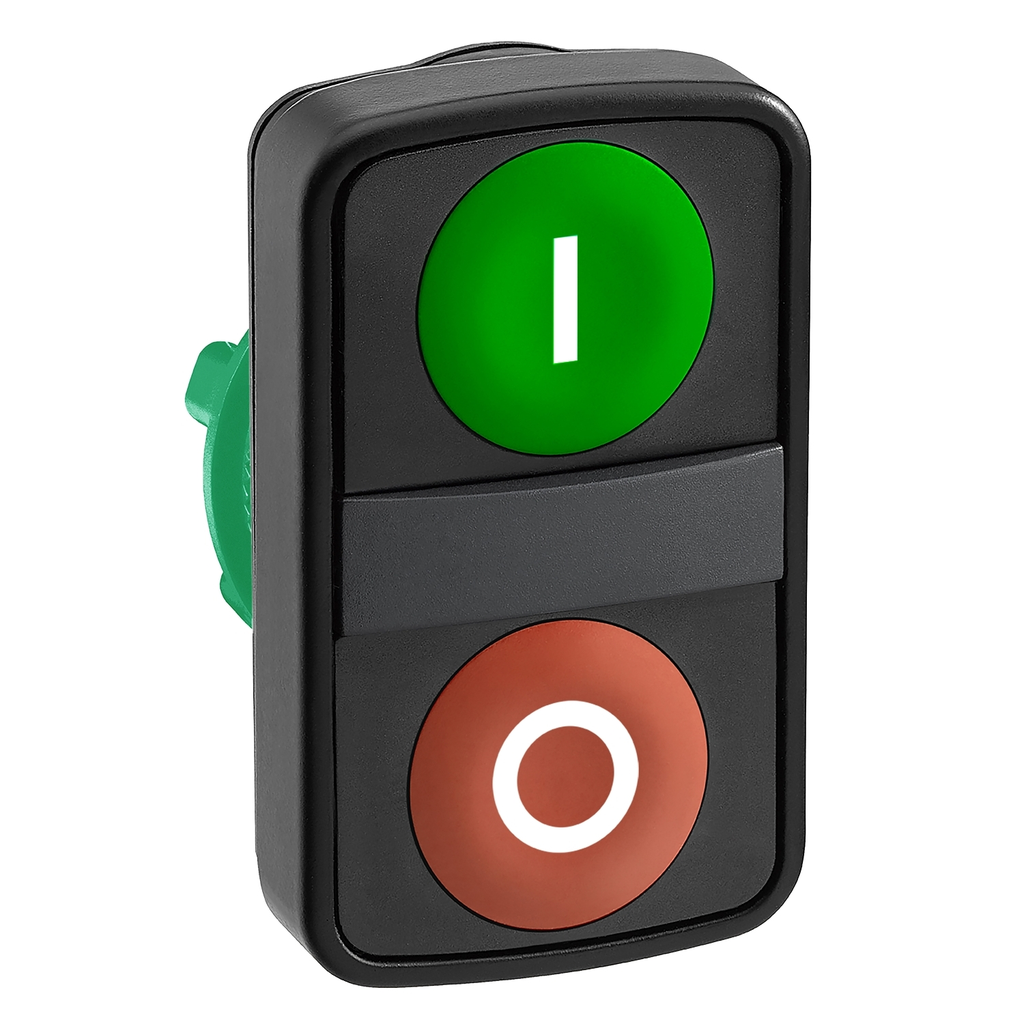

This double head provides a versatile interface for controlling your machines, it has 1 red and 1 green buttons. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors. It is also distinguishable by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Action
SPRING RETURN
Actuator
Green ''I'' - red ''O'';2 flush push-buttons
Applications
DOUBLE HEAD
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
GREEN/RED
Net Weight
0.023 kg
Operating Temperature
-25-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for double-headed push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
785901876106
Color
Green/red
Environmental Conditions
IP 65
GTiN
03389119043298
Product UPC
78590187610
Weight
0.023 kg

Dimensions

Height
50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
  • ZBYLEG503001
  • ZBA708
