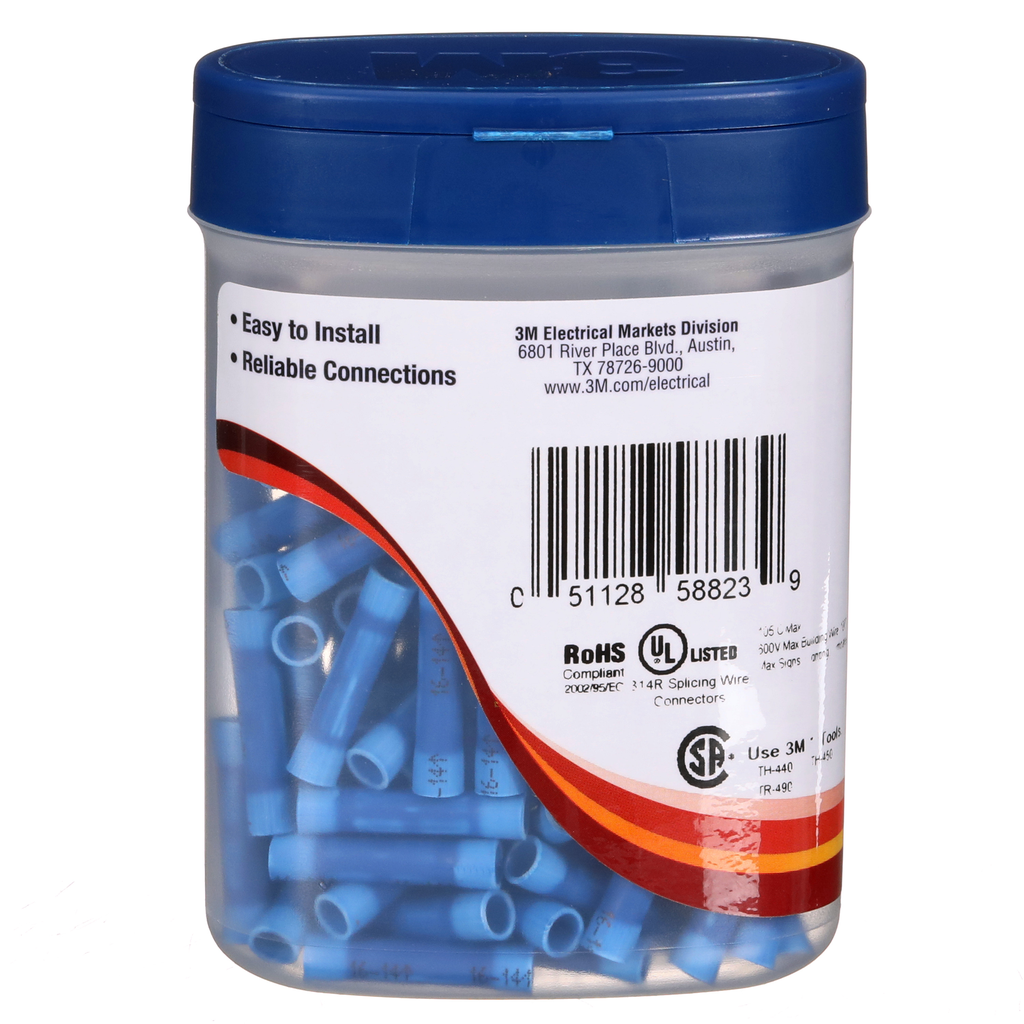

3M MVU14BCX 100/Bottle Vinyl Insulated Butt Connector

Manufacturer: 3M | Catalog # 7000058839 | Cooper Electric Part # 655428
$0.59/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

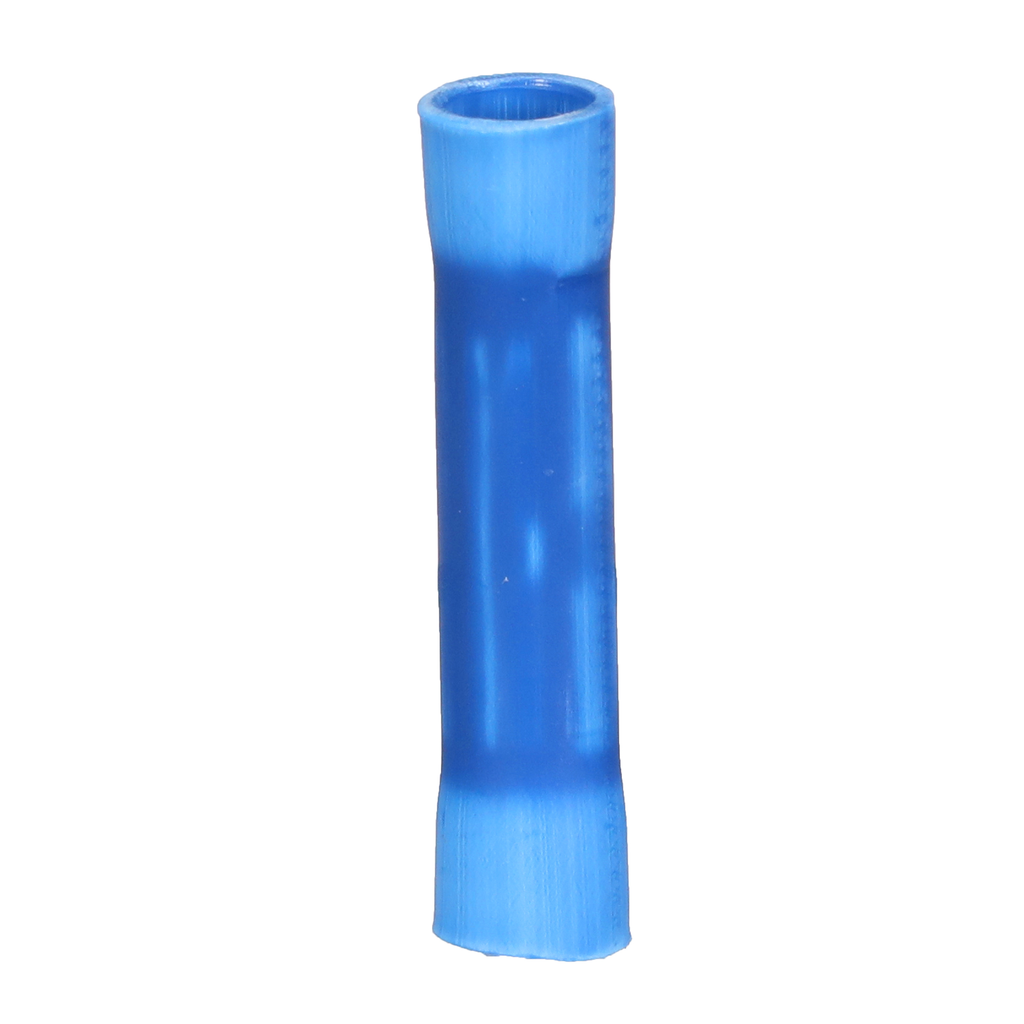

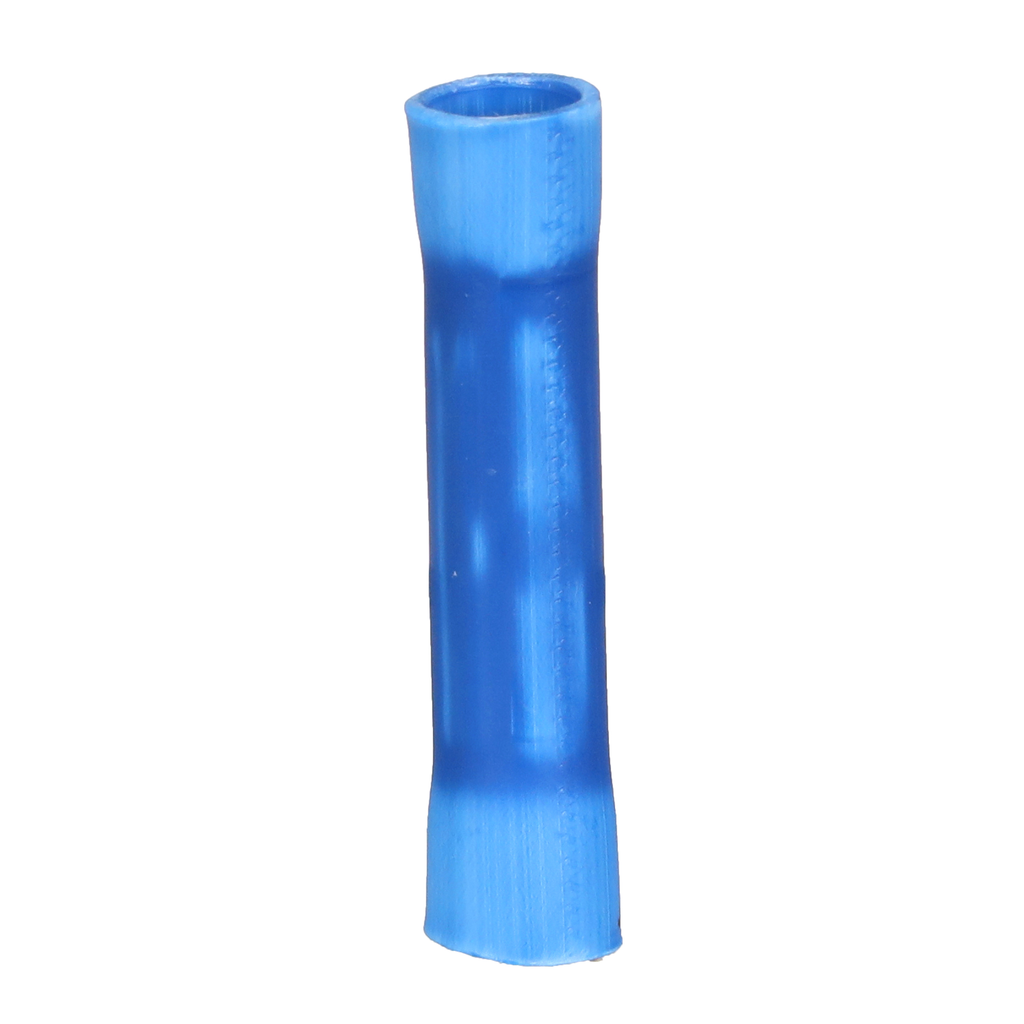

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
16-14 AWG
Connection Type
Butt
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Butt Connectors
Type
Butt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128588239
Color
Blue
GTiN
00051128588239
Product Type
Connector
Product UPC
05112858823

Dimensions

Length
1 Inch
Overall Length
1.0 in
Thickness
0.03 in

Certifications and Compliance

Country of Origin
USA
Features
  • WIRE RANGE: 16-14 (AWG)

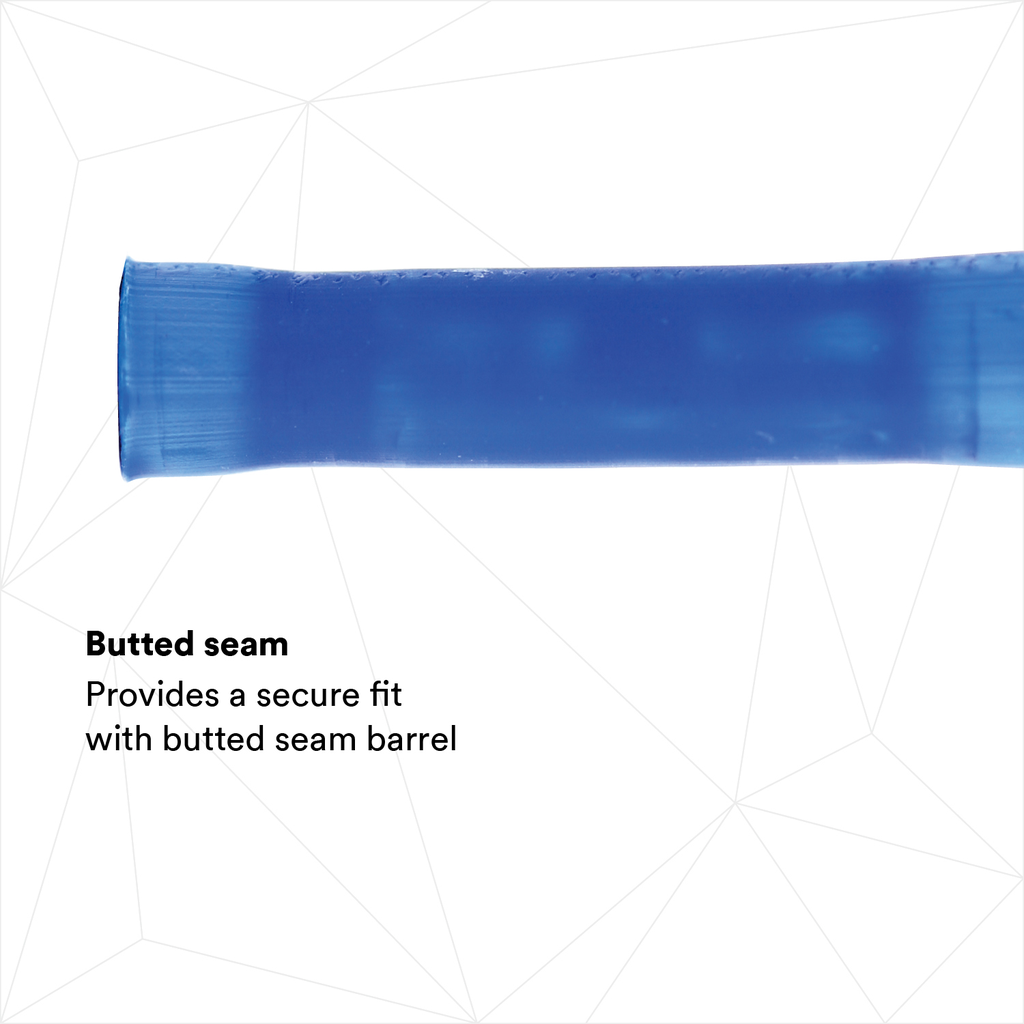

  • BUTTED SEAM: Provides a secure fit with butted seam barrel
  • MAX. OPERATING TEMPERATURE: 221 °F (105 °C)

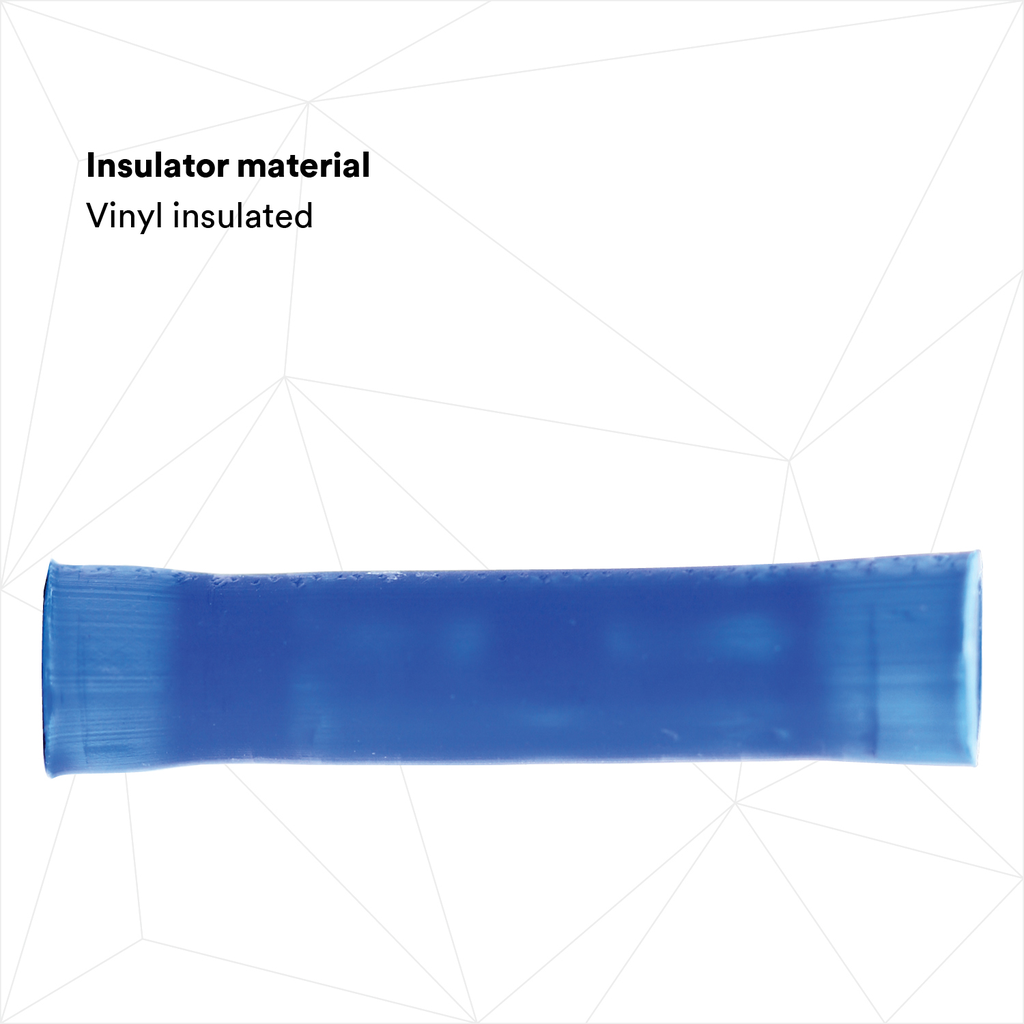

  • INSULATOR MATERIAL: Vinyl insulated
  • TERMINAL MATERIAL AND PLATING: Features ETP copper terminal material and tin plating
  • UL LISTED/CSA CERTIFIED: UL Listed and CSA Certified for use on stranded copper (AWG) wire only
