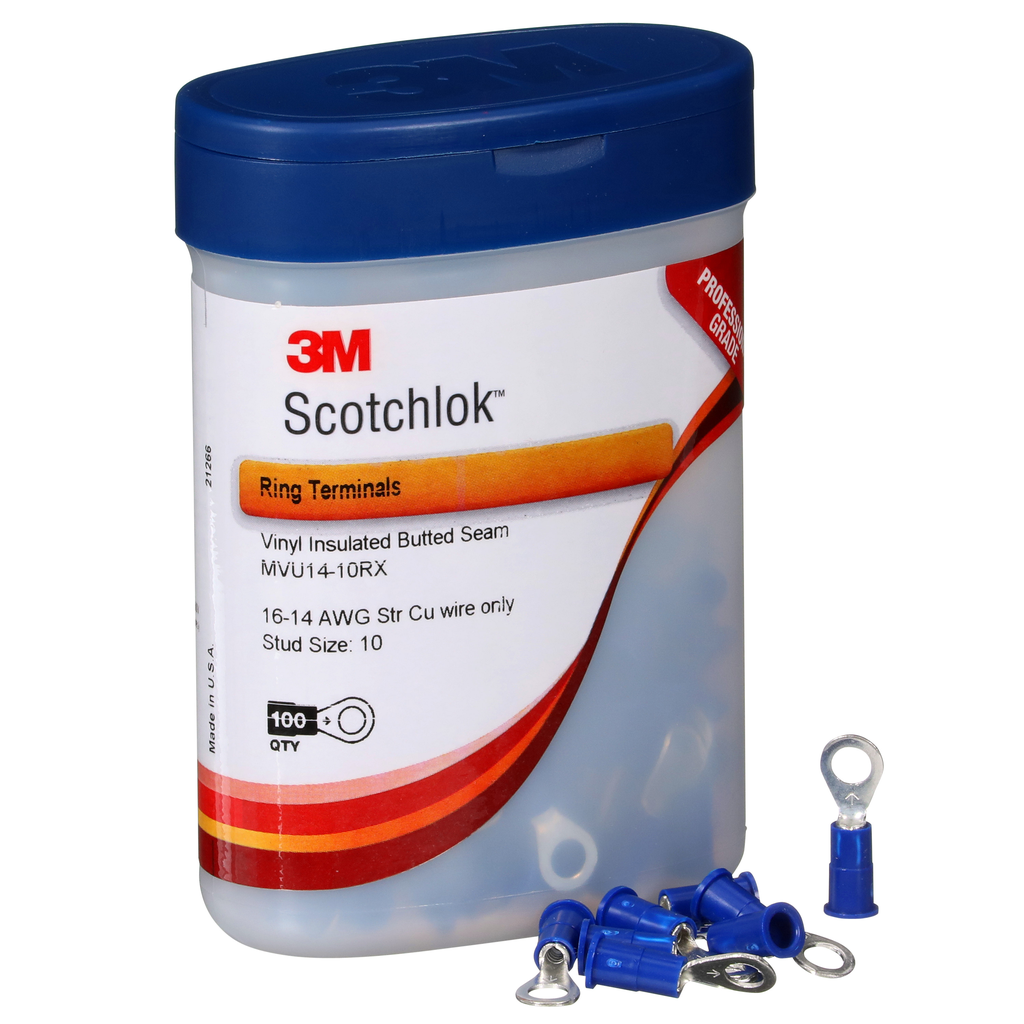

3M MVU14-10RX 100/Bottle Vinyl Insulated Ring

Manufacturer: 3M | Catalog # 7000133366 | Cooper Electric Part # 655423
$0.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

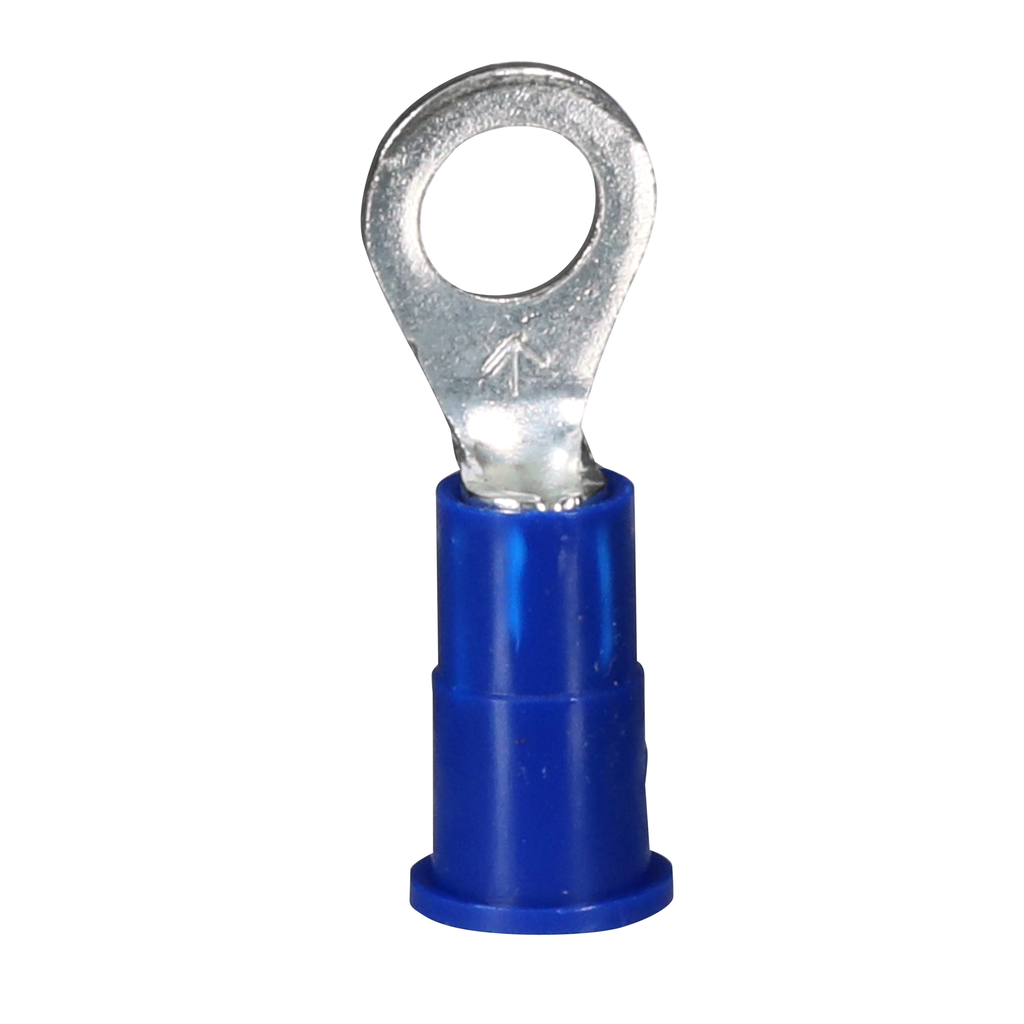

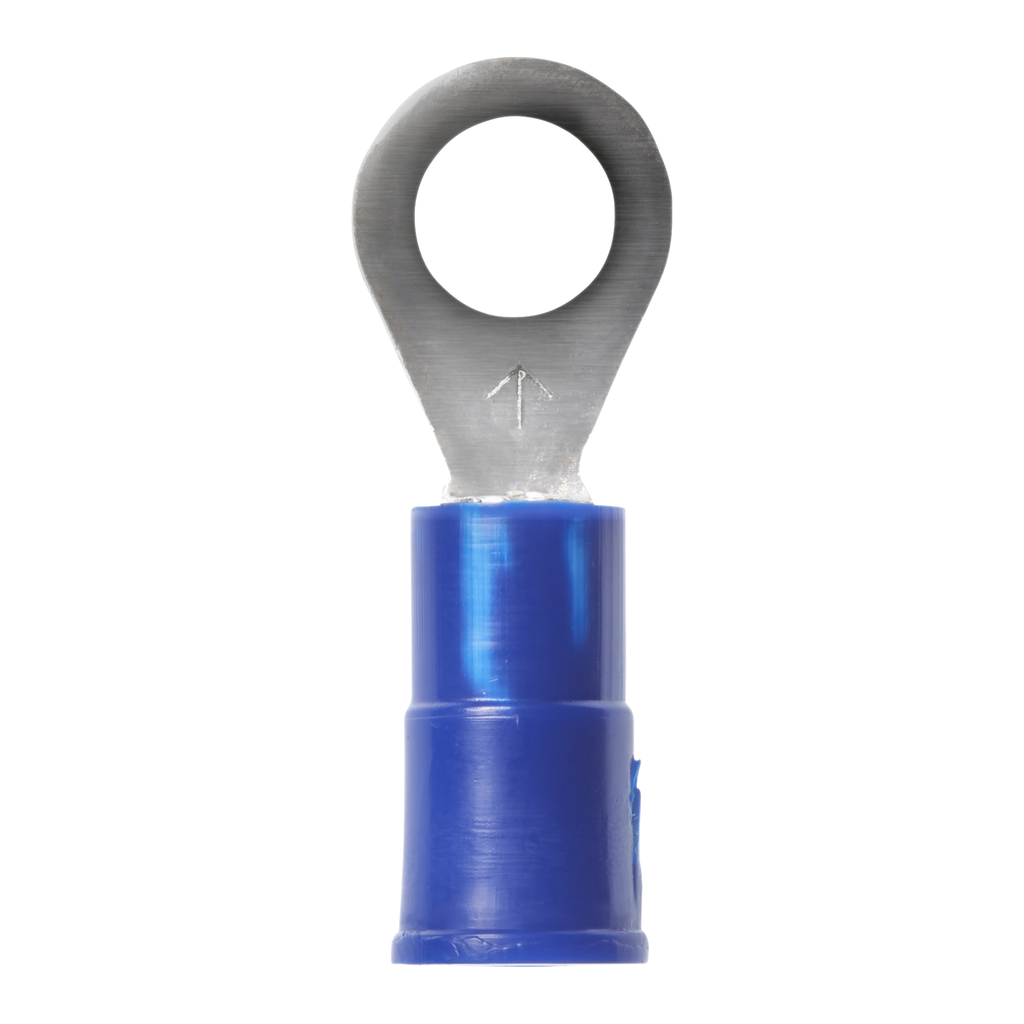

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
10
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128588192
Color
Blue
GTiN
00051128588192
Product UPC
05112858819

Dimensions

Length
0.9 Inch
Overall Length
0.9 in
Thickness
0.03 in
Width
0.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • SIZE RANGE: Fits 16-14 AWG wire sizes
  • RELIABLE: Provides a secure fit for reliable performance with its butted barrel design
  • HEAT TOLERANCE: Withstands a maximum temperature of 221 °F (105 °C)
  • VINYL INSULATION: Insulation made with abrasion-resistant vinyl material
  • CONDUCTIVITY: Promotes good electrical conductivity with ETP copper terminal design
  • PLATING: Features tin plating
