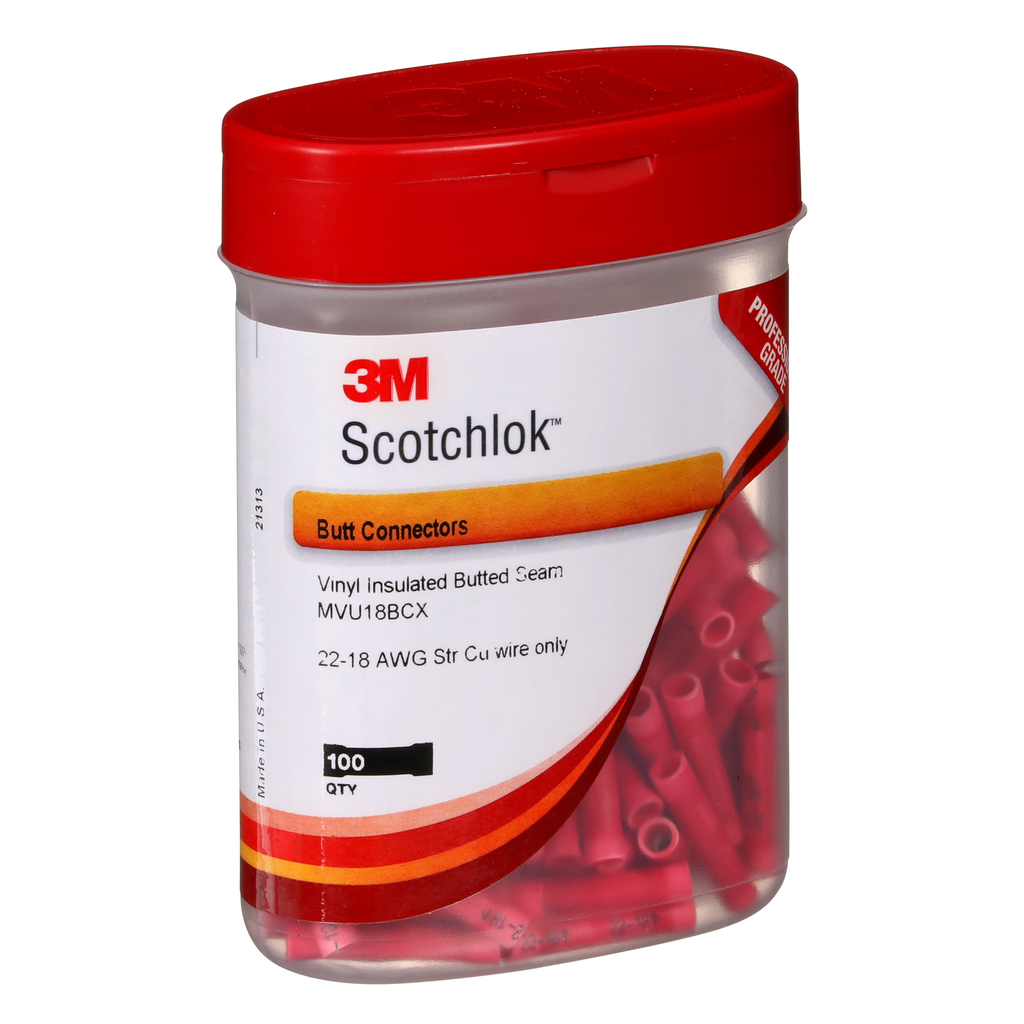

3M MVU18BCX 100/Bottle Vinyl Insulated Butt Connector

Manufacturer: 3M | Catalog # 7100021008 | Cooper Electric Part # 655422
$0.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

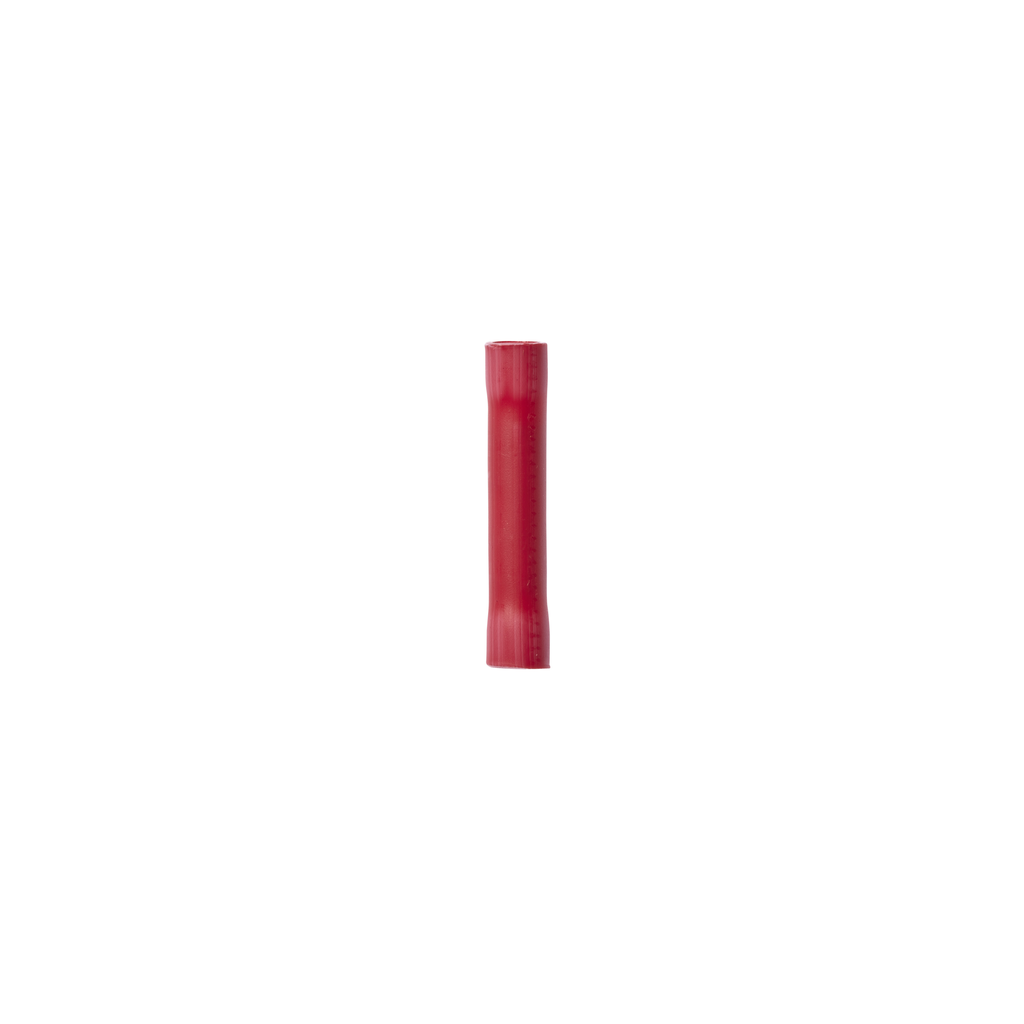

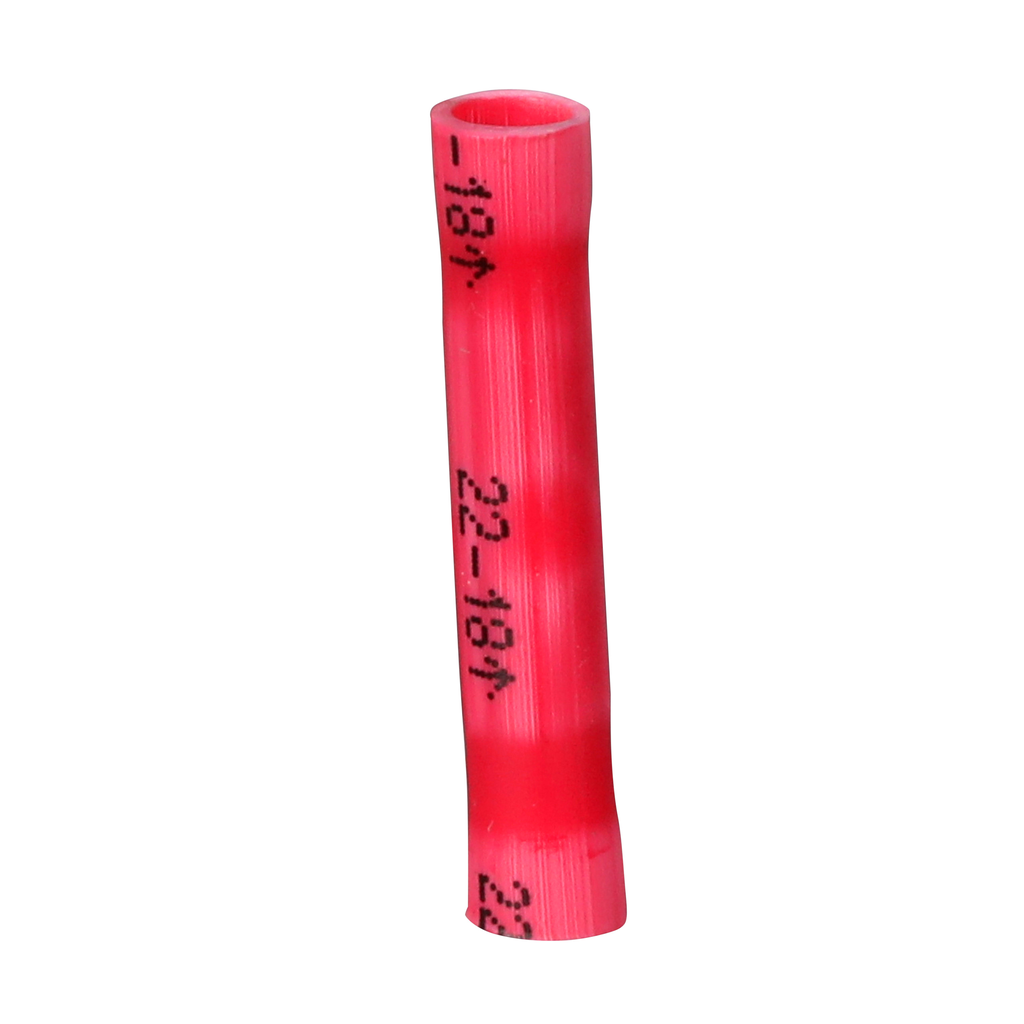

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
18 AWG
Insulation Material
Vinyl
Material
PVC
Standard
UL And CSA
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Butt Connectors
Type
Butt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128588178
Color
Red
GTiN
00051128588178
Product UPC
05112858817

Dimensions

Length
1 Inch
Overall Length
1.0 in
Thickness
0.03 in

Certifications and Compliance

Country of Origin
USA
Features

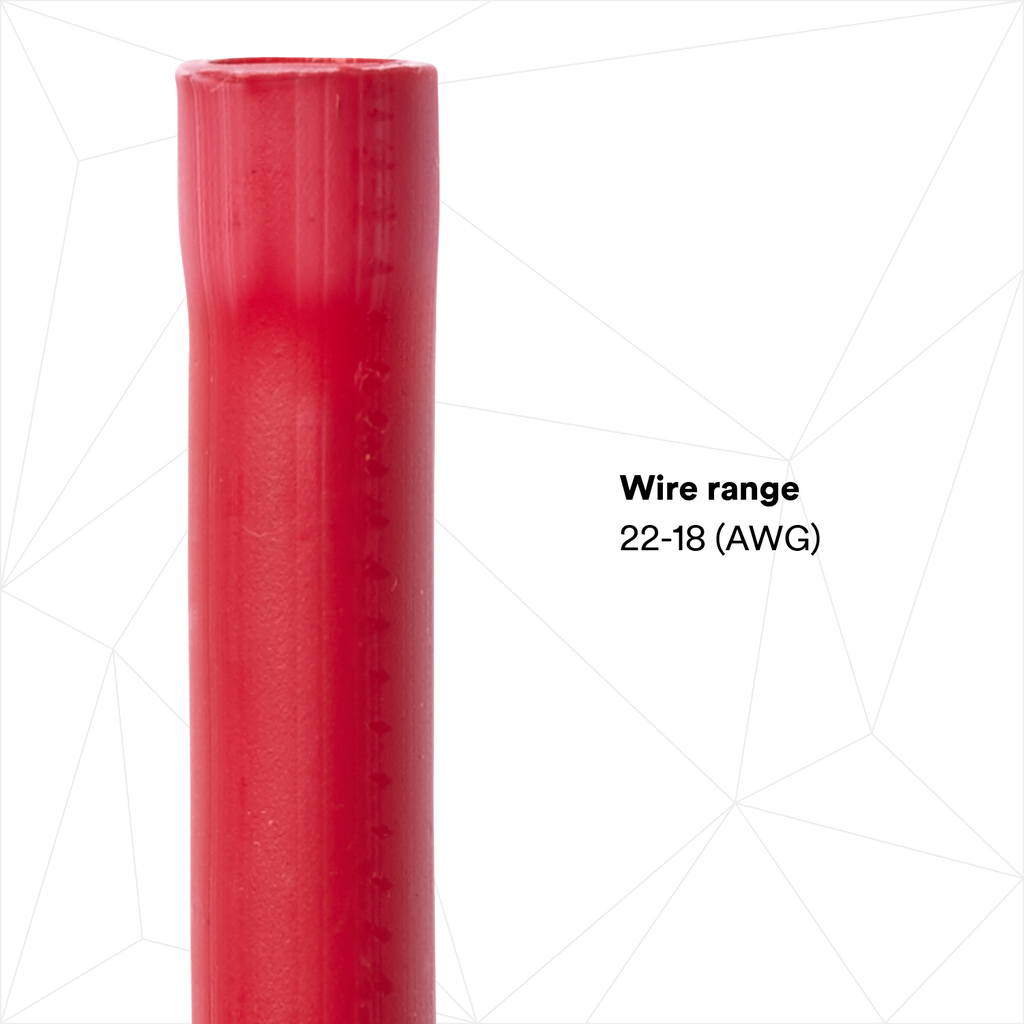

  • WIRE RANGE: 22-18 (AWG)
  • BUTTED SEAM: Provides a secure fit with butted seam barrel
  • MAX. OPERATING TEMPERATURE: 221 °F (105 °C)

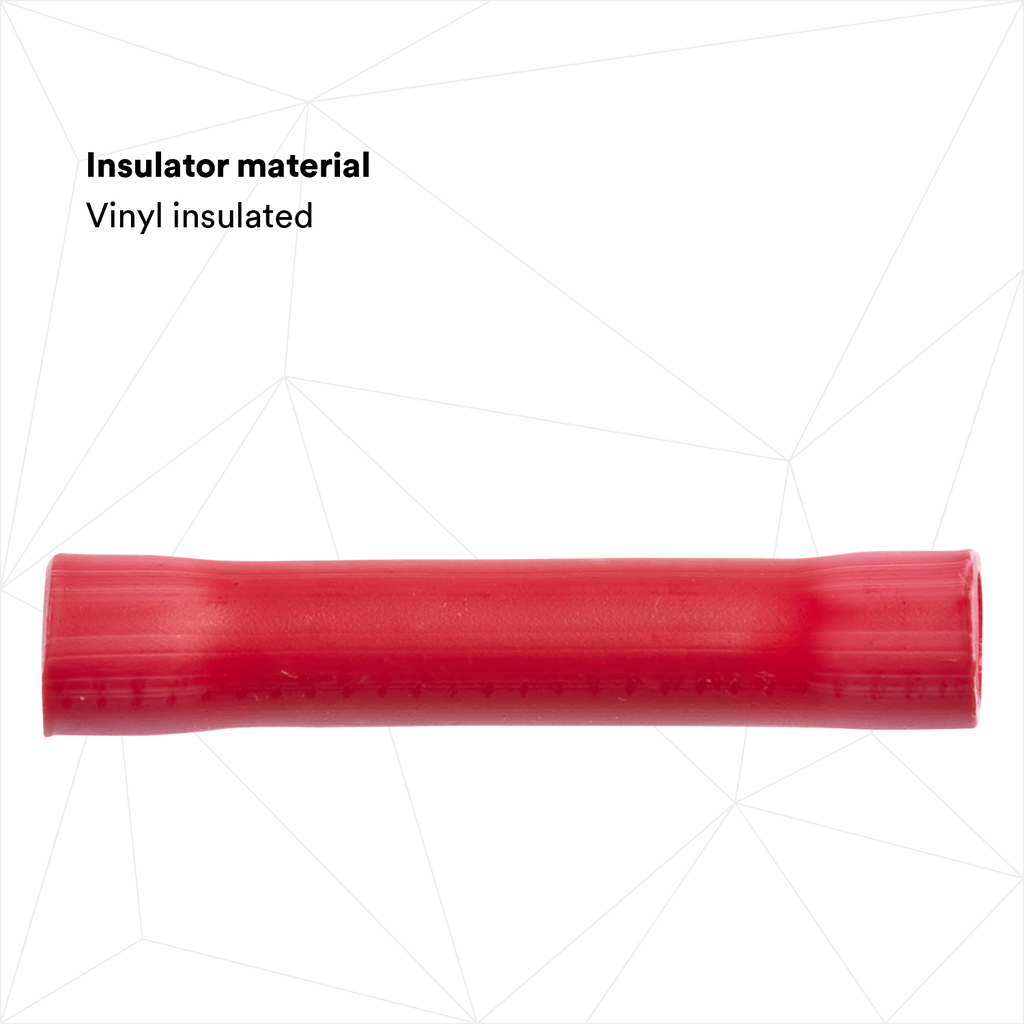

  • INSULATOR MATERIAL: Vinyl insulated
  • TERMINAL MATERIAL AND PLATING: Features ETP copper terminal material and tin plating
  • UL LISTED/CSA CERTIFIED: UL Listed and CSA Certified for use on stranded copper (AWG) wire only
