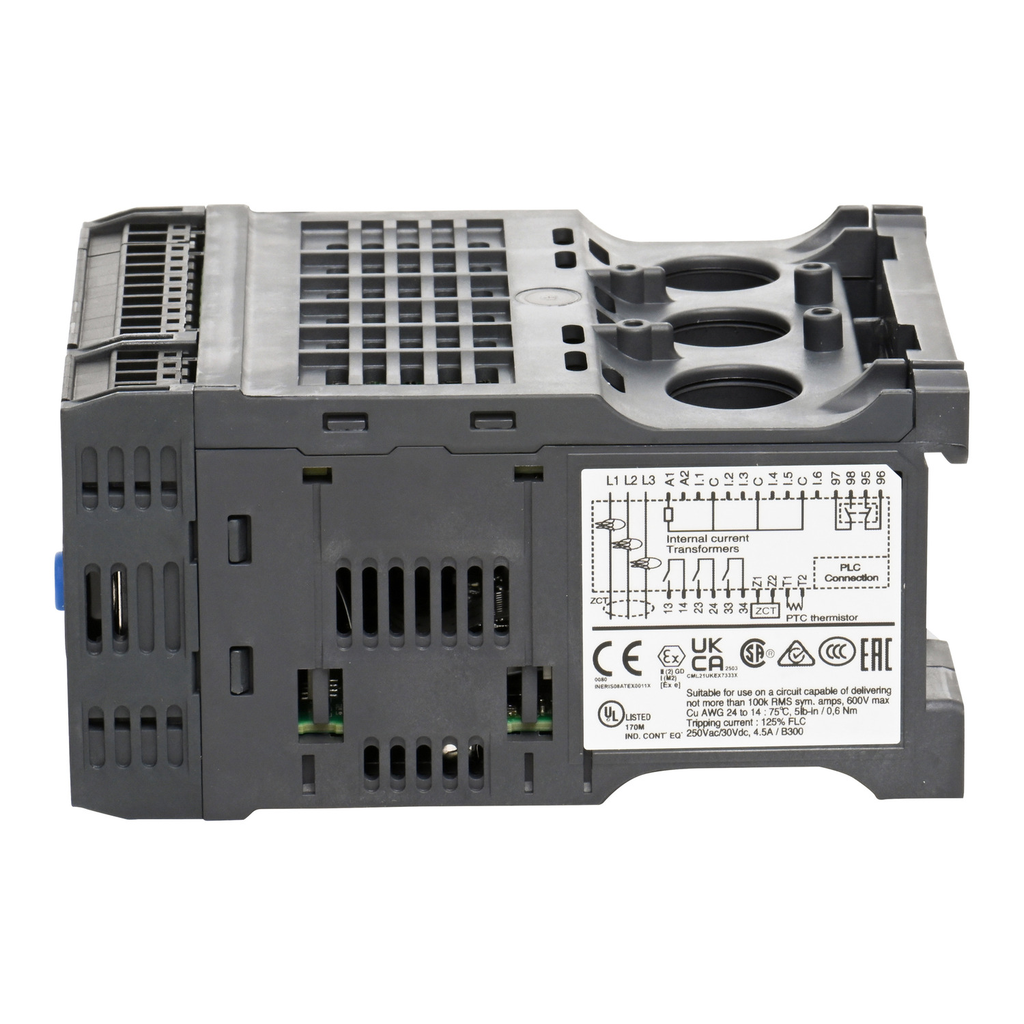

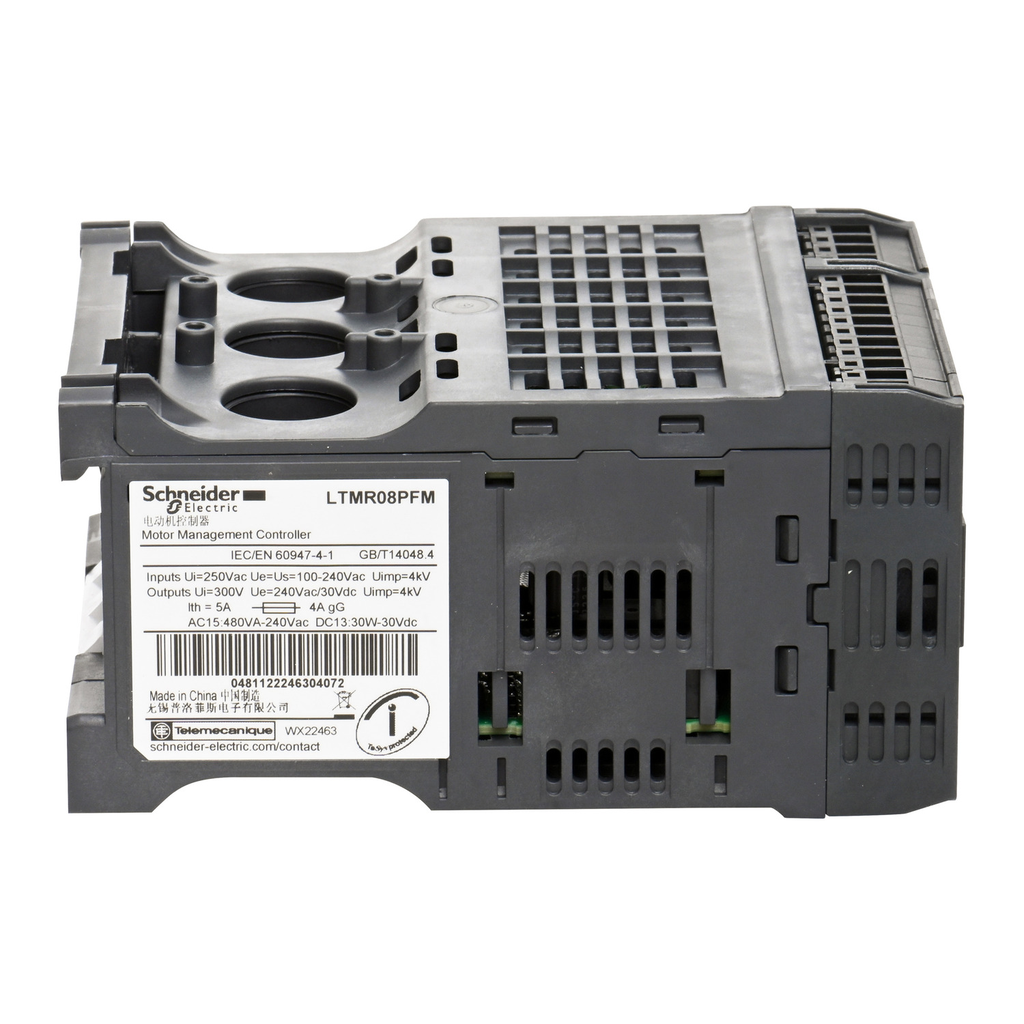

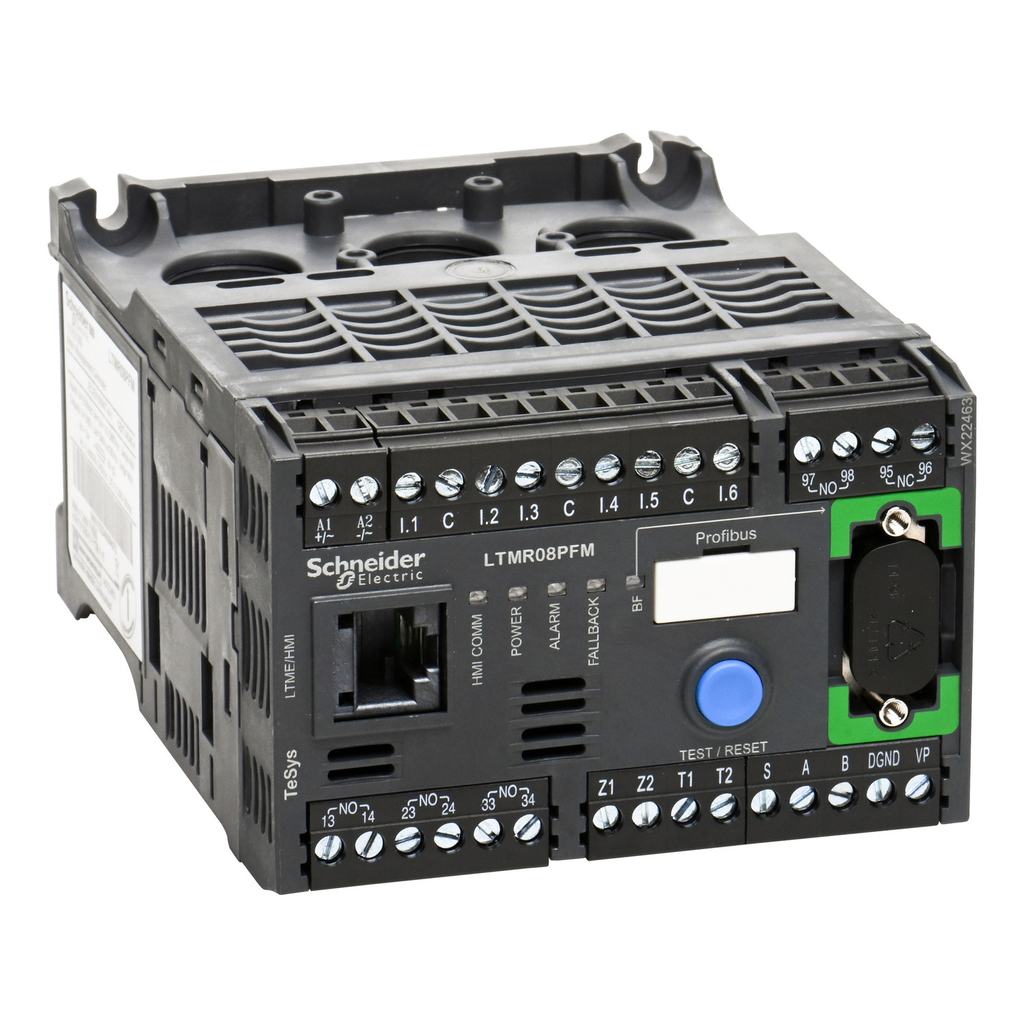

Square D LTMR08PFM Motor Management,

Manufacturer: Square-D / Schneider | Catalog # LTMR08PFM | Cooper Electric Part # 653324
$742.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
The LTMR08PFM is a motor management relay developed by Schneider Electric. It is a versatile and reliable device designed to provide comprehensive protection and control for motors. This compact relay offers a wide range of features and functionalities, including motor thermal protection, load monitoring, and programmable functions. It assists the safe and efficient operation of motors by preventing overheating, monitoring performance, and enabling quick diagnostics. With its user-friendly interface and seamless integration capabilities, the LTMR08PFM is suitable for various motor applications, helping optimize performance, increase energy efficiency, and enhance overall motor reliability.

Technical Information

Amperage
0.4??8? Amp
Applications
Equipment monitoring and control
Current
8-62.8 mA
Enclosure
IP 54
Input Current
3.1 mA 100 V;7.5 mA 240 V
Maximum Load Current
5 A 250 V AC logic output;5 A 30 V DC logic output
Net Weight
0.53 kg
Operating Cycles
1800 cyc/h
Operating Temperature
-20-60 Adegrees C
Size
4.82 in
Standard
CSA C22.2 No 14,EN 60947-4-1,IACS E10,IEC 60947-4-1,UL 508
Storage Temperature
-40-80 degrees C
TC Connection
CONTROL CIRCUIT CONNECTOR 1 0.25-2.5 MMA AWG 24...AWG 14)FLEXIBLE WITH CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.2-2.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.25-2.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 1 0.2-2.5 MMA AWG 24...AWG 14)SOLID WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1 MMA AWG 24...AWG 14)FLEXIBLE WITH CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.5-1.5 MMA AWG 24...AWG 14)FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT CONNECTOR 2 0.2-1 MMA AWG 24...AWG 14)SOLID WITHOUT CABLE END
Type
Motor controller
Voltage
100...240 Volt AC 50/60 HZ
Wattage
480 VA AC-15) IE = 2 Amps 500000 CYCLES OUTPUT)-30 Watt DC-13) IE = 1.25 Amps 500000 CYCLES OUTPUT)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LTMR;TeSys T

General Product Info

12-Digit UPC
389119404818
GTiN
03389119404815
Product UPC
78590150232
Weight
0.53 kg

Dimensions

Depth
122.5 mm
Height
61 mm
Warranty Length
18 mth
Width
91 mm

Certifications and Compliance

Certifications
ABS,ATEX,BV,C-tick,CCC,CSA,DNV,EAC,GL,KERI,LROS (Lloyds Register Of Shipping),NOM,RINA,RMRoS,UL
Country of Origin
China
