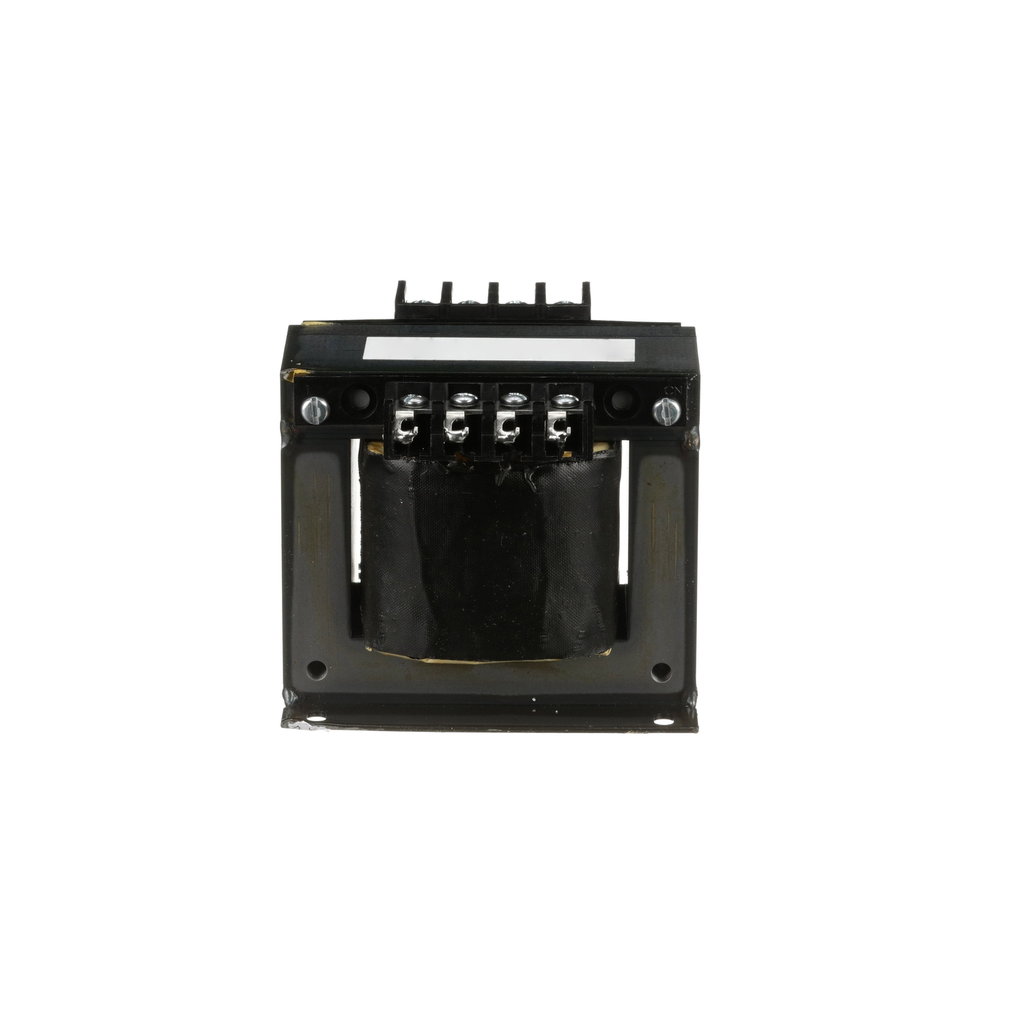

Square D 9070T350D31 350 VA 240 x 480 VAC Primary 120/240 VAC Secondary 1-Phase Control Transformer

Manufacturer: Square-D / Schneider | Catalog # 9070T350D31 | Cooper Electric Part # 651910
$661.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The Type T units are designed for the global market and are the best choice when size and cost are of concern. for the global market and are the best choice when size and cost are of concern. This is our most popular and complete offering of industrial control transformers. The following features are included with the Type T transformers sich as they are rated 50/60 Hz. They have customer installable accessories such as covers, fuse blocks and fuse clips. The Type T transformers are designed with various temperature classes. This Industrial Control Transformer is 1 phase and has a rated power of 350 VA. This transformer has a primary voltages of 240 x 480 V and a secondary voltage of 110/220 V with a temperature rise of 80 .C. The dimensions forThis product are 3.84 in (H), 4.5 in (W), 5.11 in (D). This product is compatable with FSC2. This product complys to UL listed & CSA standards.

Technical Information

Applications
SPECIFICALLY DESIGNED TO HANDLE HIGH INRUSH ASSOCIATED WITH CONTACTORS AND RELAYS FOR APPLICATIONS SUCH AS CONVEYOR SYSTEMS, PAINT LINES, PUNCH PRESSES OR OVERHEAD CRANES
Enclosure
OPEN
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
350 VA;350 VA UL;350 VA CSA;350 VA NOM;250 VA
Primary Voltage
110/220 V
Secondary Voltage
110/220 V
TC Connection
SCREW CLAMP
Temperature Rating
80 DEGREES C
Temperature Rise
80 degrees C
Type
T
Voltage
110/220 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901689164
GTiN
00785901689164
Product UPC
78590168916

Dimensions

Depth
5.11 Inch
Height
3.84 Inch
Warranty Length
10 yr
Width
4.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9070FSC2
  • 9070FP1
  • 9070FB3B
  • 9070FB2B
  • 9070SF41B
  • 9070SF25B
  • 9070FB1B
