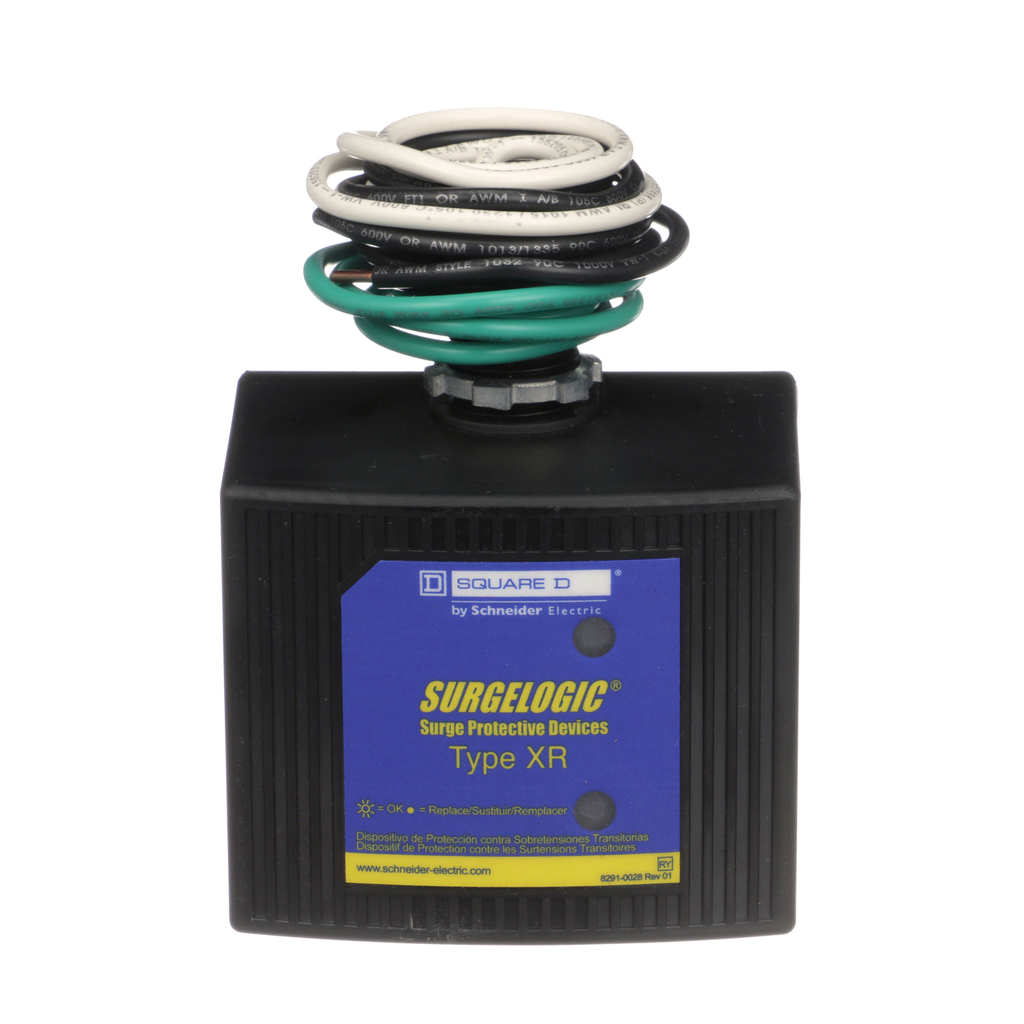

SQD TVS120XR80S Surge protection de

Manufacturer: Square-D / Schneider | Catalog # TVS120XR80S | Cooper Electric Part # 651876
$515.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Square D™ load center surge protective devices, TVS120XR80S, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Technical Information

Applications
Side
Enclosure
4X
Enclosure Material
Plastic
Mounting Type
Flush Fixing Kit
NEMA Size
4X
Nominal Discharge Current
10 kA
Number of Phases
1 Phase
Size
24 in
Standard
CSA C22.2 No 8:1986,UL 1449:ed. 4
TC Connection
Wire phase and neutral AWG 12 copper;Wire ground AWG 12 copper
Type
Surge protection device;3-wire
Voltage
120/240 Volt

Manufacturer Information

Brand
Square D
Sub Brand
XR

General Product Info

12-Digit UPC
785901685661
GTiN
00785901685661
Product UPC
78590168566

Dimensions

Cable Length
24 in
Depth
68 mm
Height
91 mm
Warranty Length
18 mth
Width
76 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
  • XR Series SPDsThe XR Series Surge Protective Device (SPD) provides high quality surge protection in a compact and versatile package. This product is ideal for panel builders as well as manufacturers and integrators of instrumentation cabinets for industrial, medical, and commercial applications.The XR uses a hybrid suppression circuit that delivers 40,000 peak amps of surge protection. It also provides sine wave tracking protection and noise filtration. Operation is achieved by incorporating the latest fusing technology. The product is contained in a Type 4x enclosure for maximum flexibility and safety. The XR Series is cUL and UL Listed under UL 1449 (Second Edition dated February 9, 2007).Design
  • Green status LEDs provide continuous monitoring of performance.
  • Two types of enclosures are available, with either a side or back direct nippled connector for custom mounting.
  • An audible alarm indicates a fault condition.
  • Compact design provides easy mounting inside or outside the equipment cabinets.
