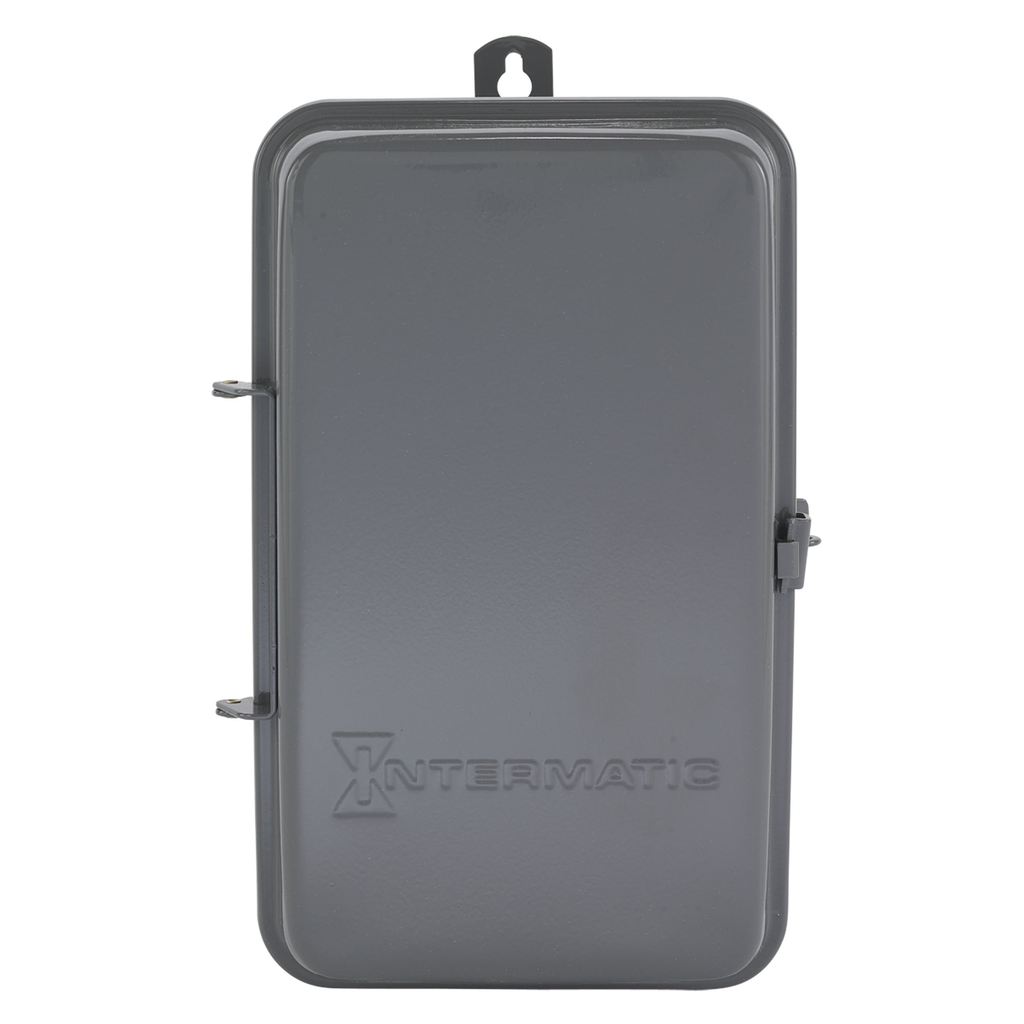

Product image for Intermatic T1871BR NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp DPDT Electromechanical Time Switch with Clock Motor Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

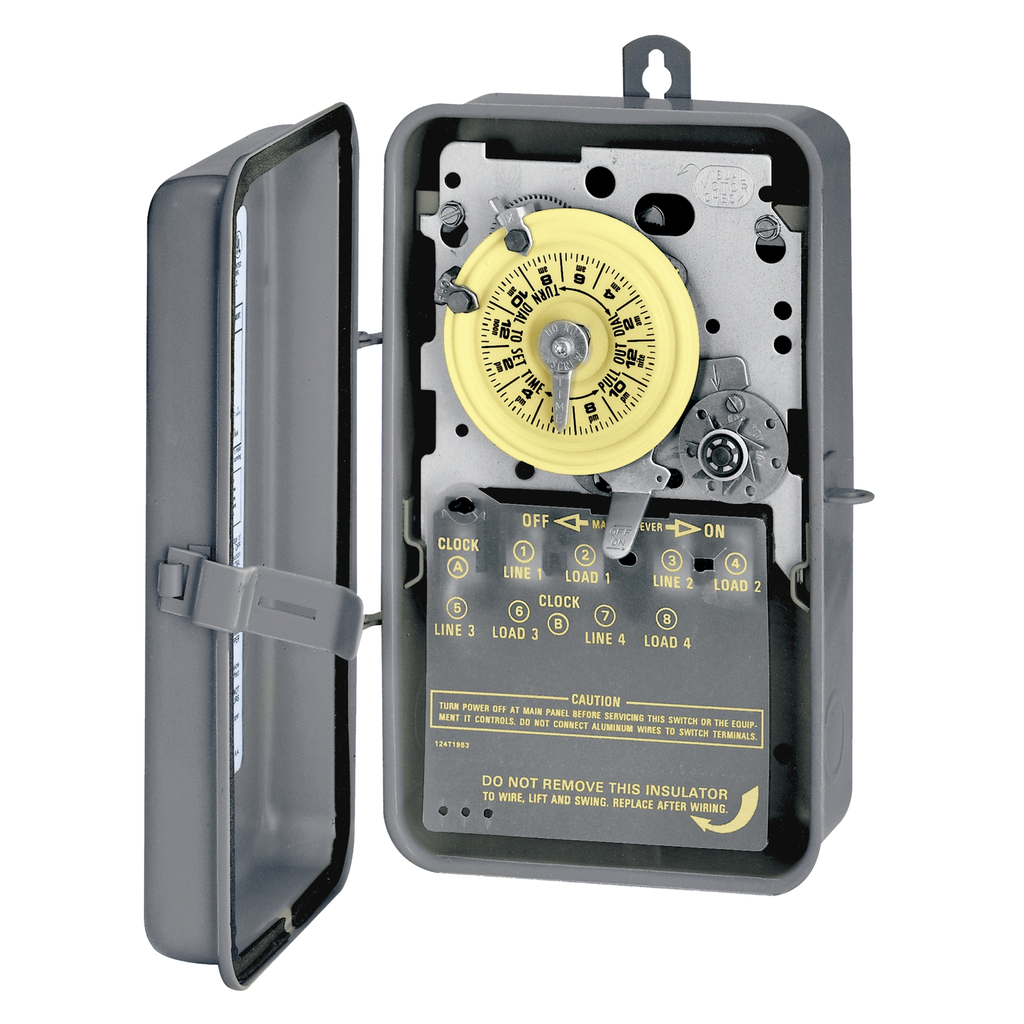

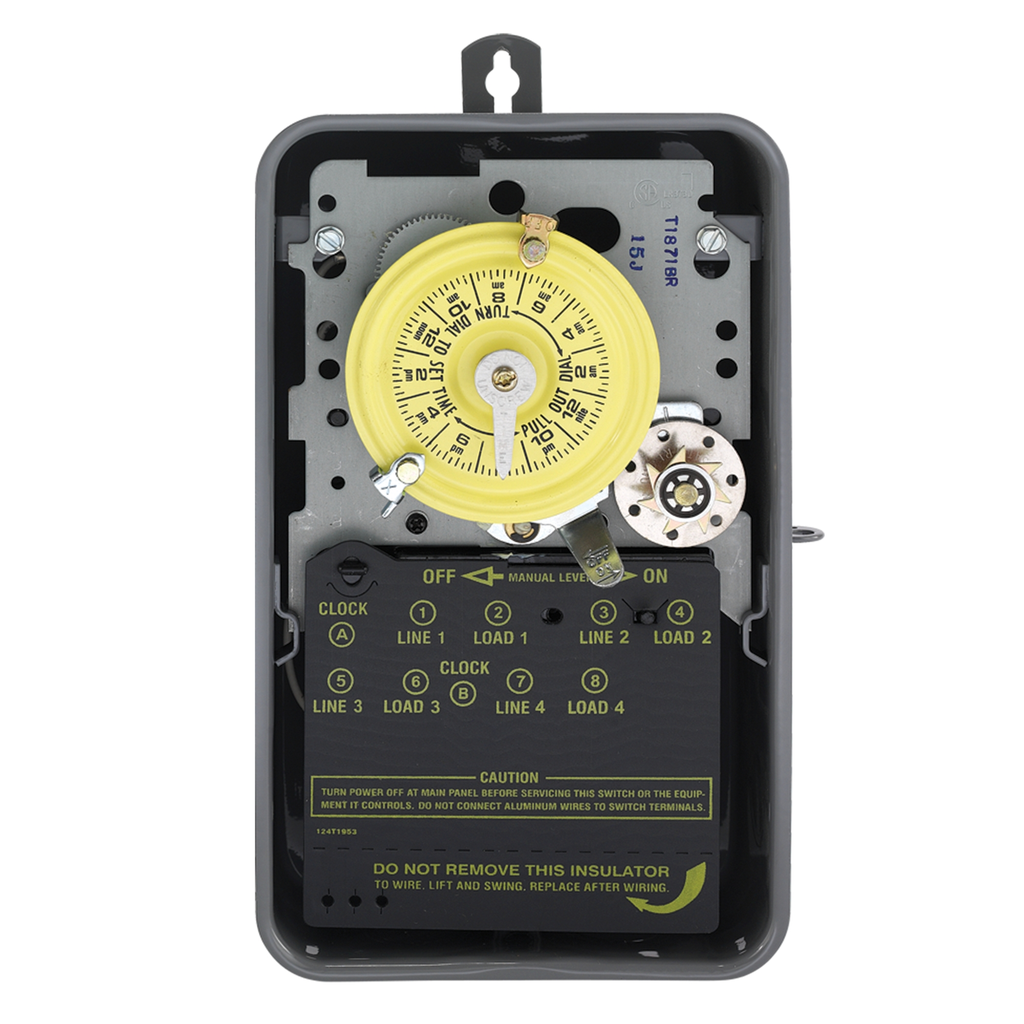

Intermatic T1871BR NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp DPDT Electromechanical Time Switch with Clock Motor Terminal

Manufacturer: Intermatic, Inc | Catalog # T1871BR | Cooper Electric Part # 65177
$550.56/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

Technical Information

Action
DPDT
Applications
Indoor Lighting Control,Outdoor Lighting Control,Timing/Scheduling ON/OFF
Contact Configuration
2 NO/2 NC
Contact Rating
40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120/240/277 VAC (Tungsten, Inductive)
Enclosure
NEMA 3R Steel
Frequency
60 Hz
Input Voltage
120 V
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Type
Wall Mount
Number of Circuits
2
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Switch Type
2 NO/2 NC
Type
Mechanical
Voltage
125 Volt
Wattage
3 Watt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275179059
Color
Gray
GTiN
00078275179059
Product UPC
07827517905

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Controls loads up to 40 A per pole
  • Direct 24-hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included
  • NA
