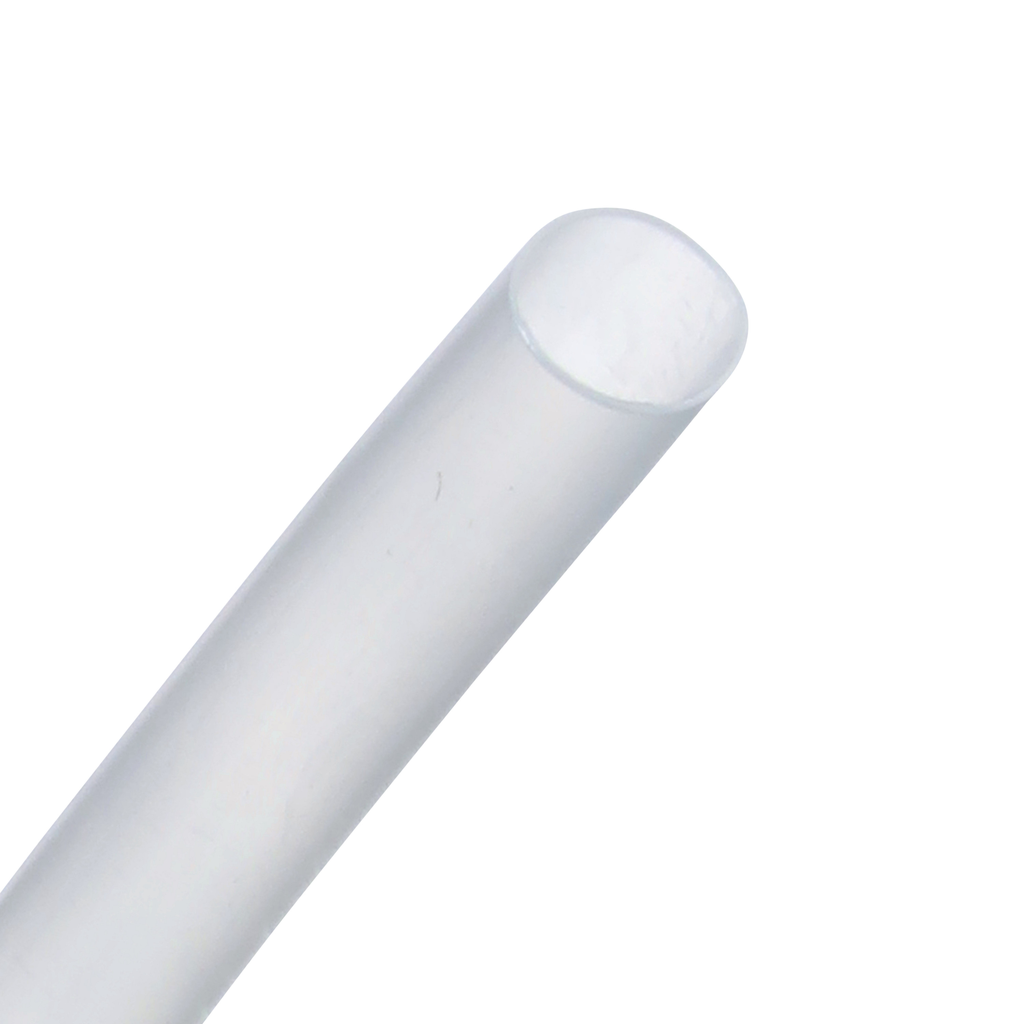

Product image for 3M 7010396233 3M™ Heat Shrink Thin-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

3M 7010396233 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7010396233 | Cooper Electric Part # 651499

$0.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

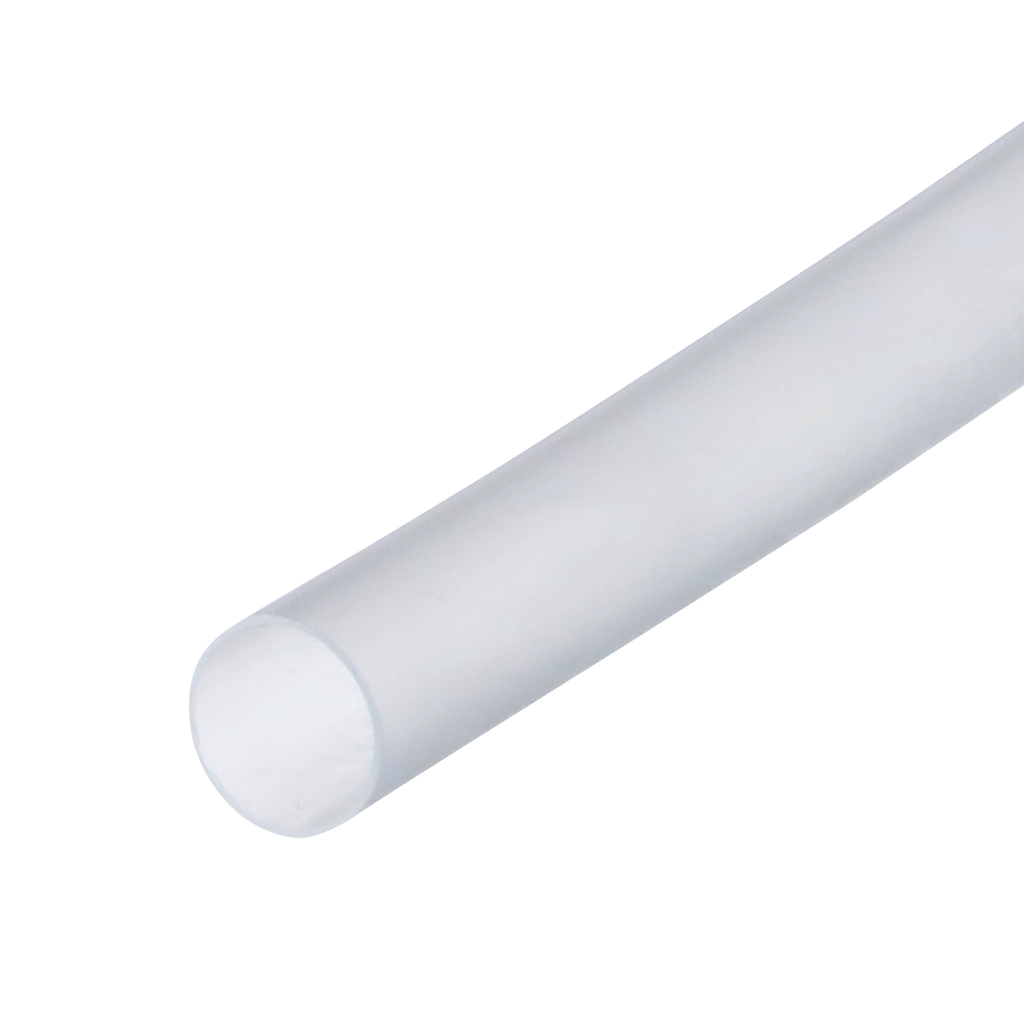

3M™ Heat Shrink Tubing FP-301 offers durable shrink-fit protection for use in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging. Made of flexible polyolefin, the tubing is self-extinguishing, meets UL 224 All-Tubing Flame Test (except clear), and is ideal for cable splices and terminations to balance electrical and physical, and chemical properties within a variety of industrial and military applications rated up to 600V. The 2:1 shrink ratio tubing is mechanically tough and helps to protect from splits and cold flow while being easily markable. 3M™ Heat Shrink Tubing FP-301 can handle demanding environments within an operating temperature range of -67 .F (-55 .C) to 275 .F (135 .C) and is UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant.

Technical Information

Dielectric Strength
900 V/mil
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tensile Strength
2400 lb/in
Type
Single Key Access

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007085270
Color
Clear
GTiN
00054007085270
Product UPC
05400708527

Dimensions

Inside Diameter
0.093
Length
250 Foot
Outside Diameter
0.187 in
Overall Length
250.0 ft
Thickness
0.02

Certifications and Compliance

Country of Origin
USA
Features
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
