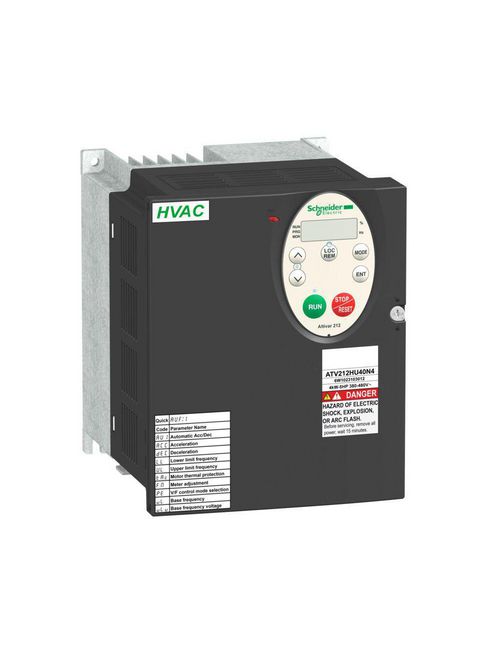

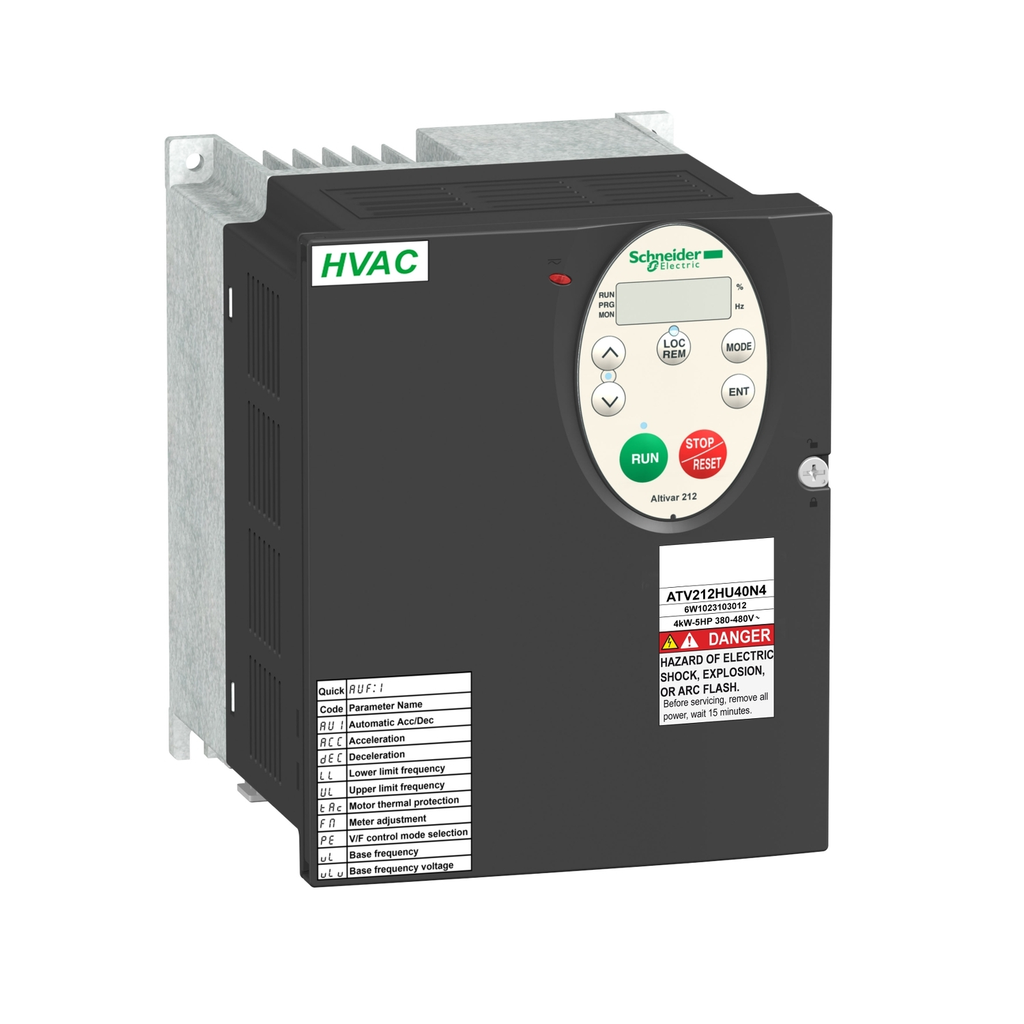

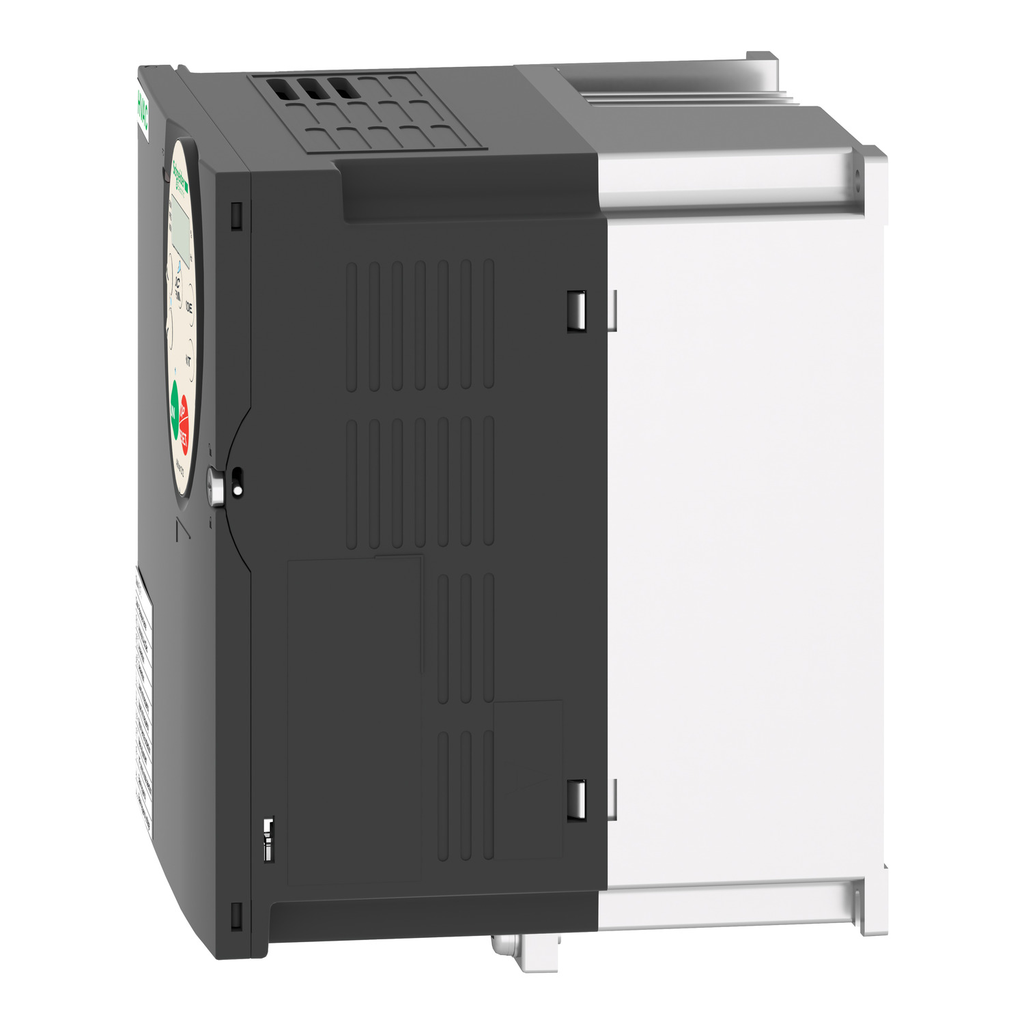

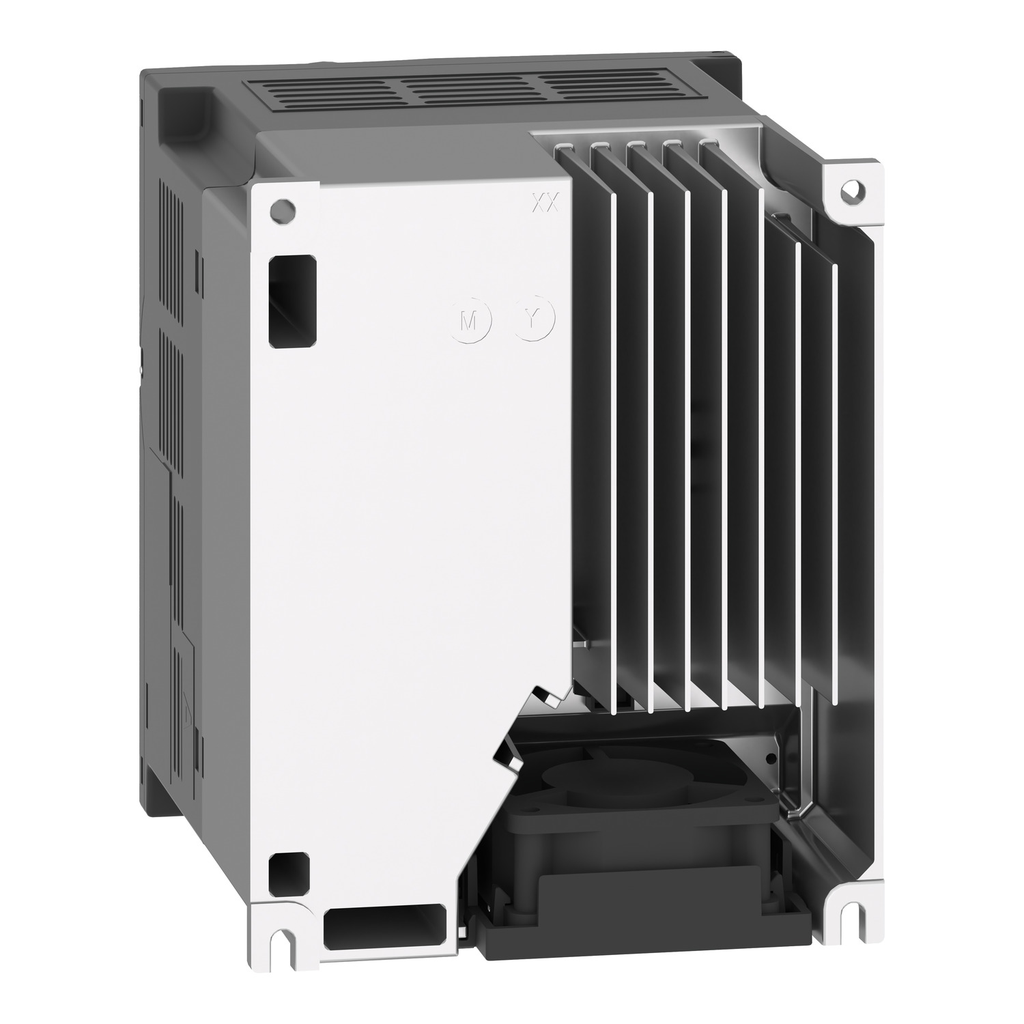

Square D ATV212HU55N4 380 to 480 VAC 7.5 Hp 3-Phase Open Type Variable Speed Drive

Manufacturer: Square-D / Schneider | Catalog # ATV212HU55N4 | Cooper Electric Part # 649398
$1,028.98 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.35kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 .) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Technical Information

Applications
Asynchronous motors;Pumps and fans in HVAC
Connection Type
1 Open Style,1 RJ45
Dielectric Strength
3535 V
Enclosure
OPEN IP20
Net Weight
3.35 kg
Number of Phases
3 Phase
Output
MAXIMUM OUTPUT VOLTAGE EQUAL TO INPUT VOLTAGE 3-PHASE
Output Voltage
<= power supply voltage
Power Rating
215 W
Size
5.91 in
Standard
EN 55011 Class A Group 1,EN 61800-3 Category C3,IEC 61800-3,IEC 61800-3 Category C2,IEC 61800-3 Category C3,IEC 61800-3 Environments 1 Category C1,IEC 61800-3 Environments 1 Category C2,IEC 61800-3 Environments 1 Category C3,IEC 61800-3 Environments 2 Category C1,IEC 61800-3 Environments 2 Category C2,IEC 61800-3 Environments 2 Category C3,IEC 61800-5-1,UL Type 1
Storage Temperature
-25-70 degrees C
Type
1 RJ45;1 open style;Variable speed drive;Variable speed drive
Wattage
5.5 kW

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ATV212

General Product Info

12-Digit UPC
360648032246
Environmental Conditions
-10-40 A?C WITHOUT)-40-50 A?C WITH DERATING FACTOR),CLASSES 3C1 IEC 60721-3-3-CLASSES 3S2 IEC 60721-3-3
GTiN
03606480322495
Product UPC
78590191729
Weight
3.35 kg

Dimensions

Depth
5.91 in
Height
7.24 in
Warranty Length
18 mth
Width
5.59 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,NOM 117,UL
Country of Origin
Indonesia
Insulation Resistance
  • >= 1 mOhm 500 V DC for 1 minute
Power Range
  • 4-6 kW 380-440 V 3 phase
  • 4-6 kW 480-500 V 3 phase
US Rated Supply Voltage
  • 380...480 V - 15...10 %
Analogue Input Type
  • VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits
  • VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits
  • VIB configurable PTC probe 0...6 probes 1500 Ohm
  • VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
IP Degree Of Protection
  • IP20 on upper part without blanking plate on cover IEC 61800-5-1
  • IP20 on upper part without blanking plate on cover IEC 60529
  • IP21 IEC 61800-5-1
  • IP21 IEC 60529
  • IP41 on upper part IEC 61800-5-1
  • IP41 on upper part IEC 60529
Continuous Output Current
  • 12 A 380 V
  • 12 A 460 V
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Analogue Output Type
  • FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits
  • FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Response Time
  • FM 2 ms +/- 0.5 ms analog
  • FLA, FLC 7 ms +/- 0.5 ms discrete
  • FLB, FLC 7 ms +/- 0.5 ms discrete
  • RY, RC 7 ms +/- 0.5 ms discrete
Discrete Input Type
  • F programmable 24 V DC level 1 PLC 4700 Ohm
  • R programmable 24 V DC level 1 PLC 4700 Ohm
  • RES programmable 24 V DC level 1 PLC 4700 Ohm
Electrical Connection
  • VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14
  • L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
Related Products
  • VW3A1101
  • VW3A31406
Line Current
  • 10.9 A 380 V
  • 8.6 A 480 V
Motor Slip Compensation
  • not available in voltage/frequency ratio motor control
  • automatic whatever the load
  • adjustable
Maximum Switching Current
  • 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R)
  • 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R)
  • 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R)
  • 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Frequency Resolution
  • display unit 0.1 Hz
  • analog input 0.024/50 Hz
Protection Type
  • overheating protection drive
  • thermal power stage drive
  • short-circuit between motor phases drive
  • input phase breaks drive
  • overcurrent between output phases and earth drive
  • overvoltages on the DC bus drive
  • break on the control circuit drive
  • against exceeding limit speed drive
  • line supply overvoltage and undervoltage drive
  • line supply undervoltage drive
  • against input phase loss drive
  • thermal protection motor
  • motor phase break motor
  • with PTC probes motor
Supply
  • internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection
  • internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Accessories
  • VW3A21212
  • TCSMCNAM3M002P
Sampling Duration
  • 2 ms +/- 0.5 ms F discrete
  • 2 ms +/- 0.5 ms R discrete
  • 2 ms +/- 0.5 ms RES discrete
  • 3.5 ms +/- 0.5 ms VIA analog
  • 22 ms +/- 0.5 ms VIB analog
Linearity Error
  • VIA +/- 0.15 % of maximum value input
  • VIB +/- 0.15 % of maximum value input
  • FM +/- 0.2 % output
Vibration Resistance
  • 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
  • 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8
Option Card
  • communication card LonWorks
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
Environmental Characteristic
  • classes 3C1 conforming to IEC 60721-3-3
  • classes 3S2 conforming to IEC 60721-3-3
Type Of Cable
  • without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR
  • without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC
  • with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Electromagnetic Compatibility
  • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
  • radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
  • electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
  • 1.2/50 s - 8/20 s surge immunity test level 3 conforming to IEC 61000-4-5
  • conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
  • voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Supply Frequency
  • 50...60 Hz - 5...5 %
Apparent Power
  • 9.1 kVA 380 V
Relative Humidity
  • 5-95 % without condensation IEC 60068-2-3
  • 5-95 % without dripping water IEC 60068-2-3
Accessory Products
  • VW3A21212
  • TCSMCNAM3M002P
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
Dielectric Strength
  • 3535 V DC between earth and power terminals
  • 5092 V DC between control and power terminals
Tightening Torque
  • 1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T)
  • 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Minimum Switching Current
  • 3 mA 24 V DC configurable relay logic
Operating Altitude
  • 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
  • <= 3280.84 ft (1000 m) without derating
Noise Level
  • 51 dB 86/188/EEC
Discrete Input Logic
  • positive logic (source) F, R, RES), <= 5 V, >= 11 V
  • negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Asynchronous Motor Control Profile
  • voltage/frequency ratio, 2 points
  • voltage/frequency ratio, 5 points
  • voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
  • flux vector control without sensor, standard
  • voltage/frequency ratio - Energy Saving, quadratic U/f
Transient Overtorque
  • 120-120 % of nominal motor torque +/- 10 % 60 s
Discrete Output Type
  • configurable relay logic FLA, FLC) NO - 100000 cycles
  • configurable relay logic FLB, FLC) NC - 100000 cycles
  • configurable relay logic RY, RC) NO - 100000 cycles
Shock Resistance
  • 15 gn 11 ms IEC 60068-2-27
Maximum Transient Current
  • 13.2 A 60 s
Discrete And Process Manufacturing
  • building - HVAC compressor for scroll
  • building - HVAC fan
  • building - HVAC pump
Local Signalling
  • 1 LED (red) for DC bus energized
Ambient Air Temperature For Operation
  • -10-40 °C (without derating)
  • 40-50 °C (with derating factor)
Speed Accuracy
  • +/- 10 % of nominal slip 0.2 Tn to Tn
Switching Frequency
  • 6...16 kHz adjustable
  • 12...16 kHz with derating factor
