Caddy SOSR125 SOSR Stand Off Two Hole Strap for CPVC Pipe, 1-1/4" Pipe

Manufacturer: Erico, Inc | Catalog # SOSR125 | Cooper Electric Part # 649382
$542.94/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

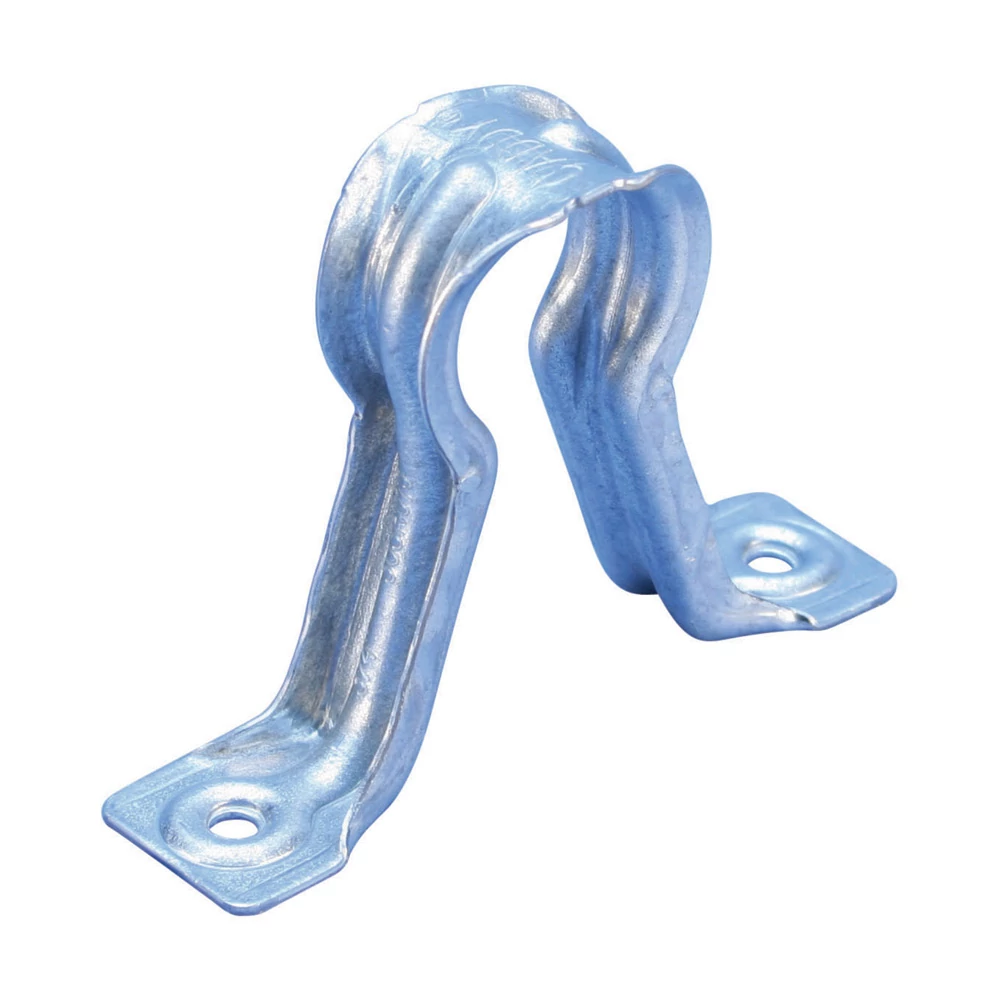

SOSR Stand Off Two Hole Strap for CPVC Pipe, 1 1/4" Pipe

Technical Information

Applications
Fire Sprinkler; HVAC, Plumbing and Refrigeration
Material
Steel
Pipe Size
1-1/4 in
Standard
CUL,UL
Type
SOSR Stand Off Two Hole Strap for CPVC Pipe

Packaging

Standard Packaging Qty
100 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856663850
Finish
Pregalvanized
GTiN
00782856663850
Product UPC
78285666385
Weight
0.08 kg

Dimensions

Hole Size
0.2 in

Certifications and Compliance

Certifications
CULus
Features
  • Includes flared edges to protect piping
  • Rated for use with CPVC fire sprinkler pipe
  • Positions pipe 1-1/2\" (38 mm) off the mounting surface eliminating the need for wooden spacer blocks
  • Can be mounted in both vertical and horizontal positions on concrete, steel and wood
  • Meets the UL® 203 stringent upward thrust requirement
  • UL® Listed as both a hanger and pipe restraint
  • Complies with static load requirements of NFPA® 13
  • Includes mounting screws
  • Can be used with 3TW backing nut on composite wood joist installations
Certifications
  • UL ANSI/UL 203
  • cUL ULC/ORD-C203
