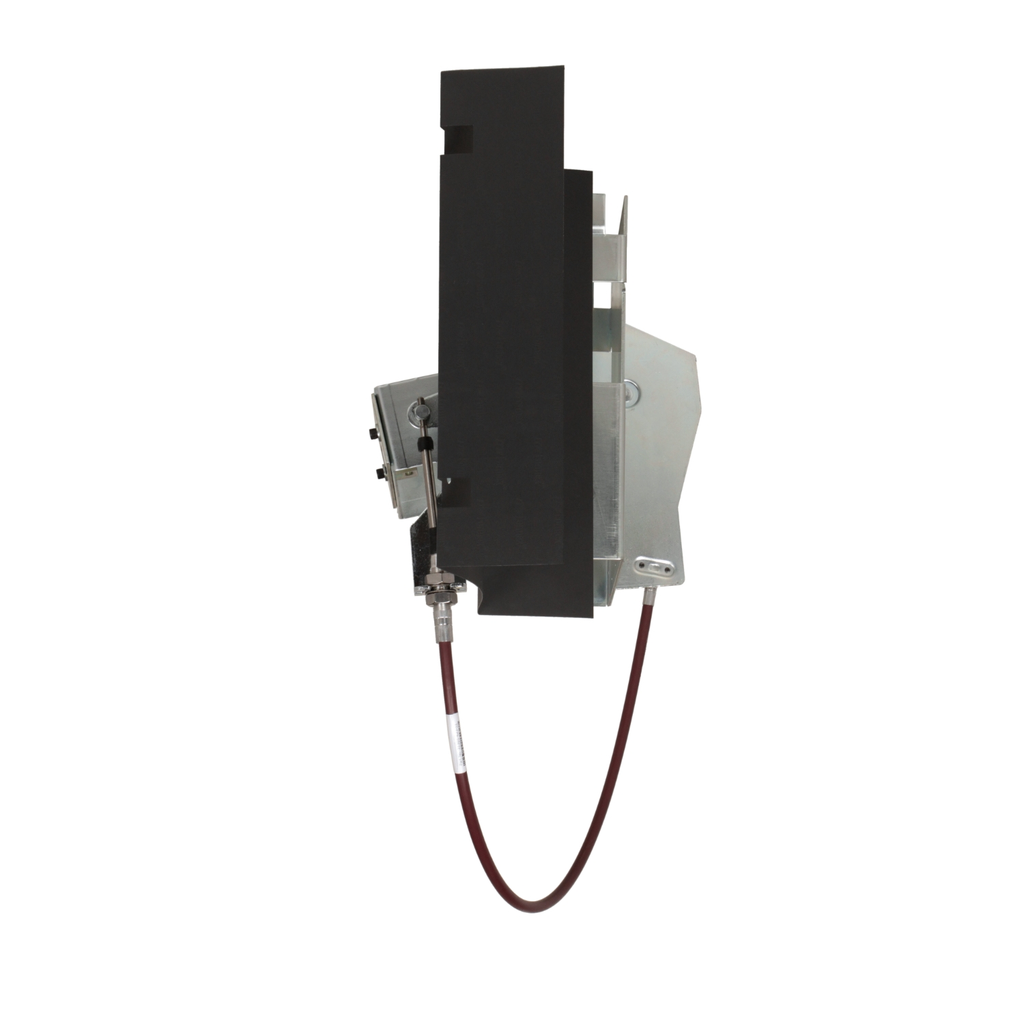

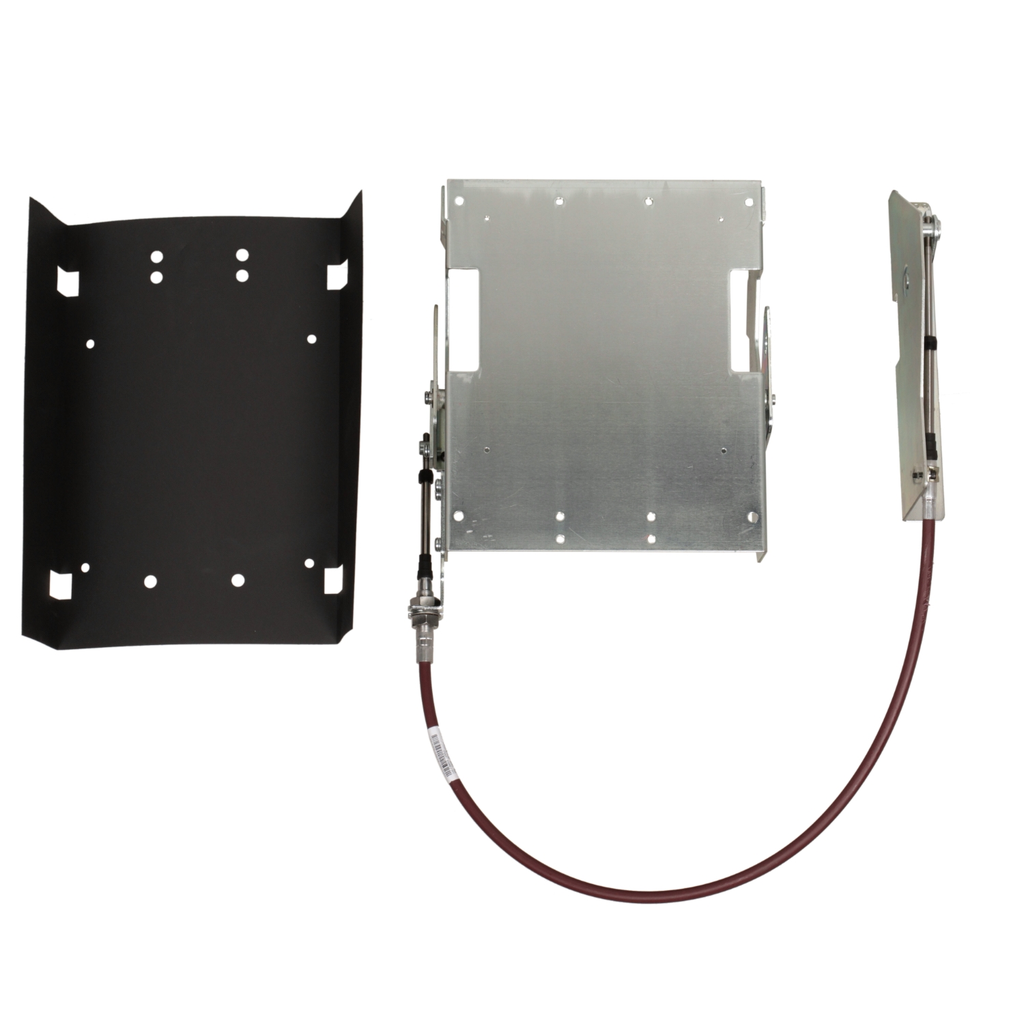

Square D 9422CMP40 NEMA Cable Operating Mechanism

Manufacturer: Square-D / Schneider | Catalog # 9422CMP40 | Cooper Electric Part # 648689
$978.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This flexible cable mechanism is for use with PowerPacT M and P circuit breakers. It has a 40 inch length cable mechanism. This product complies with UL standards.

Technical Information

Actuator
9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage
1200A MAX
Applications
SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 36 INCHES
Circuit Breaker Type
PowerPact M Or P 3
Enclosure
FLANGED
Number of Poles
3 Pole
Size
1200A FRAME SIZE
TC Connection
DIRECT
Trip Type
POWERPACT M AND P FRAME CIRCUIT BREAKERS (3-POLE) 1200A
Type
Single Cable Operating Mechanism

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901665359
GTiN
00785901665359
Product UPC
78590166535

Dimensions

Cable Length
36 in
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9422A1
  • 9422A1Y
  • 9422A2
  • 9422A3
  • 9422A4
  • 9422RB1
  • 9422RM1
  • 9422RQ1
  • 9422RS1
  • MGA36300
  • MGA36400
  • MGA36500
  • MGA36600
  • MGA36700
  • MGA36800
  • MGL36300
  • MGL36400
  • MGL36500
  • MGL36600
  • MGL36700
  • MGL36800
