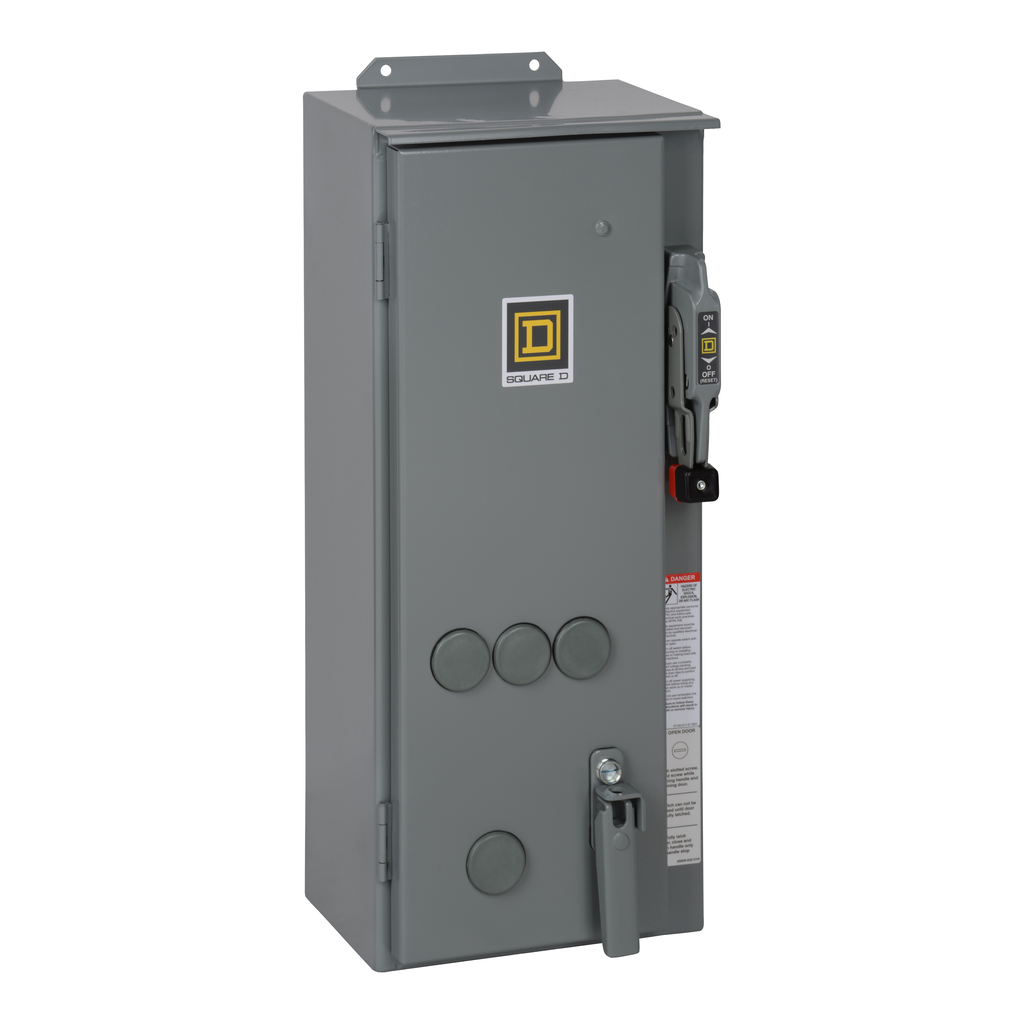

Product image for Square D 8538SBA22V02S <1000 VAC Motor Control Starter
Image thumbnail 0
Image thumbnail 1
Email

Square D 8538SBA22V02S <1000 VAC Motor Control Starter

Manufacturer: Square-D / Schneider | Catalog # 8538SBA22V02S | Cooper Electric Part # 647221
$1,686.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
NEMA size 0-6 combination starters with a fusible or non-fusible disconnect switches, efficient long-lasting LED pilot lights, and foam-in-place door seals

Technical Information

Amperage
18 Amp
Applications
USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS - DISCONNECT AND STARTER IN ONE PACKAGE
Contact Configuration
Without
Control Circuit Voltage
110 V
Disconnect Type
Fusible disconnect switch H, 30 A
Enclosure
NEMA 12
Motor Power
3 hp
NEMA Size
0
Number of Poles
3 Pole
Power Supply
120VAC@60HZ - 110VAC@50HZ
Reset Type
THERMAL - MELTING ALLOY
Size
0
TC Connection
BOX LUG
Type
Combination Starter
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901743835
Environmental Conditions
DUST TIGHT AND DRIP TIGHT (INDOOR) CAN BE MODIFIED FOR NEMA 3R
GTiN
00785901743835
Product UPC
78590174383

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
  • Robust design and reliable build for long mechanical life and electrical endurance
  • Customizable with hundreds of combinations
  • Simple catalog number for easy and fast ordering
  • Flexible with four overload relays: Motor Logic™ solid state, TeSys™ T communication solid state, Adapted Bimetal, and melting alloy types
  • Serviceable by replacing contacts and coils rather than replacing the entire product; simply service the part that is worn out.
  • Commercial Office Buildings
  • Infrastructure
  • Industrial Markets
  • Building Automation
  • Construction
