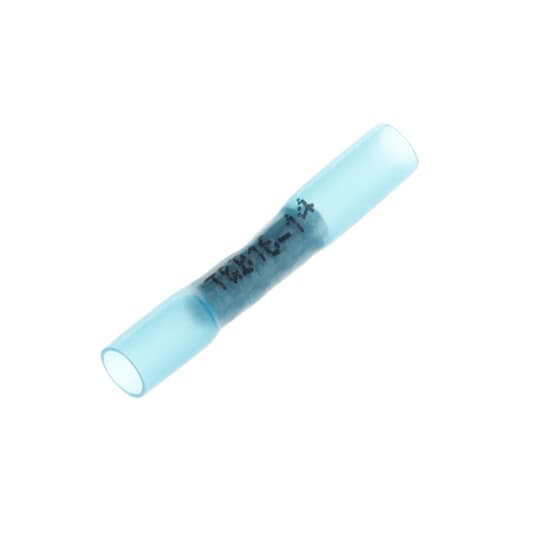

Product image for Thomas & Betts RBBS22X 1.5 Inch Length 16-14 Wire Range Heat Shrink Butt Splice
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

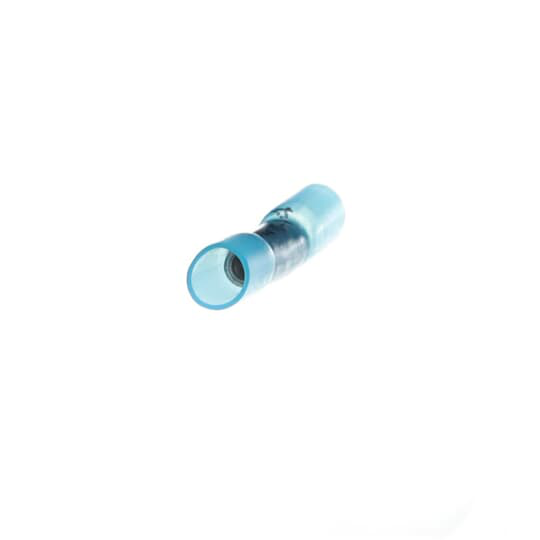

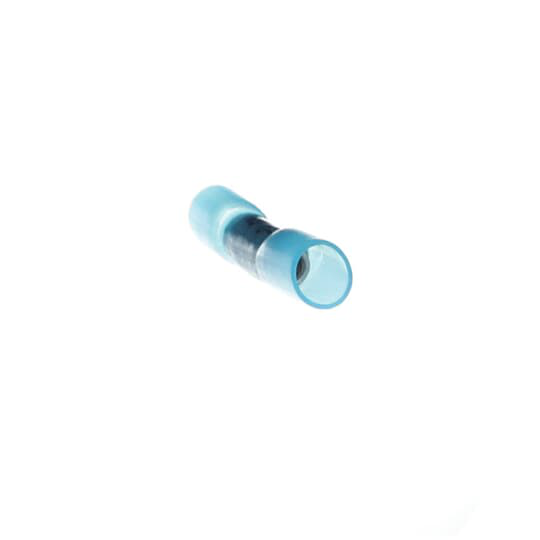

Thomas & Betts RBBS22X 1.5 Inch Length 16-14 Wire Range Heat Shrink Butt Splice

Manufacturer: ABB | Thomas & Betts | Catalog # RBBS22X | Cooper Electric Part # 646558
$214.89/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Heat Shrinkable Butt Splice, Length 1.50 Inches, Width .26 Inches, Maximum Insulation Diameter .200, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
16-14 AWG
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Standard
UL E9809
Temperature Rating
150 degrees C
Type
Self-insulated
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210223919
Color
Blue
Finish
Tin Plated
GTiN
00786210223919
Product UPC
78621022391

Dimensions

Length
1-1/2 Inch
Features
  • Self-insulated with heat-shrinkable polyolefin and internally coated sealant. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
