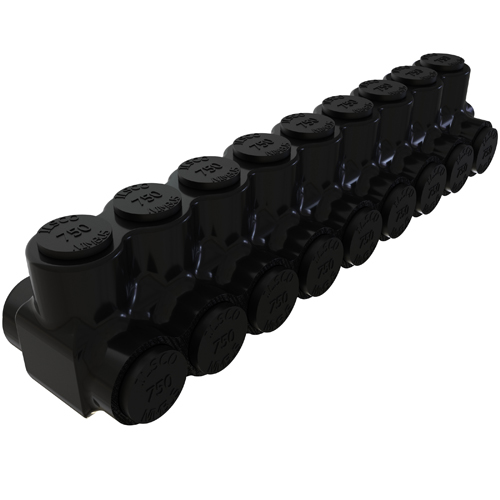

Product image for Ilsco PBTD-9-750 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 750-250, 9 Ports, Dual Sided Entry, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco PBTD-9-750 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 750-250, 9 Ports, Dual Sided Entry, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBTD-9-750 | Cooper Electric Part # 64562
$890.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 250 kcmil, Contains DE-OX®, 9 conductors, 9 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
535 Amp
Applications
Insulated Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
9
Number of Ports
9
Standard
CSA,E2186,UL
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
Two Side, PBTD, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669078800
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
GTiN
00783669078800
Product UPC
78366907880
Weight
4.504 lb

Dimensions

Height
3.26 Inch
Length
14.26 Inch
Width
3.405 in
