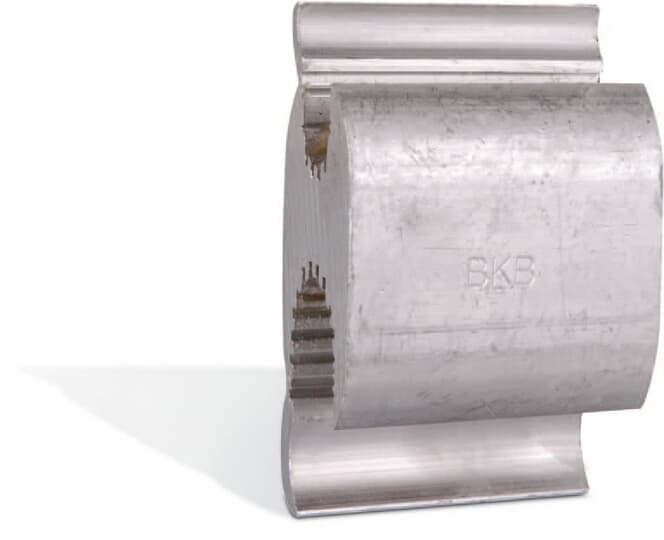

Blackburn WR815 Compression Connector

Manufacturer: Blackburn / Thomas & Betts | Catalog # WR815 | Cooper Electric Part # 644740
$23.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-4/0 ACSR, 556-250 Str., Tap: 2/0-6 ACSR, 2/0-6 Str., 3/0-6 Sol., Die: N

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 2 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Long Sleeve
Wire Size
Main: 477 (18/1)-4/0 ACSR or 556-250 STR kcmil ; Tap: 2/0-6 ACSR or 2/0-6 STR or 3/0-6 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100224
Finish
Tin Plated
GTiN
00783786100224
Product UPC
78378610022
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
2 Inch
Features
  • Fold-in tabs provide positive tab interlock as tool closes.
  • RUS accepted and complies with ANSI C119.4
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • Enables excellent connector contact without distorting the conductor's shape.
Notes
  • Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.
  • All die connectors are for use with hydraulic tools, 12-ton and greater.
  • Fig. 1
