SQD NSYCVF165M24DPF ClimaSys forced

Manufacturer: Square-D / Schneider | Catalog # NSYCVF165M24DPF | Cooper Electric Part # 644388
$137.78 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

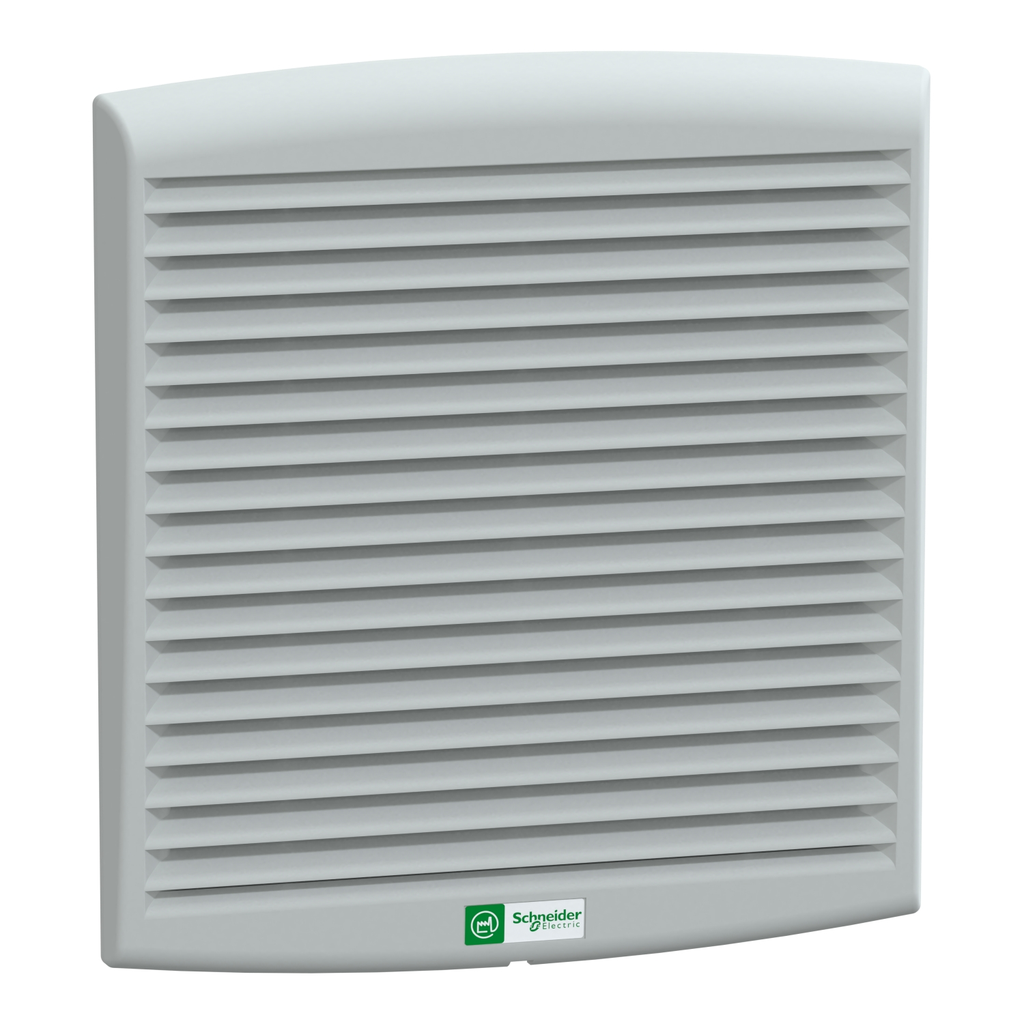

This product is a fan designed to provide reliable and efficient cooling. It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color. The fan has a ball bearing type and a maximum pressure of 50 Pa. It has a power range of 8 W and a free flow rate of 188 m3/h. It can be used in ambient air temperatures ranging from -10 to 70.C. It has a power cable and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces. It has an IP54 degree of protection and a noise level of 50-51 dB. The cut-out dimensions of the fan are 223 x 223 mm. The cut-out dimensions of the fan are 223 x 223 mm.

Technical Information

Amperage
0.3 Amp
Applications
VENTILATION
Input Voltage
24 V
Line Rated Current
0.3-0.3 A
Material
Thermoplastic
Net Weight
0.81 kg
Operating Temperature
-10-70 degrees C
Range
ClimaSys
Size
EXTERNAL 104 MM,EXTERNAL 248 MM,EXTERNAL 268 MM
Storage Temperature
-40-70 degrees C
Type
Fan

Manufacturer Information

Brand
Schneider Electric
Sub Brand
CLIMASYS CV

General Product Info

12-Digit UPC
785901863038
Color
Outlet Grille Gray RAL 7035)
GTiN
03606480151262
Product UPC
78590186303
Weight
0.81 kg

Dimensions

Depth
0 in
Height
10.55 in
Warranty Length
18 mth
Width
9.76 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
Features
  • Provides efficient and reliable cooling for various applications.
  • Made of injected thermoplastic (ASA PC) for a reliable and efficient cooling system compliant to UL 94 V-0.
  • Comes with a filter, outlet grille, and protective grilles.
  • Features an anti-insect filter for added convenience.
  • 5.Noise level between 50-51 dB for quiet operation.
  • IP54 degree of protection for superior resistance to dust and water.
  • Versatile usage in ambient air temperatures ranging from -10 to 70°C.
  • Ball-bearing type with maximum pressure of 50 Pa and power range of 7.6 W.
Accessory Products
  • NSYCAF223L55
  • NSYCAF190
  • NSYCAF125T
  • NSYCAG216X62M
  • NSYCAG130X110LM
  • NSYCAF130X110X
  • NSYCAAPV
  • NSYDPA3
  • NSYCAP223LZF
  • NSYCAP223LXF
