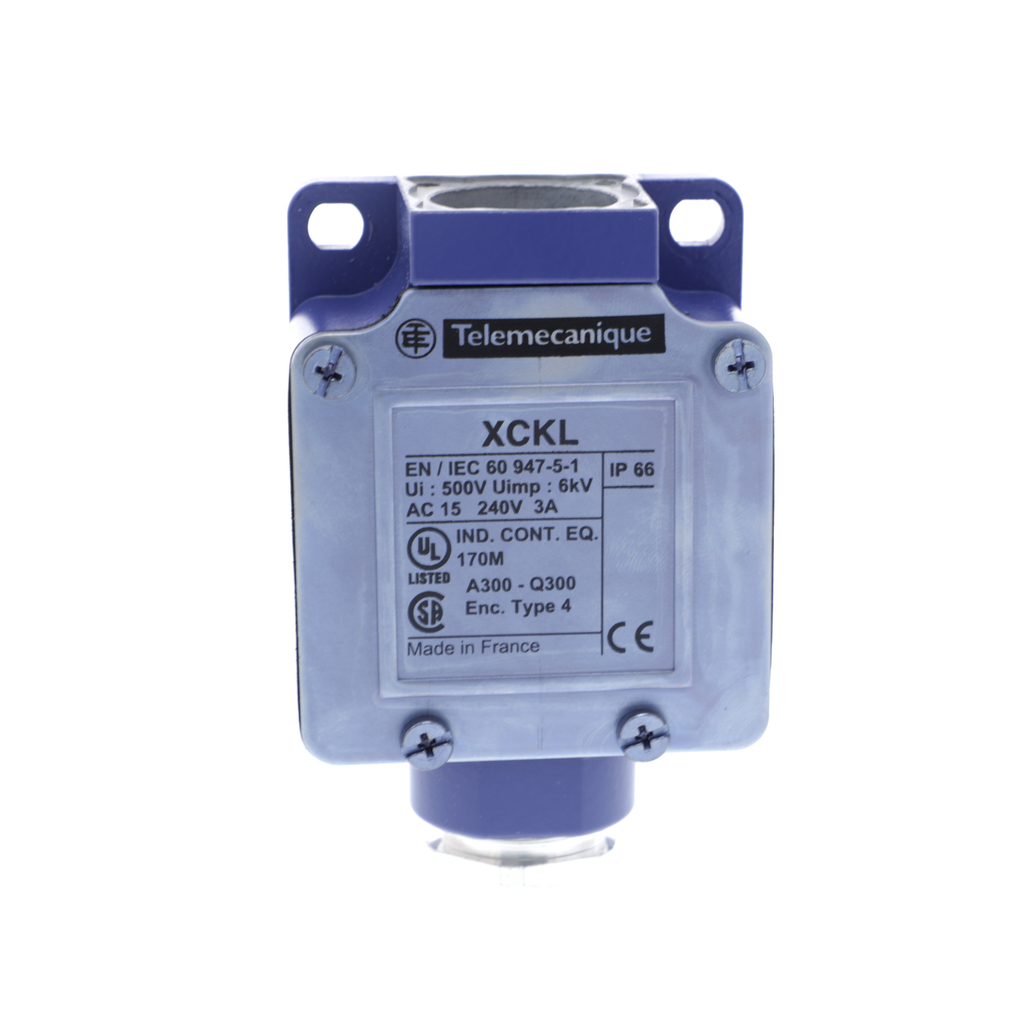

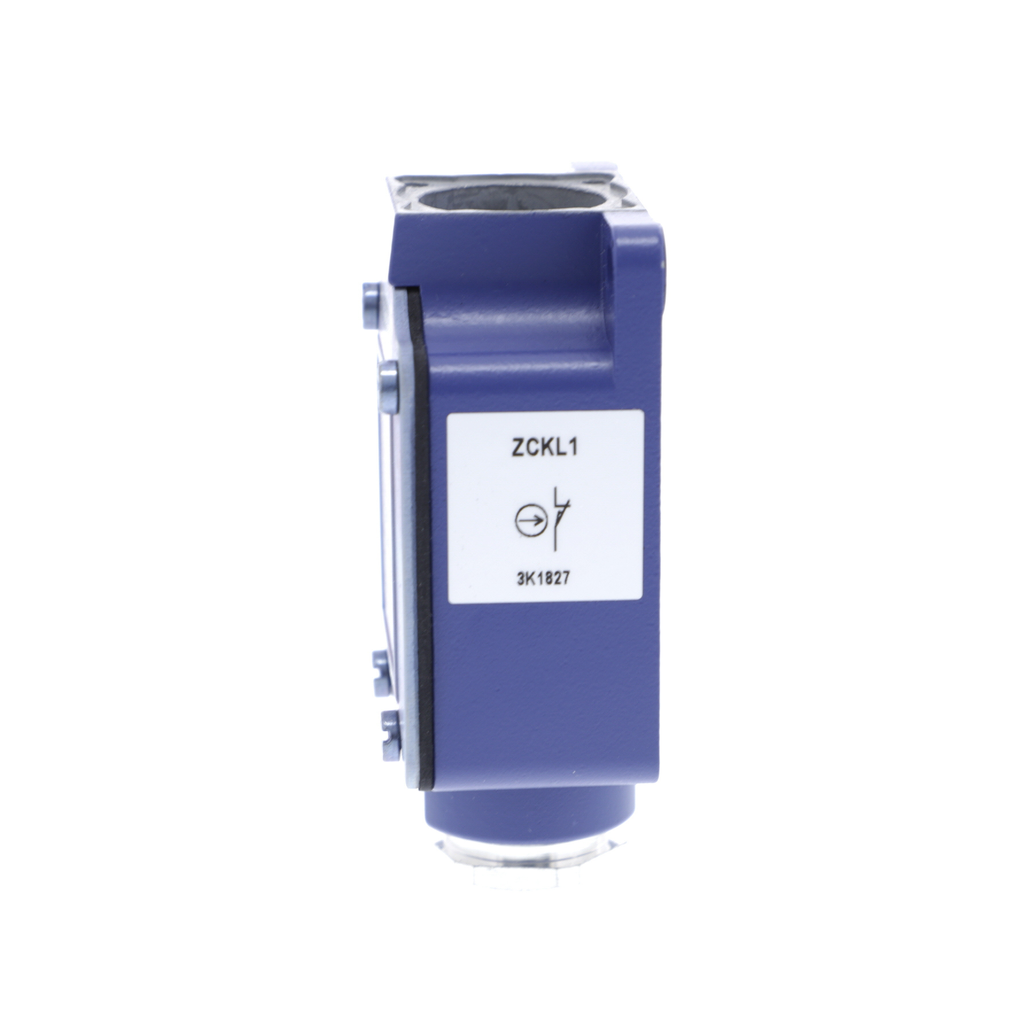

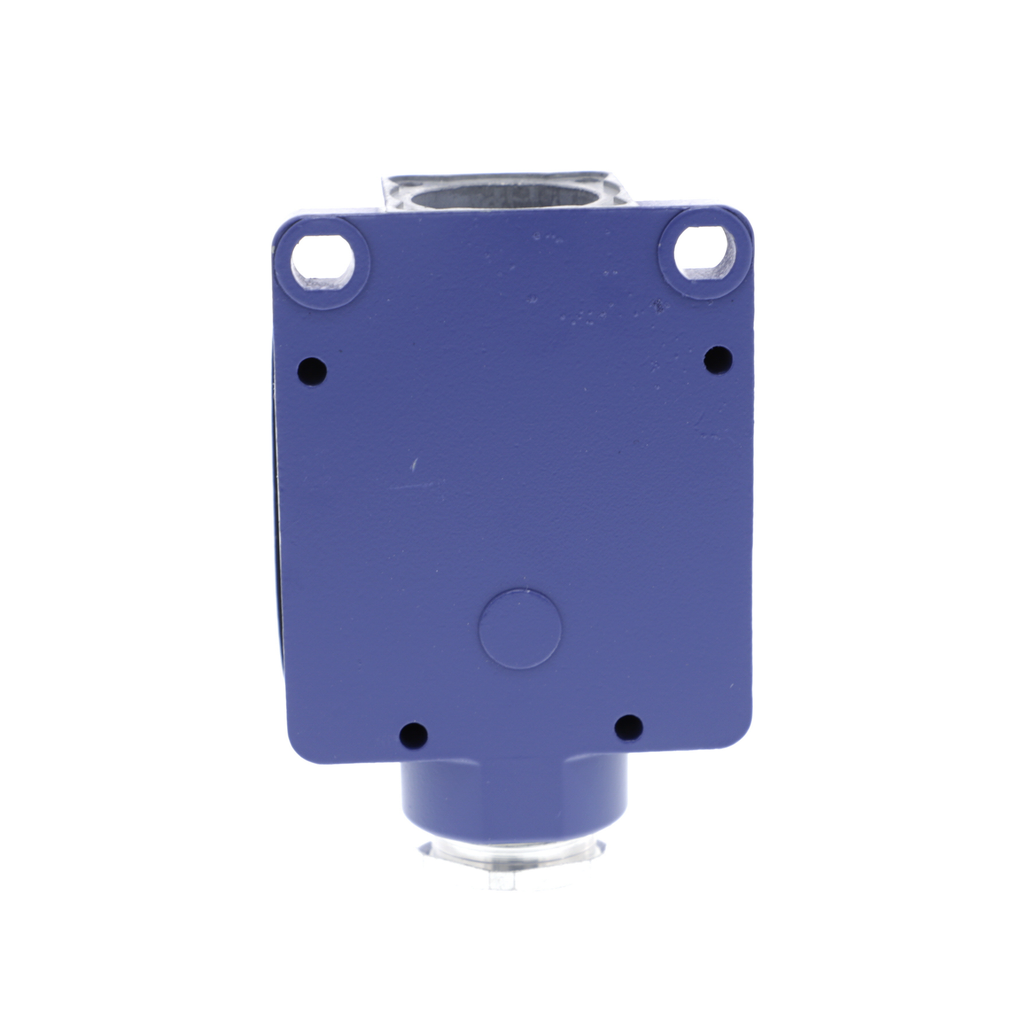

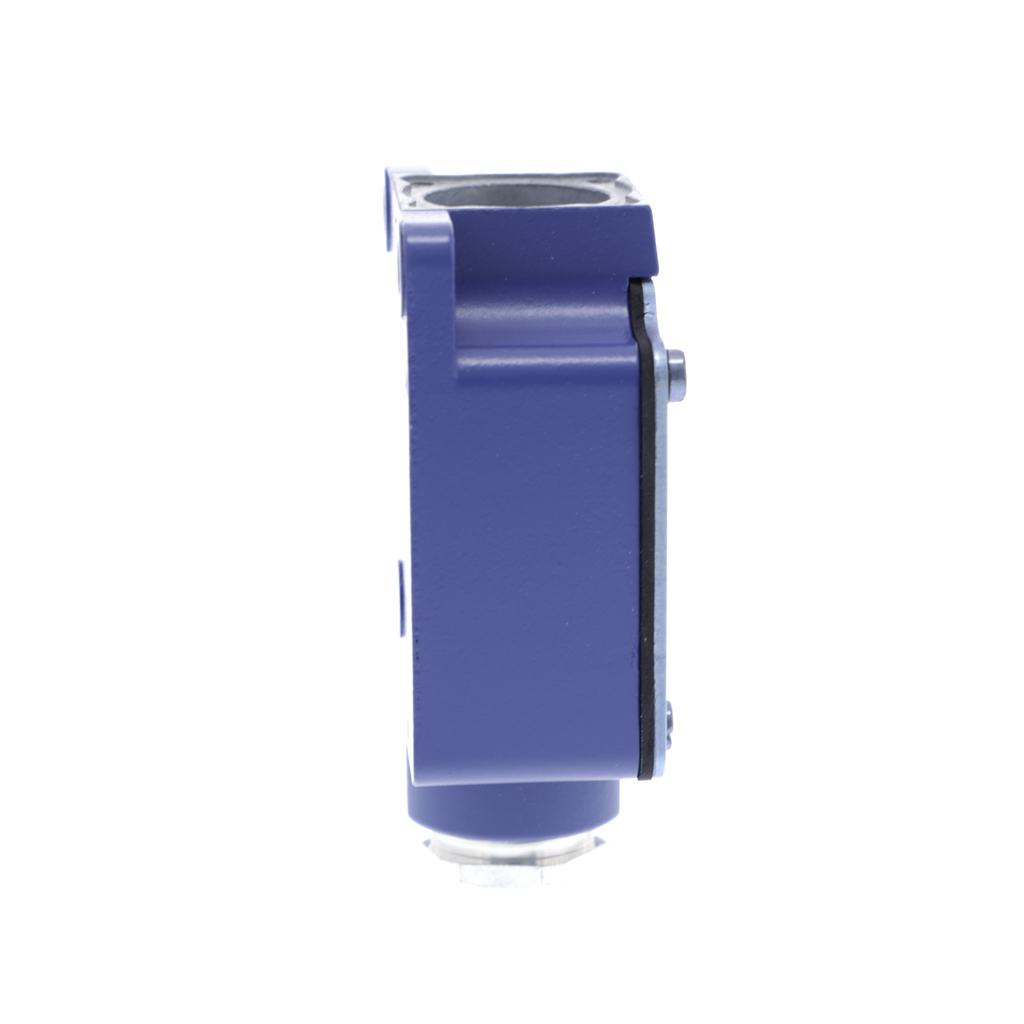

TES ZCKL1H7 Limit switch body, Limit switches XC Standard, ZCKL, 1NC+1 NO, snap action, 1/2"NPT

Manufacturer: TES Electric | Catalog # ZCKL1H7 | Cooper Electric Part # 644208
$136.05/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
135 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This ZCK body/contact assembly with connector has a Zamak body. It has 1 x NO + 1 x NC snap action contacts and multiple1/2" NPT cable entries. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Technical Information

Action
Snap action
Amperage
10 Amp
Applications
XCKL
Body Material
Metal
Body Type
Fixed
Cable Entry
1 entry tapped for 1/2" NPT conduit
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Plated Contacts
Enclosure
IP66
Net Weight
0.21 kg
Number of Poles
2 Pole
Number of Steps
1 1
Operating Cycles
5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C STANDARD ENVIRONMENT
Size
1.18 in
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA
Type
Limit switch body
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
ZCKL

General Product Info

12-Digit UPC
389110646149
Environmental Conditions
STANDARD ENVIRONMENT
GTiN
03389110646146
Product UPC
78590146670
Weight
0.46 lb

Dimensions

Depth
30 mm
Height
72-72 mm
Warranty Length
18 mth
Width
52 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
