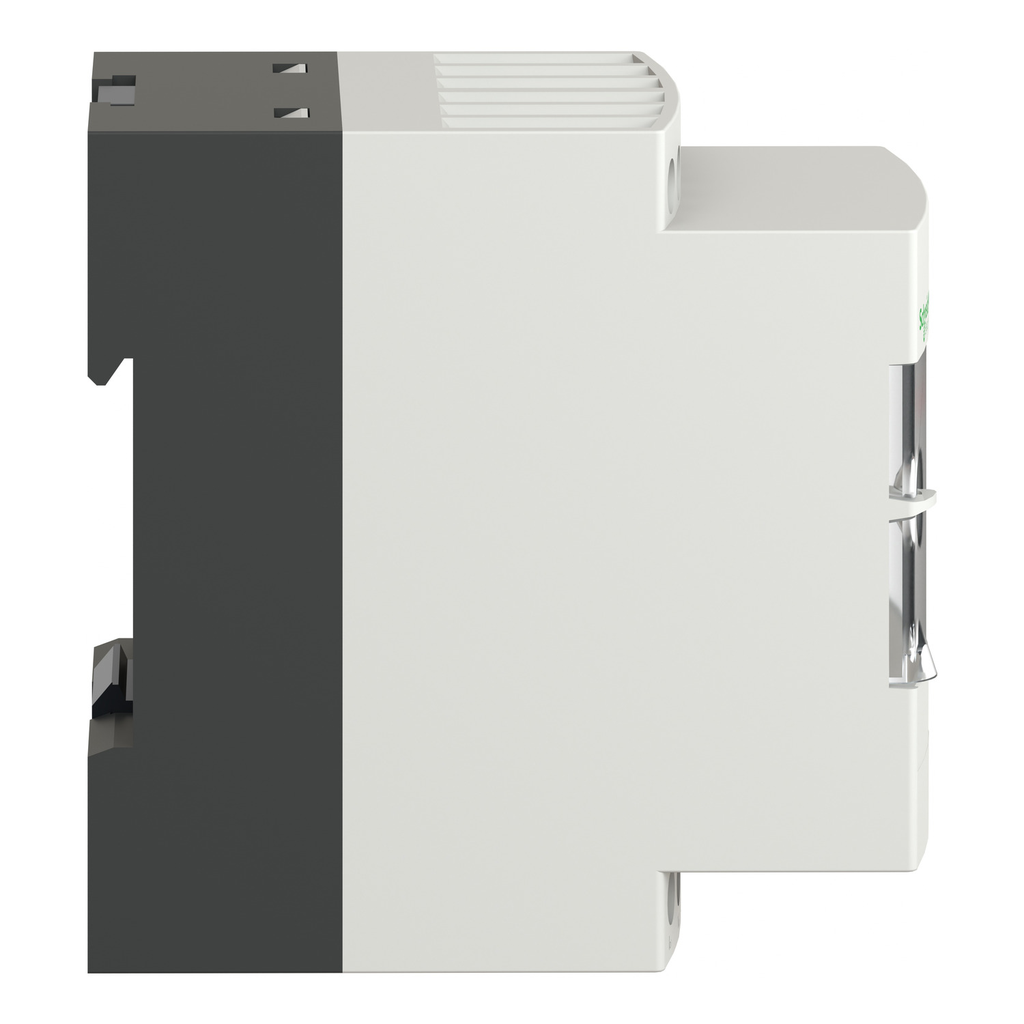

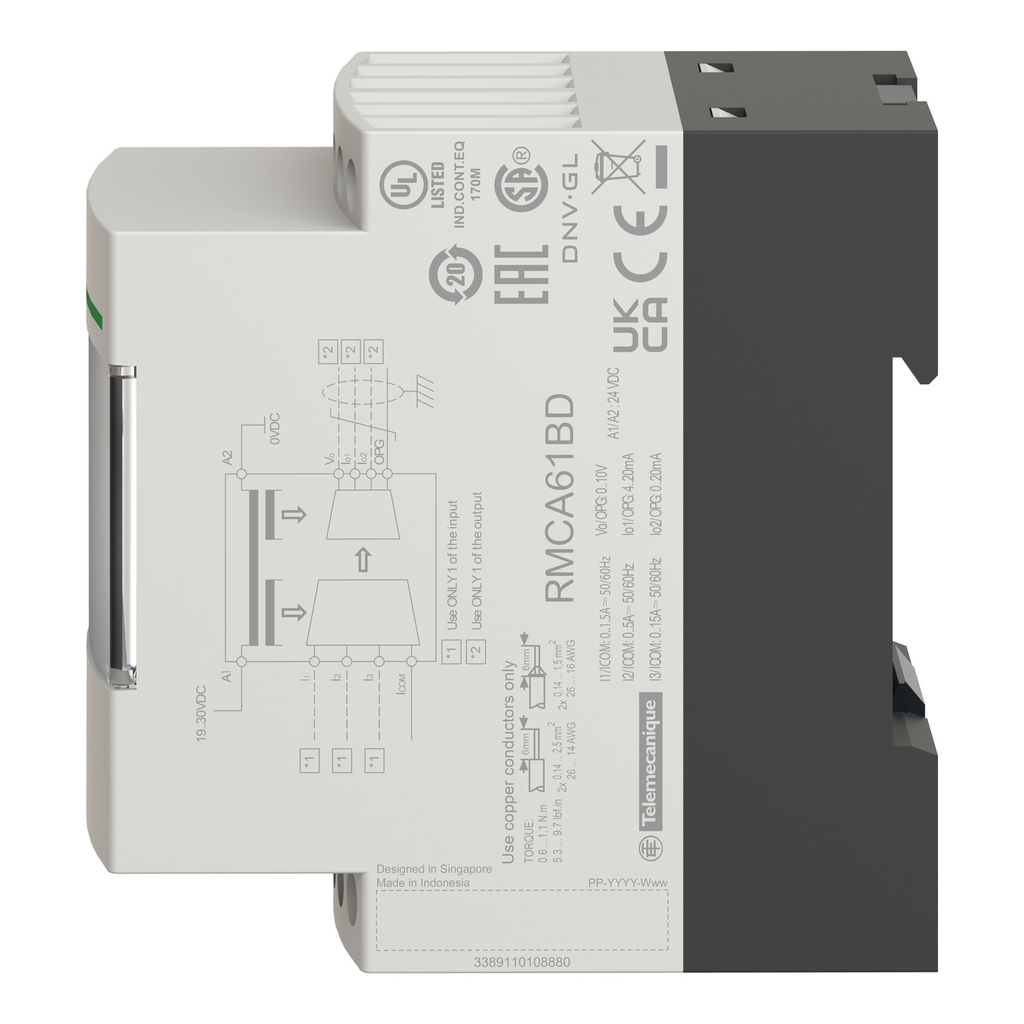

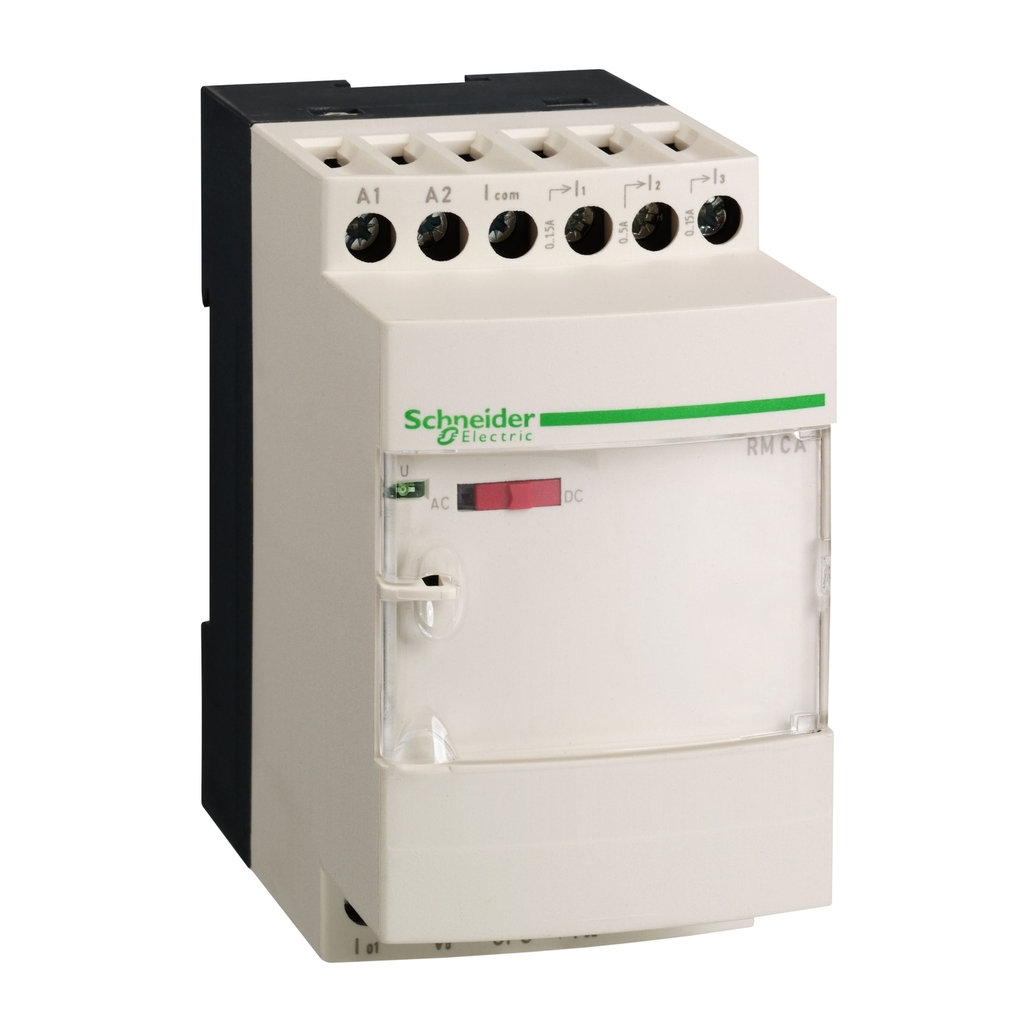

Square D RMCA61BD Isolated ANALOG CONVERTER MODULE RMC

Manufacturer: Square-D / Schneider | Catalog # RMCA61BD | Cooper Electric Part # 644194
$182.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This voltage/current converter is part of the Harmony Analog range. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs with a range of 0A to 1.5A, 0A to 5A, 0A to 15A (AC/DC). It has outputs with a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.140Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0 0 0 0

Technical Information

Current
70 mA
Enclosure
IP50
Net Weight
0.15 kg
Operating Temperature
0-50 degrees C Mounting Side By Side || 0-60 degrees C 2 Cm Spacing
Output
-15...0 V NO INPUT OR INPUT WIRE BROKEN,-30-0 MA 0...20 MA NO INPUT OR INPUT WIRE BROKEN-4-30 MA 4...20 MA NO INPUT OR INPUT WIRE BROKEN,CURRENT 0...20 MA <= 500 OHM BY CABLING-CURRENT 4...20 MA <= 500 OHM BY CABLING-VOLTAGE 0...10 V >= 100 KOHM BY CABLING
Power Supply
24 V DC
Standard
IEC 60584-1,IEC 60947-1
Storage Temperature
-40-85 degrees C
Temperature Rating
32 to 140 F
Type
Voltage/current converter

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO

General Product Info

12-Digit UPC
389110108883
GTiN
03389110108880
Product UPC
78590189950
Weight
0.15 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,GL,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
