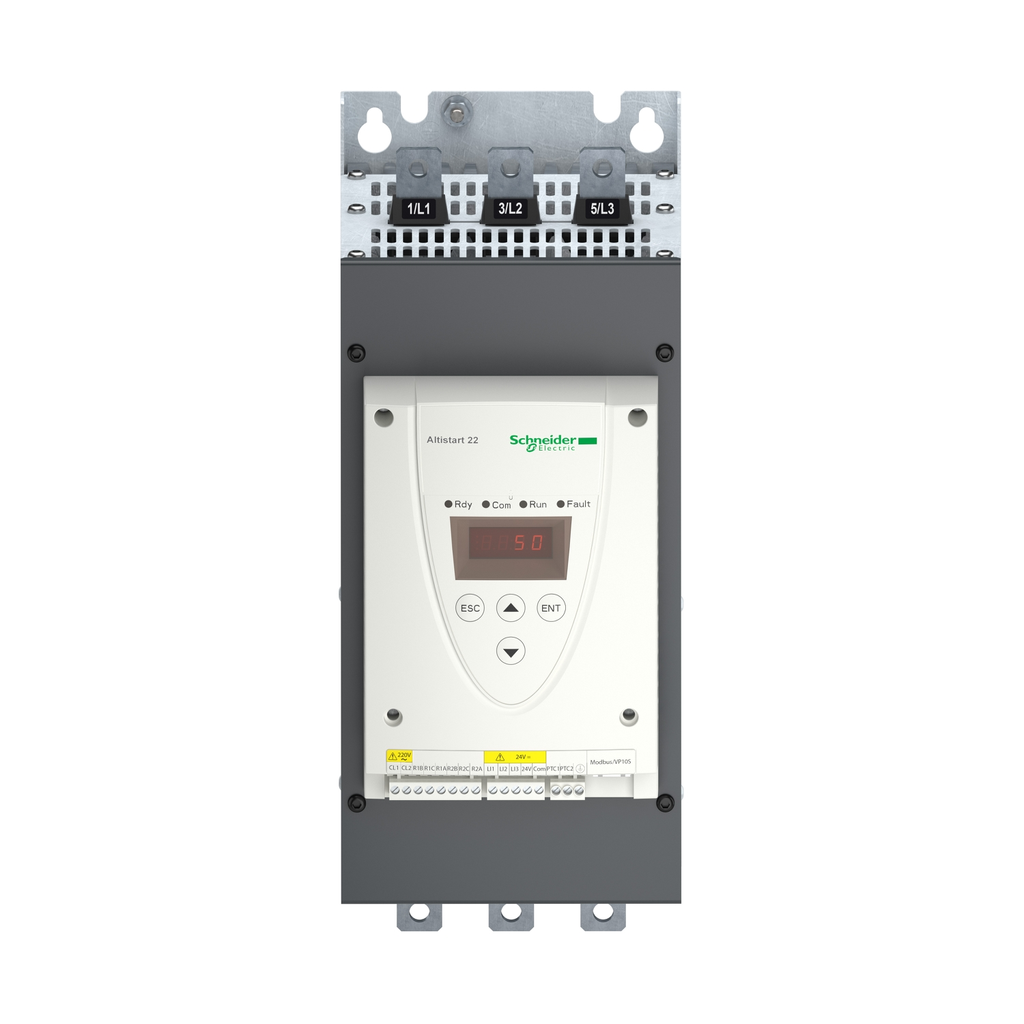

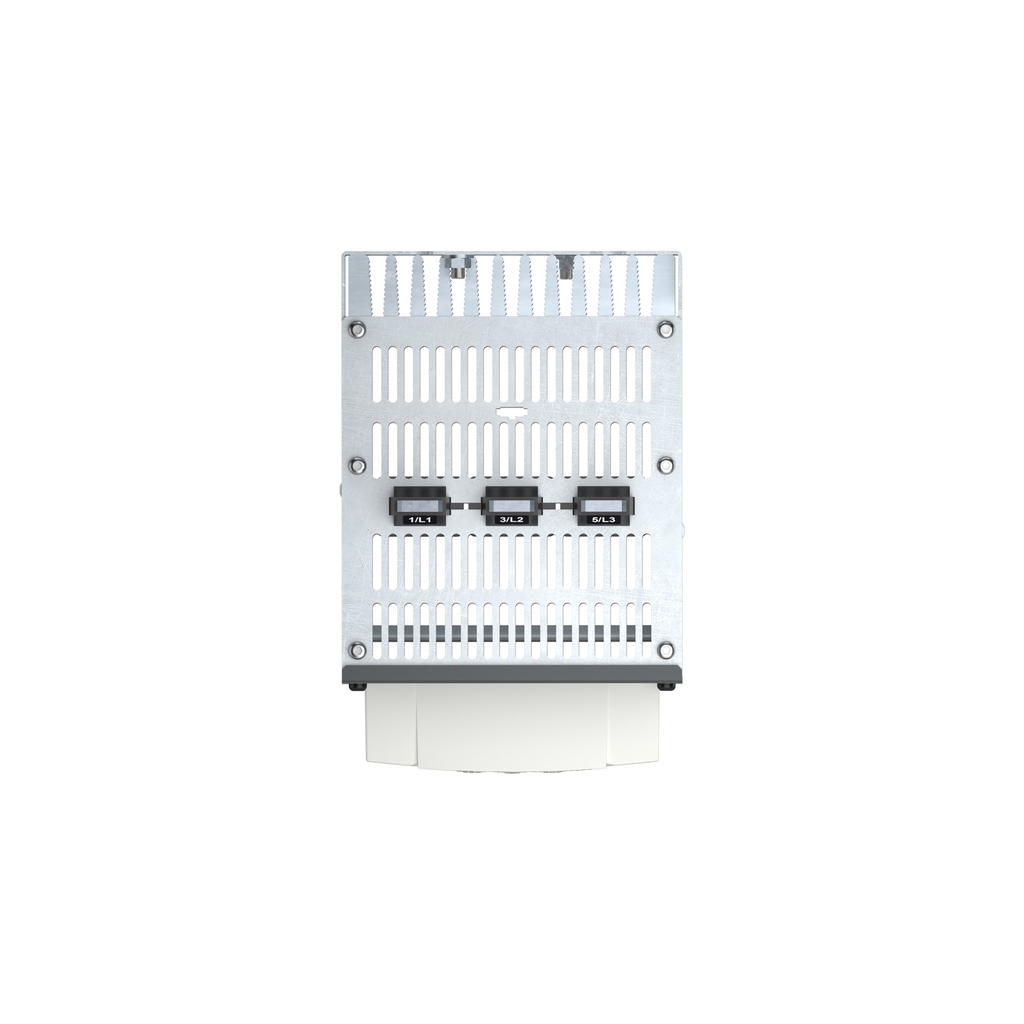

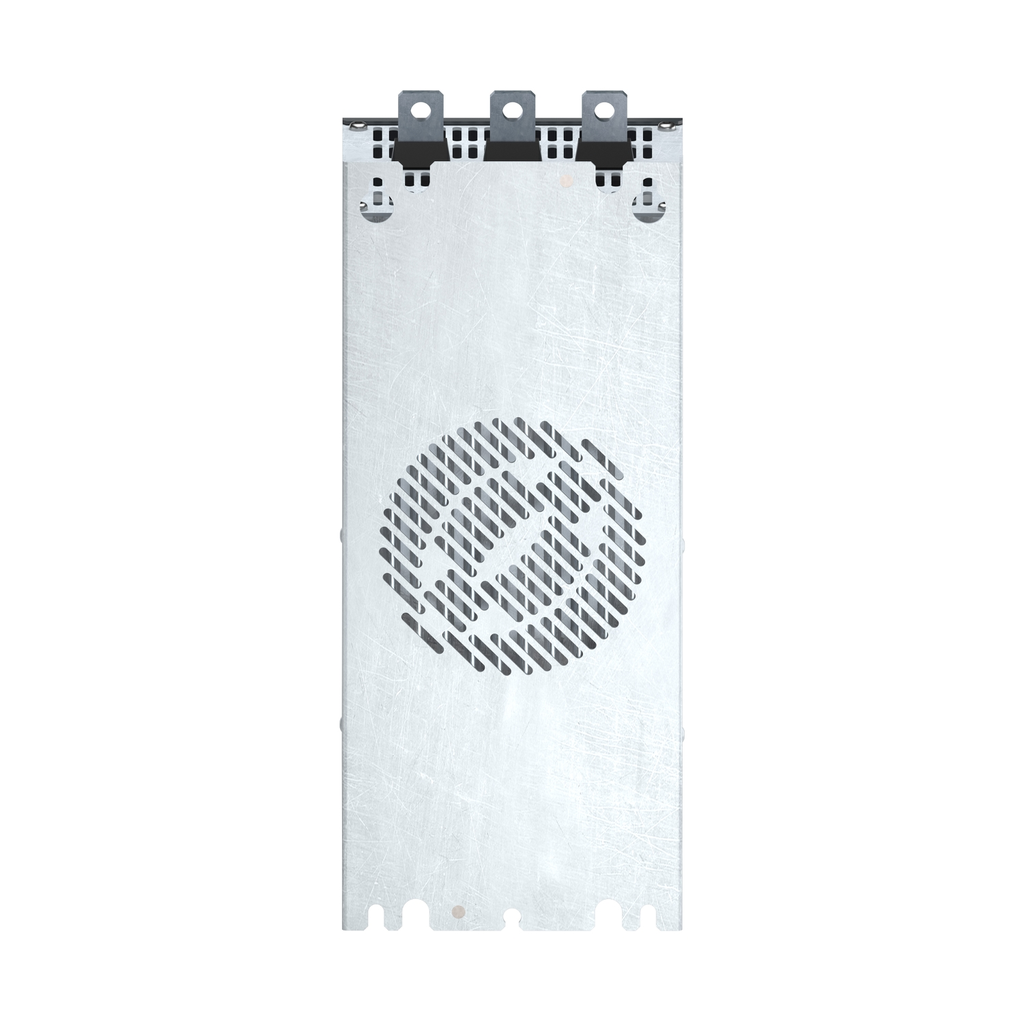

Product image for Square D ATS22C11S6U Soft Start Unit 3PH 208-600VAC 110VCNTRL,110AMP
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Square D ATS22C11S6U Soft Start Unit 3PH 208-600VAC 110VCNTRL,110AMP

Manufacturer: Square-D / Schneider | Catalog # ATS22C11S6U | Cooper Electric Part # 644165
$1,997.67/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 110A, a rated power from 30HP to 100HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Technical Information

Amperage
110A
Applications
ASYNCHRONOUS MOTORS
Connection Type
1 RJ45
Connector Type
1 RJ45
Enclosure
IP20
Net Weight
18 kg
Number of Phases
3 Phase
Operating Temperature
-10...40 degrees C WITHOUT DERATING-> 40...< 60 degrees C WITH CURRENT DERATING 2.2 PER degrees C
Power Supply
208...600 V - 15...10 ,50...60 HZ - 10...10
Size
9.04 in
Standard
IEC 60947-4-2
Storage Temperature
-25-70 degrees C
Type
Soft starter
Voltage
177-660 Volt,50...60 HZ-10...10

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ALTISTART 22

General Product Info

12-Digit UPC
360648016741
GTiN
03606480167430
Product UPC
78590182572
Weight
18 kg

Dimensions

Depth
9.02 in
Height
14.02 in
Warranty Length
18 mth
Width
5.91 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CCC,CSA,GOST,UL
Country of Origin
Indonesia
US Rated Supply Voltage
  • 208...600 V - 15...10 %
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000844_3D-CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=ATS22C11S6U_2D&p_File_name=ATS22C11S6U_2D.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=ATS22C11S6U_2D&p_
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Type
  • LI1, LI2, LI3) logic, 5 mA 20 kOhm
UC Control Circuit Voltage
  • 110 V - 15...10 % 50/60 Hz
Related Products
  • VW3G22U402
  • VW3G22101
Maximum Switching Current
  • 5 A 250 V AC resistive 1 relay outputs
  • 5 A 30 V DC resistiv
Protection Type
  • phase failure line
  • thermal protection motor
  • thermal protection starter
Discrete Input Voltage
  • 110 V <= 121 V
Maximum Horse Power Rating
  • 100 hp 575 V
  • 30 hp 208 V
  • 40 hp 230 V
  • 75 hp 460 V
Vibration Resistance
  • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
  • 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
  • 1.5 mm (f= 2-1
Electromagnetic Compatibility
  • conducted and radiated emissions level A conforming to IEC 60947-4-2
  • damped oscillating waves level 3 conforming to
Supply Frequency
  • 50...60 Hz - 10...10 %
Relative Humidity
  • 0-95 % without condensation or dripping water IEC 60068-2-3
Accessory Products
  • LA9F702
Minimum Switching Current
  • 100 mA 12 V DC relay outputs)
Operating Altitude
  • <= 3280.84 ft (1000 m) without derating
  • > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
  • > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % p
Discrete Input Logic
  • positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA
  • positive l
ICL Starter Rating
  • 110 A connection in the motor supply line for standard applications
Output Current
  • 0.4...1 Icl adjustable
Discrete Output Type
  • relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
  • relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, rea
Shock Resistance
  • 15 gn 11 ms IEC 60068-2-27
Power Dissipation In W
  • 73 W for standard applications
Ambient Air Temperature For Operation
  • -10-40 °C (without derating)
  • 40-60 °C (with current derating 2.2 % per °C)
