3M 7000006390 3M™ Fire Barrier Tuck

Manufacturer: 3M | Catalog # 7000006390 | Cooper Electric Part # 640841
$151.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure

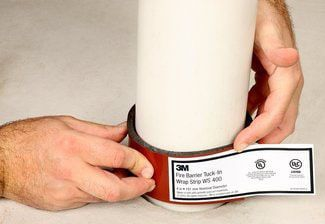

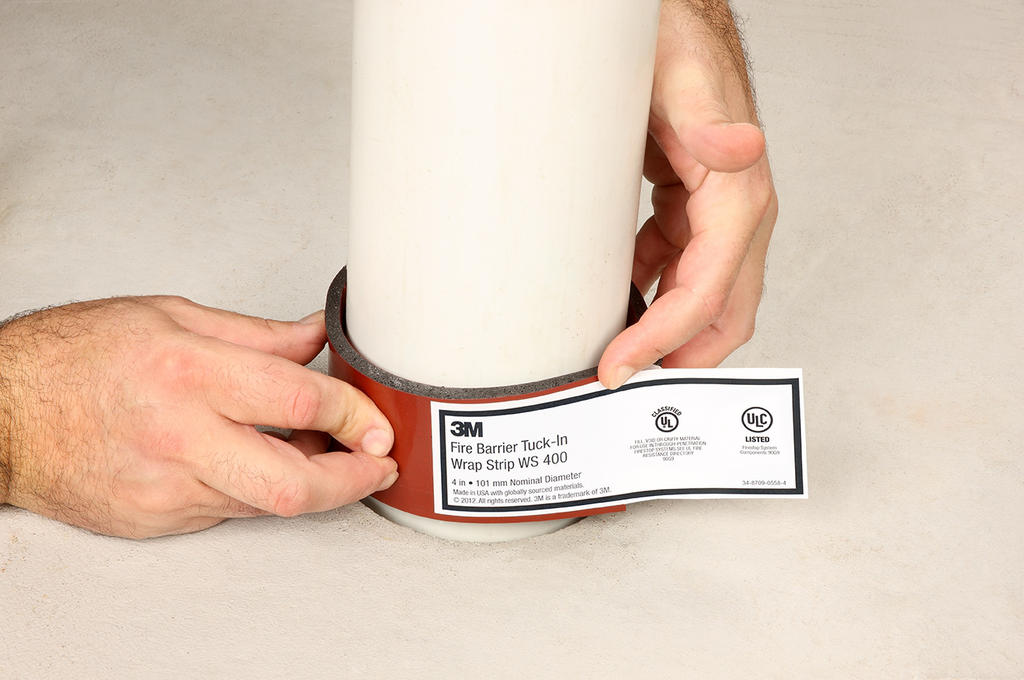

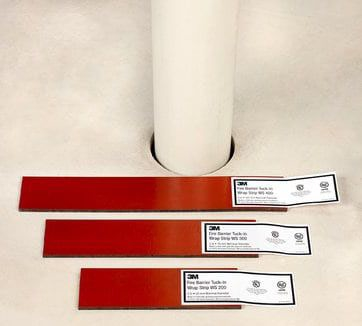

3M™ Fire Barrier Tuck-In Wrap Strips are intumescent wrap strips that are primarily used in top-side firestop installations. We engineered these fire wrap strips to help eliminate the need for retaining collars, concrete screws, ladders etc. saving time and labor. They are flexible around pipe, to fill tough areas and gaps and come with an adhesive-backed label for quick installation.

Technical Information

Applications
Primarily used for armoured cable but can be use for nonmetallic sheathed cable.
Type
Flat, Multi-Purpose

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051115188213
Color
Red
GTiN
00051115188213
Product Type
Tuck-In Wrap Strip
Product UPC
05111518821
Shape
Roll

Dimensions

Length
8.2 Foot
Overall Length
8.2 ft
Thickness
0.187 in
Width
2-1/2 in

Certifications and Compliance

Country of Origin
USA
Additional Information
  • Thickness 3/16 Inch
  • Nominal Diameter 6 Inch
  • Installation Hole Size 8 Inch
  • Color Gray with Red Liner
  • Fire Resistance 1 to 3 Hour
  • Temperature Rating 550 Deg F
  • Expansion Volume 100x
  • Application PVC, CCPVC and FRPP Plastic Pipe Penetrating Through Concrete Floor, Block and Concrete Wall, Gypsum Stud Wall
  • Applicable Standard ASTM E814, IBC, NFPA 101/5000
Features
  • Engineered for Top-Side, Firestop, Through-Penetration Installations
  • Helps Eliminate the Need for Retaining Collars, Concrete Screws, Saving Time and Labor
  • UL Tested and Fire-Rated for up to 3 Hours
  • Flexible Foam Strips Wrap Around Pipe to Fill Tough Areas and Gaps
  • Adhesive-Backed Label Offers Quick Installation
  • Expands 100x in Volume
