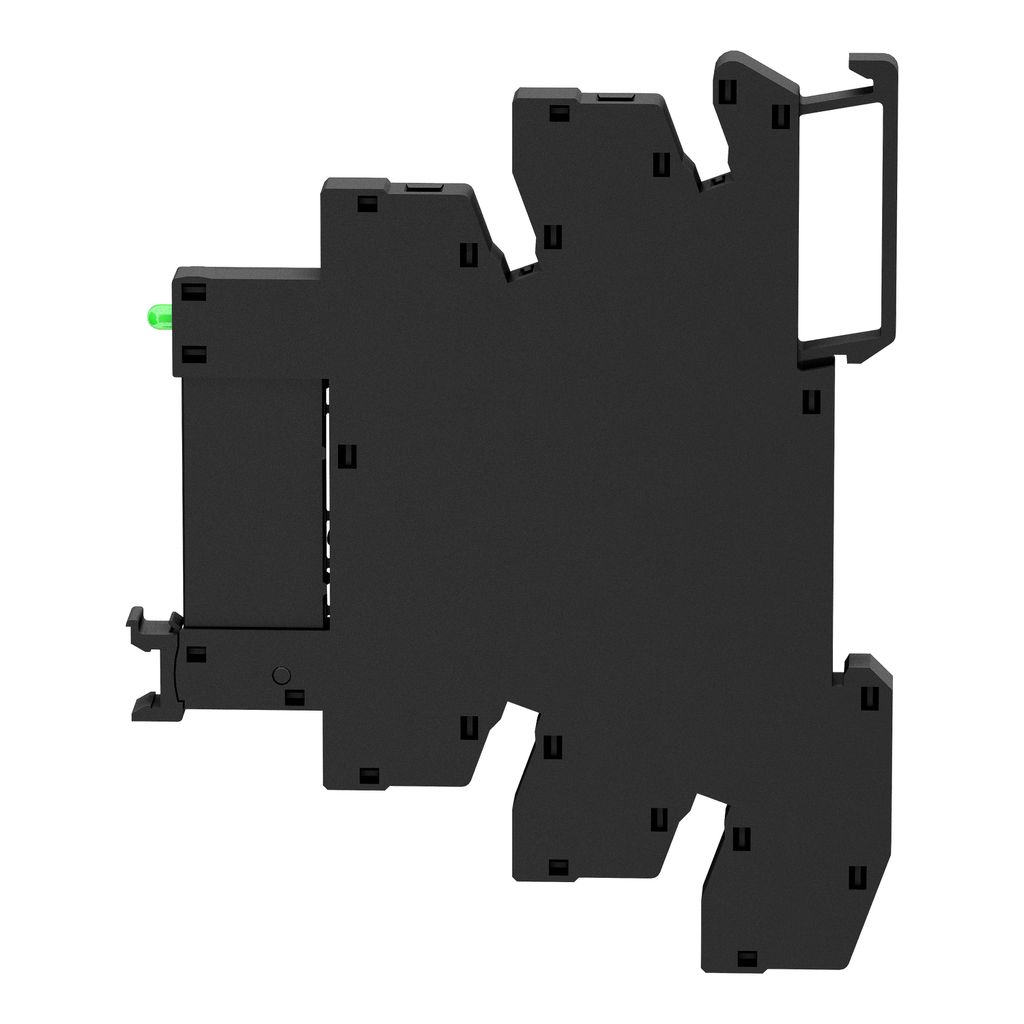

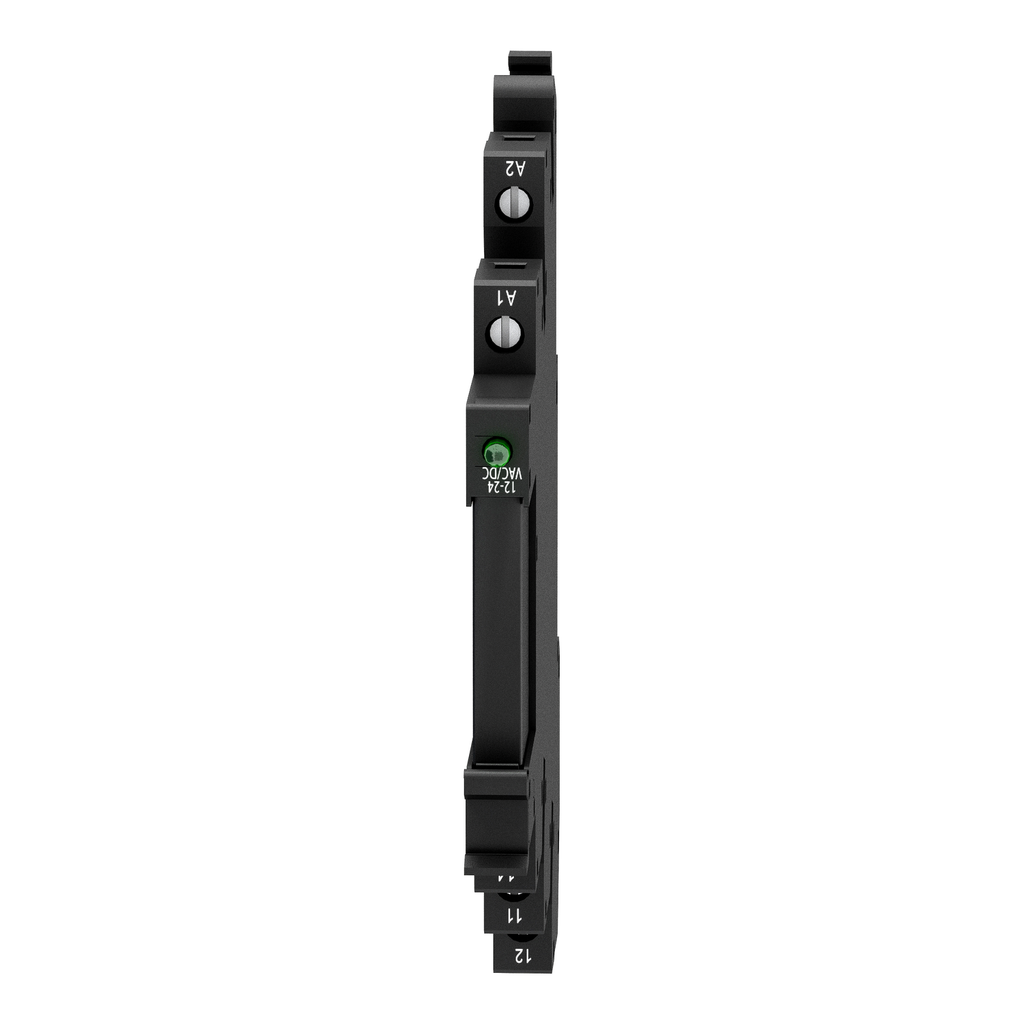

Square D RSL1PVFU 110 VAC/VDC 6 Amp 1NO 1NC Din Rail/Socket Mount Slim Interface Relay

Manufacturer: Square-D / Schneider | Catalog # RSL1PVFU | Cooper Electric Part # 640723
$21.45/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
29 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
6 Amp 1 C/O AC-1/DC-1)IEC/UL,6 Amp 250 V AC 0.5 MM MOUNTING DISTANCE
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Dielectric Strength
1000 V
Input Voltage
110 V
Line Rated Current
6 A
Net Weight
0.029 kg
Operating Cycles
<= 360 Cycles/hour Under Load,<= 72000 Cycles/hour No-load
Operating Temperature
-40-70 Adegrees C
Resistance
20500 OHM (DC) AT 23 C +/- 10
Size
6.2 MM,78.6 MM,95 MM
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
SCREW CONNECTORS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW CONNECTORS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) SOLID WITHOUT CABLE END
Type
FLAT (PCB TYPE),PLUG-IN RELAY

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSL

General Product Info

12-Digit UPC
360648007787
GTiN
03606480077852
Product UPC
78590183474
Weight
0.029 kg

Dimensions

Depth
3.74 in
Height
3.09 in
Warranty Length
18 mth
Width
0.24 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CSA,GOST,UL
Country of Origin
China
Connections Terminals
  • screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • screw conne
IE Rated Operational Current
  • 6 A 1 C/O AC-1/DC-1)IEC/UL
Test Levels
  • level A group mounting
IP Degree Of Protection
  • IP40 conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0
Load Current
  • 6 A 250 V AC 0.5 mm mounting distance
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.060543066469731316
  • 0.1 kg CO2 eq.
Operating Time
  • 5 ms reset
  • 12 ms
UC Control Circuit Voltage
  • 110 V AC/DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.3 kg CO2 eq.
  • 0.2653537573903386
UI Rated Insulation Voltage
  • 250 V IEC
  • 277 V cUL
Electrical Durability
  • 60000 cycles resistive, 6 A 250 V, AC-1
Vibration Resistance
  • 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6
  • 10
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 3 kg CO2 eq.
  • 3.302161647782238
ITHE Conventional Enclosed Thermal Current
  • 6 A -40-55 °C
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Input Voltage
  • 110 V AC/DC 88...126.5 V)
Dielectric Strength
  • 1000 V AC between contacts
  • 4000 V AC between coil and contact
Terminals Description ISO N 1
  • (A1-A2)CO
  • (11-12-14)OC
Carbon Footprint Of The Distribution Phase A4
  • 0.014662169004271046
  • 0 kg CO2 eq.
Tightening Torque
  • < 0.5 N.m M2.5
Average Resistance
  • 20500 Ohm DC 23 °C +/- 10 %
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operating Rate
  • <= 72000 cycles/hour no-load
  • <= 360 cycles/hour under load
Maximum Switching Capacity
  • 1500 VA
  • 150 W
Shock Resistance
  • 10 gn 11 ms) in operation IEC 60068-2-27
  • 5 gn 11 ms) not operating IEC 60068-2-27
  • 5 gn 11
Average Coil Consumption
  • 0.17 W, DC
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC
