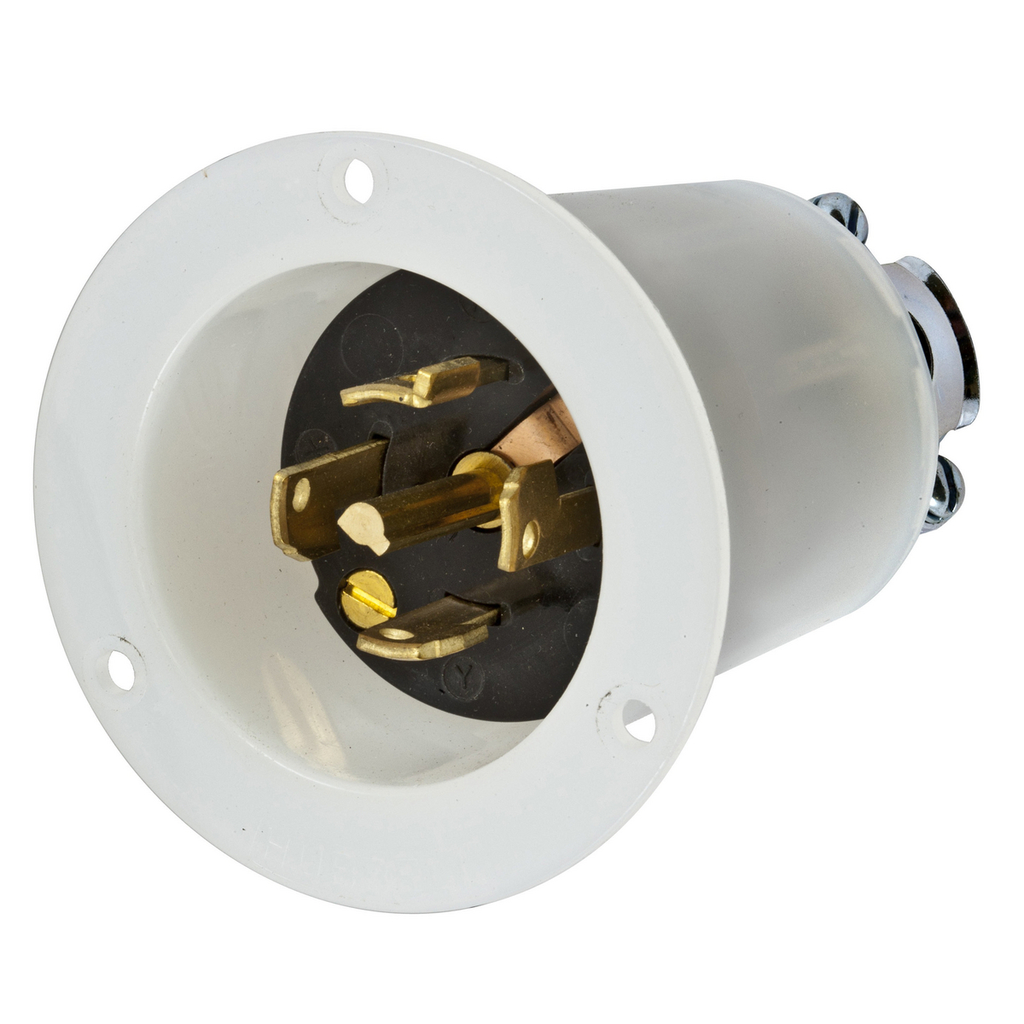

Hubbell HBL45985CL Locking Flanged-INLT, VARILOAD, 4P5W, 20A120/208V

Manufacturer: Hubbell Wiring Device | Catalog # HBL45985CL | Cooper Electric Part # 636088
$242.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Variload®, Flanged Inlet, 20A 3-Phase 120/208V AC- 400Hz, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, White Nylon, Unique Center Pin.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial Grade
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Standard Sized
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
5
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Variload®

General Product Info

12-Digit UPC
783585238203
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585238203
Product UPC
78358523820
Weight
0.45 lb

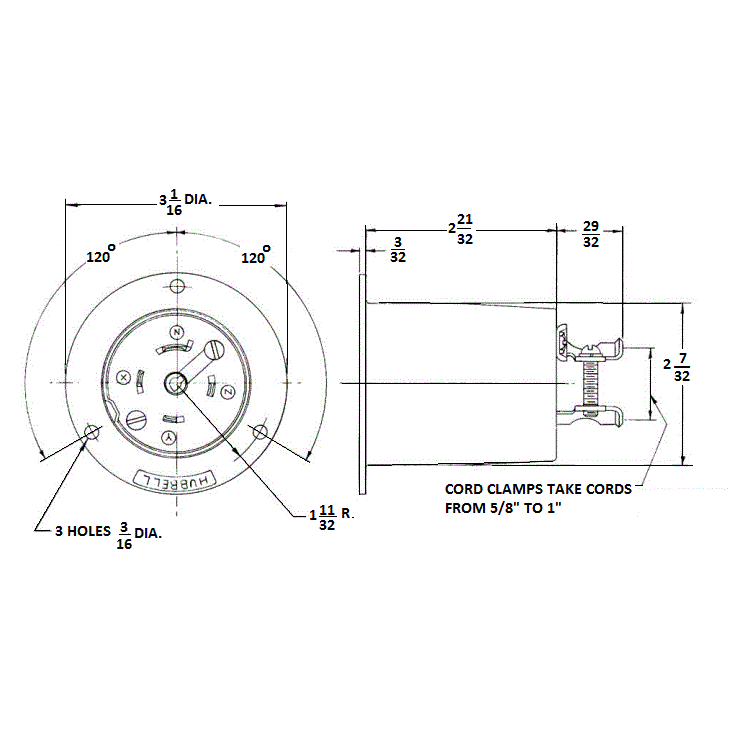

Dimensions

Height
3.64 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • VariLoad
  • Flanged Inlet
  • 20A 3-Phase 120/208V AC- 400Hz
  • Unique Center Pin
