TES XU9M18MB230 Photoelectric sensors XU, XU9, polarised, Sn 2 m, 24...240VAC/DC, cable 2 m

Manufacturer: TES Electric | Catalog # XU9M18MB230 | Cooper Electric Part # 634648
$220.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

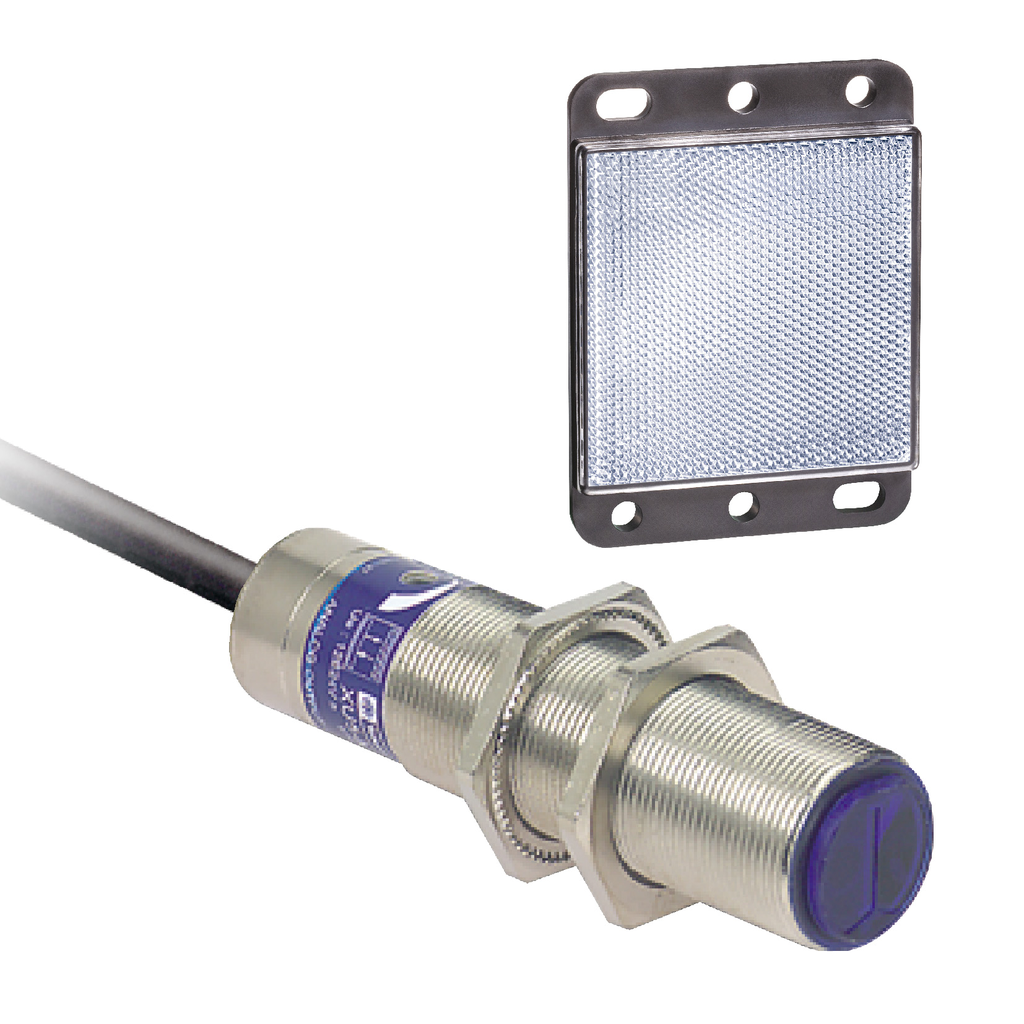

This photo-electric sensor is part of the XU Application range. It is recommended for building and tertiary sectors. This sensor has a design 18 format body, pre-cabled. This sensor is pre-cabled, 2m, with the line of sight along case axis. 2-wire AC or DC supply, NC function. Solid-state output with adjsutable sensitivity. 2m sensing distance. Polarized reflex system. A 50mm x 50mm reflector is provided with this sensor.

Technical Information

Amperage
10...200 MA-BE USED WITH 0.4 Amp QUICK-BLOW FUSE IN SERIES WITH THE LOAD)
Applications
-
Enclosure
IP67 CONFORMING TO IEC 60529,NICKEL PLATED BRASS
Enclosure Material
Brass
Material
Metal
Net Weight
0.095 kg
Operating Cycles
<= 25 Hz
Operating Temperature
-25-55 degrees C
Output
1 NC;Solid state;Discrete
Sensing Range
2-2 M POLARISED REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M)
Size
0.71 in
Storage Temperature
-40-70 degrees C
TC Connection
CABLE
Type
Polarised reflex;Photo-electric sensor;Cylindrical M18;General purpose single mode
Voltage
24...240 Volt AC/DC

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
389110735874
GTiN
03389110735871
Product UPC
78590134895
Weight
0.21 lb

Dimensions

Cable Length
2 m
Diameter
18 mm
Length
95 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
France
