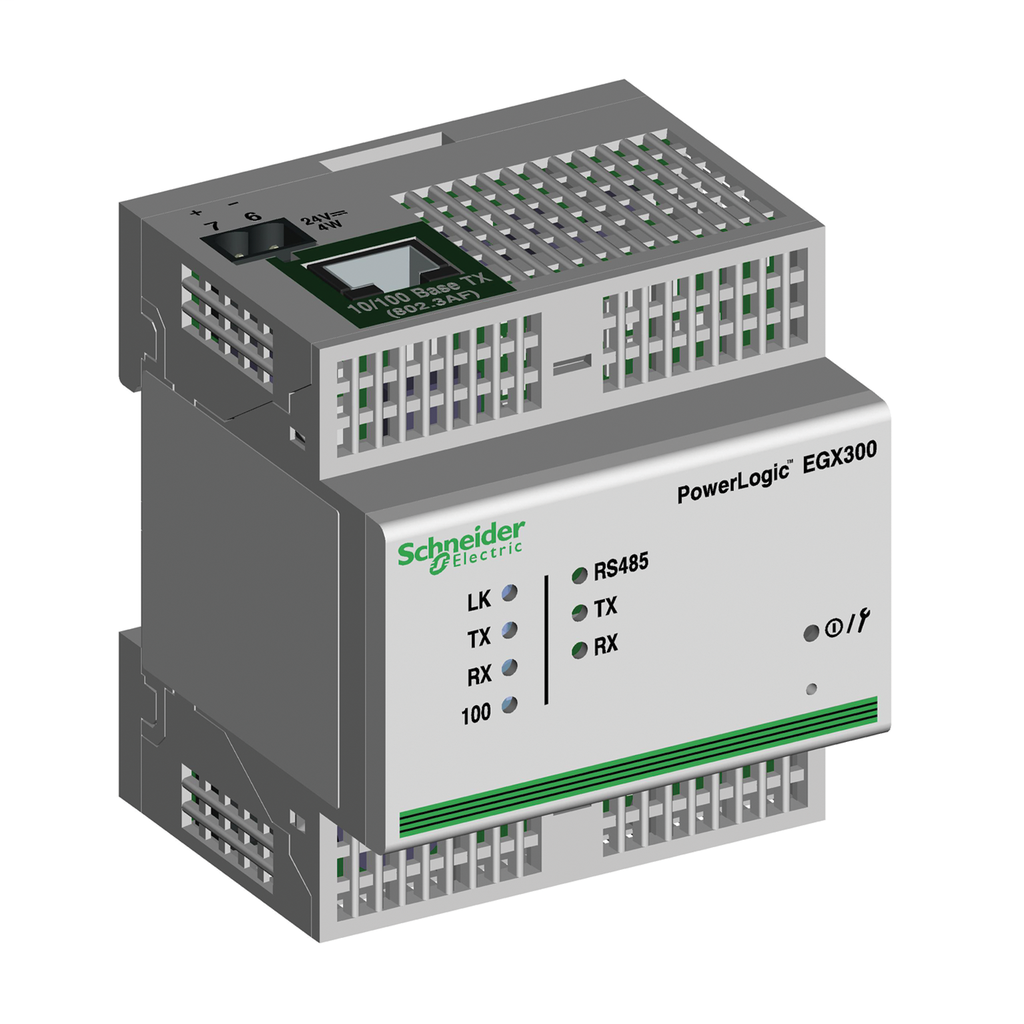

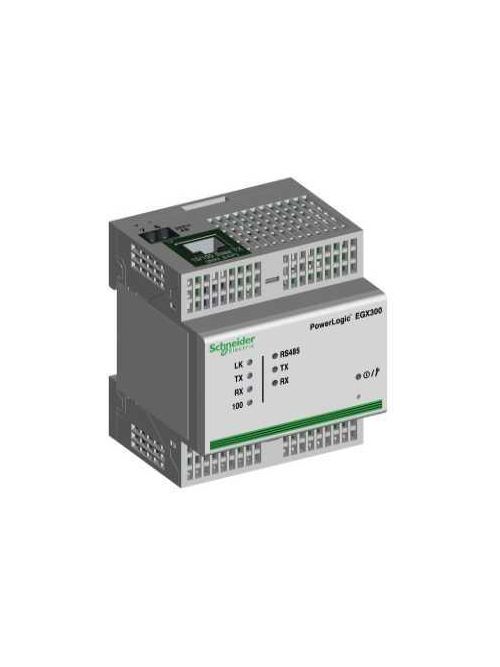

Square D EGX300 24 VDC 4 W 80.8 x 72 x 65.8 mm Ethernet Gateway with Embedded Server

This device is an integrated gateway-server that can collect information from up to 64 PowerLogic system devices. Replaced by ComX 510 (commercial reference EBX510). The embedded web service provide user interface for log and to display real-time data and trend plots. This service enable the visibility of other gateway devices on the same network and any other communicating device operating under the Modbus RS 485 protocol. This web page function can use the 256 Megabyte of onboard memory to create pages for viewing data from your electrical system. The user can store third-party web pages and documents such as instruction bulletins or equipment and system diagrams in this same memory. Can be connected to network through Ethernet, or RS232/485. It received IEC60950 certification. Power supply available 24 VDC. The gateway can be DIN rail mounted in a modular enclosure. Product dimensions are as follows: width 72 millimetres, depth 65.8 millimetres, height 80.8 millimetres and product weight 170 g.
